Commodore CDTV PSU Adaptor
£20.83 Excl. VAT

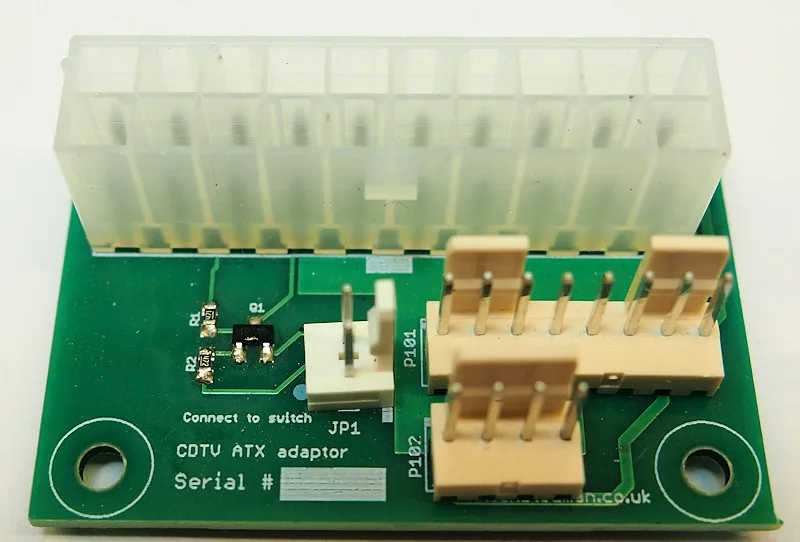

Commodore CDTV PSU his has been designed to allow you to replace the existing power supply inside the CDTV. You can use a regular or picoPSU ATX power supply.
Does not include any PicoPSU.or ATX PSU
Designed and built by Ian Stedman
Email me when stock is available
Related products
Amiga PicoPSU Adaptor – A500, A600, A1200
Amiga PicoPSU Adaptor suitable for the A500/A600/A1200. The right angled connector provides a lower profile. You can operate the unit using a toggle or push to make switch.
A 90W PicoPSU power supply, with a 60W mains adaptor, has been sufficient to operate an Amiga 600 and Amiga 1200 with a 040 and CD-ROM.
PCB dimensions, 51x51mm
Does not include any PicoPSU.
Designed and built by Ian Stedman
Amiga ATX PSU Adaptor – A1000, A2000, A3000
Amiga ATX PSU Adaptor which can be used in an ATX tower case or inside an A1000, A1500, A2000, A3000 (Big Box) Amiga, this adapter provides the -5V and ‘Tick’ signal. For the A3000, the FAIL signal is available to use.
This is the highest rated power adapter available, it can safely handle the following power levels:
+5V @ 15A
+12V @ 8A
This yields a system power of 175W.
One DIP switch sets the power switch type, momentary (as used on ATX cases) or latching (as used on original power cases. The other DIP switch sets the ‘Tick’ frequency.
PCB dimensions, 68x41mm
Does not include any ATX PSU.
Designed and built by Ian Stedman
