Sega Triple Bypass installation service for Mega Drive / Genesis
£ 120.83 Excl. VAT
Sega Triple Bypass Installation service for Sega Mega Drive & Genesis MK1 or Mk2. Now you can have the best RGB video and audio from your Sega Mega Drive or Sega Genesis, this installation service includes a full refurbishment of your console and includes recapping.
The service includes:
- Testing of Sega Mega Drive/Genesis beforehand
- Full recapping of the mainboard

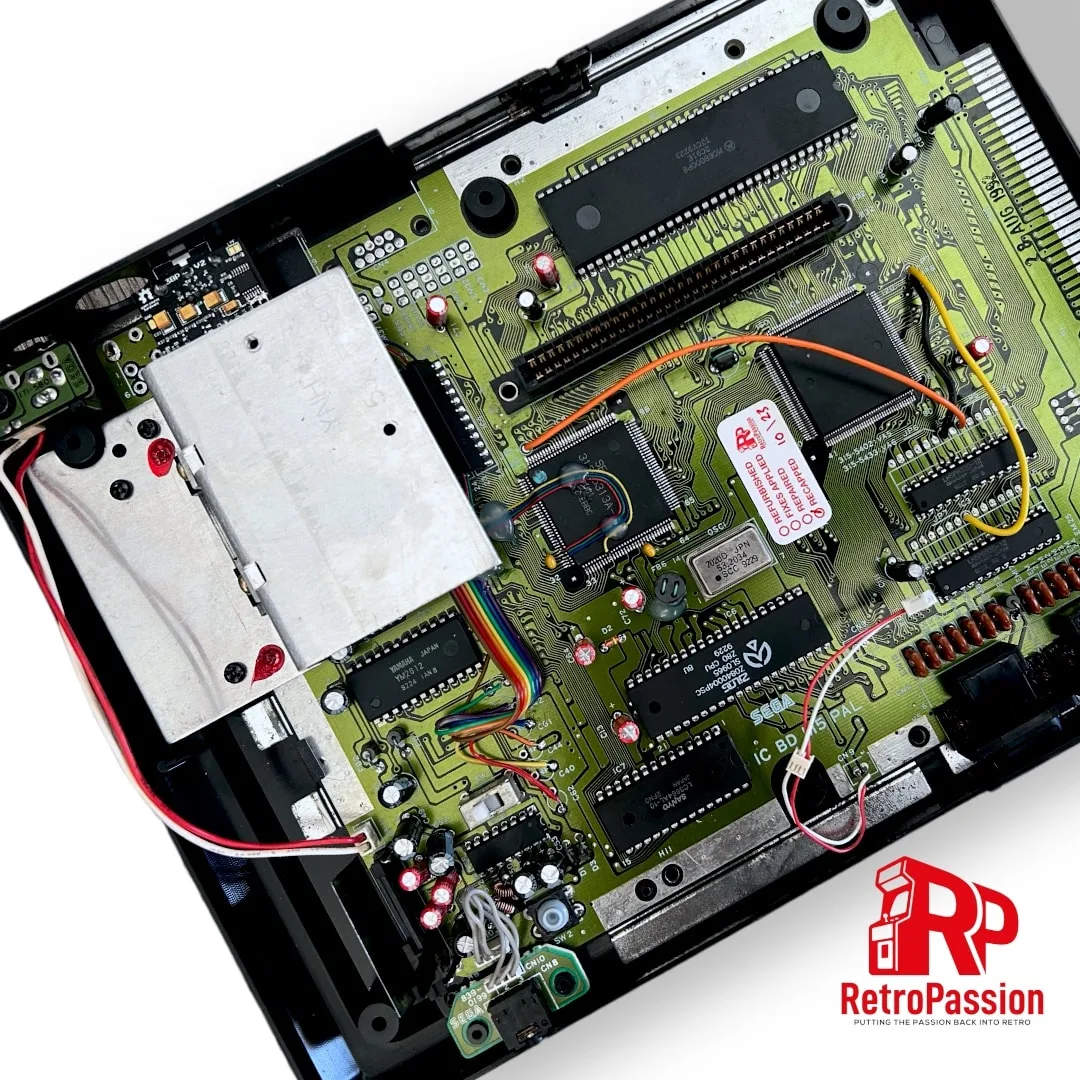

- Installation of the Sega Triple Bypass Modification for RGB
- Complete Audio modification to go through Triple Bypass – Aidio will now comeout of the mini DIN.
- Add fixes to reduce jailbars and ‘RAM’ noise (add pullup resistors and 2 capacitors)
- Final testing and video taken of unit working.
- Includes new Mini DIN to RGB Scart Lead
Overall, this is the best video and audio you will see on the beloved Sega Mega Drive/Genesis.
What is the Triple Bypass Modification?

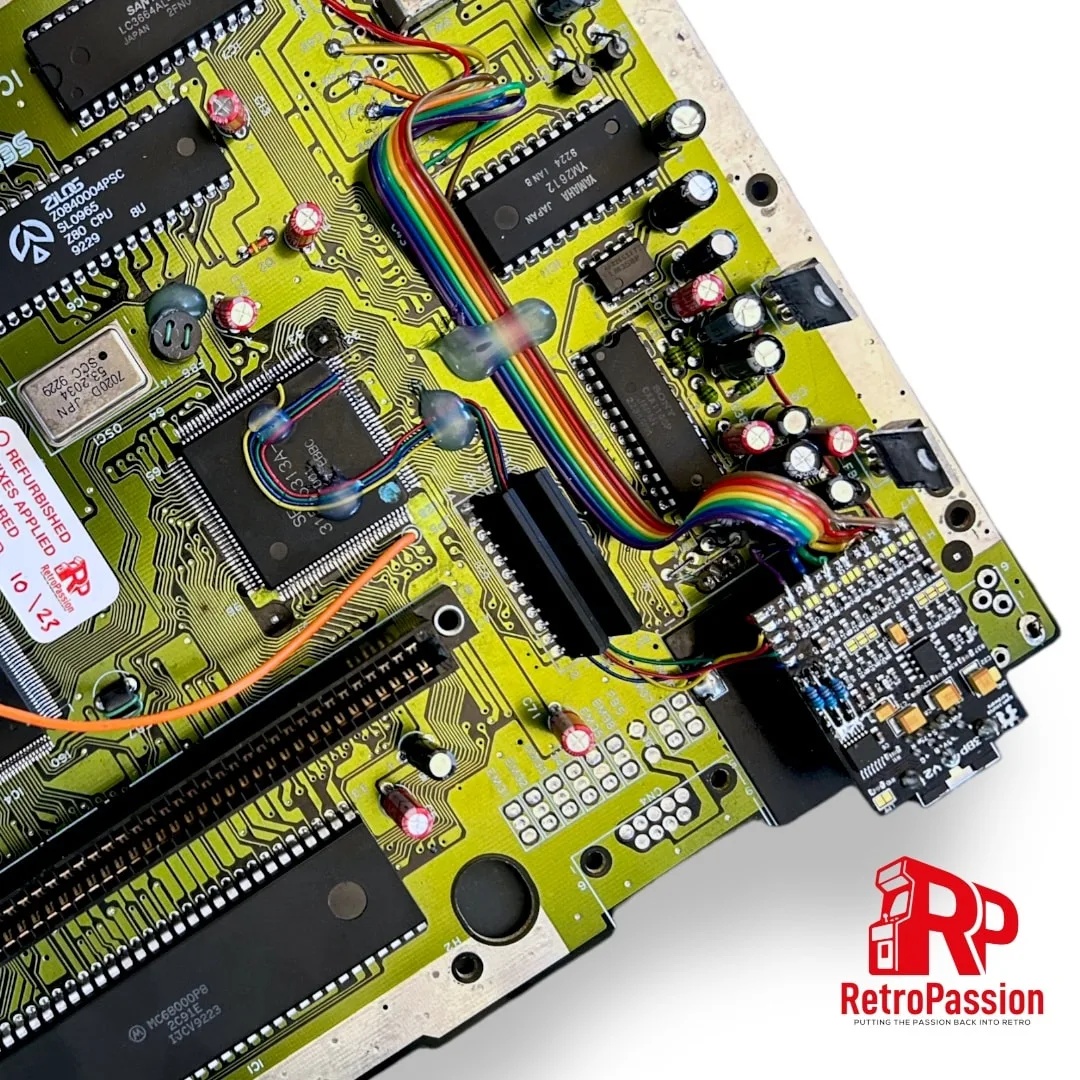

- The modification uses the latest THS7374 amp and uses bypass circuitry to improve RGB signal clarity.
- A Mega Amp 2.0 audio amp is used which improves the audio compared to a stock Megadrive / Genesis.
- Jumpers are applied which allow you to choose between many audio configurations.
- Audio optimised with the MDFourier project to match the best audio quality that comes from a new Model 1.
- Low-pass filter toggle.
- The modfication is professionally assembled using high-quality components from JP & USA. Brands such as Nichicon, Vishay, Panasonic.
- Premium ENIG (gold immersion) finish.
This is not a repair service, this is for working units only.
Work is on a 3/4 week turnaround from delivery.
