Amiga 4000 Recapping Service (Premium)
£45.83 Ex. VAT

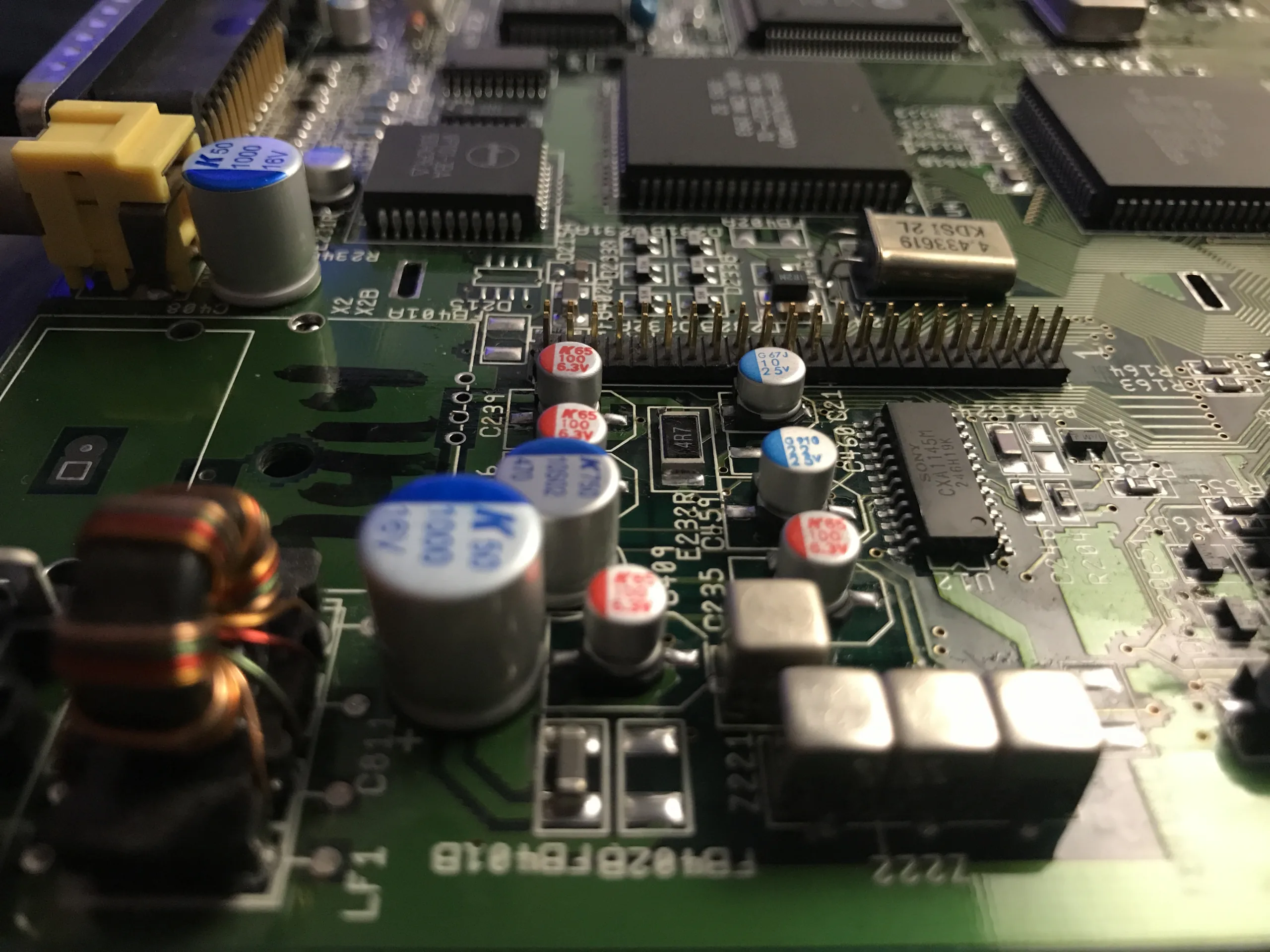

Amiga 4000 recapping service (Premium), all board revisions, NOTE this is NOT a repair service.
- Check of the board before recapping is begun.
- Removal of existing capacitors.
- Cleanup and preparation of area.
- Replace using Polymer Panasonic/Wurth/KEMET capacitors. (these will never leak)
- Retest (Video, Audio, Floppy Boot, IDE).
Related products
Amiga CD32 FMV Recapping Service
CD32 FMV recapping service, all board revisions. NOTE this is NOT a repair service.
Overseas recapping orders
Overseas orders are very welcome and we are able to provide you return shipping costs at the checkout. To do this add any of our recapping services to your shopping basket and then at the checkout simply fill in the billing and shipping form including your telephone and email address (important) and click the 'Request a quote' link. You will receive an email within 24hrs with the shipping cost and you can then proceed with the order by clicking on the 'Complete your order' within the email. There is no need to leave the checkout page open your web browser.
ScanPlus AGA – Amiga 1200 and Amiga 4000D Scandoubler
ScanPlus AGA is a internal Scandoubler for the Amiga 1200 and Amiga 4000D (not Amiga 4000T or Amiga CD32). The advantage of the internal ScanPlus AGA is that it will allow you to connect to a standard VGA monitor whether that be a traditional (best) CRT experience or a flat screen monitor or TV with VGA connector.
The primary PCB sits over the Lisa chip and the smaller PCB sits over the Alice chip. Output connector connects to a VGA socket which sits in a 3D printed backplate which is included (available in white or black, please note white will be sent if no note is made asking for black).
ScanPlus is plug and play, no drivers or setting up required, it will work straight out of the box, all Amiga screen modes are available via the VGA connector, these include Multiscan, PAL, NTSC, DoublePAL DoubleNTSC, Euro36, Euro72, Super72. It provides smooth 50-60 Hz and up to 24 bit colour depth.
What's included:
- ScanPlus AGA (Lisa and Alice PCB's).
- VGA breakout socket.
- White Backplate for VGA socket (please but a note on the order to ask for Black if required instead).
- Ribbon cable to connect to VGA socket.
- Link cable to Alice PCB.
- DPMS screensaver utility included - Download here
- Item is brand new.
- Installation guide is here
Note:
- Not retail boxed.
- Requires some knowledge of Amiga hardware when installing, fitting service available if required, ask for details.
Amiga 4000 Real Time Clock Service (RTC)
What is RTC service?
This service replaces 11 key components within the RTC circuit and around that could be affected by leaking battery these include:
1 x U891 - This IC is part of the fastram circuit and could be damaged by battery leakage.
1 x U178 Timer IC + socket
2 x U975,U976
1 x RP176 resistor network
1 x U177
1 x Diode for RTC reverse voltage protection
1 x battery kit PCB
1 x battery protection diode SMD
1 x battery holder
1 x CR2032 3V Lithium battery
NOTE: This service is for Amiga 4000's that work, but have a working RTC circuit or has corrosion around this area that needs to be cleaned up.
Amiga 4000T Recapping Service (Premium)
Amiga 4000T recapping service using polymer capacitors including Video/Audio, IO, SCSI Modules, Rev 4, NOTE this is NOT a repair service.
- Check of the board before recapping is begun.
- Removal of existing capacitors.
- Clean-up and preparation of area.
- Replace using Panasonic/Wurth/KEMET polymer capacitors.
- Retest (Video, Audio, Floppy Boot, SCSI (if HDD is present)
