Amiga A4000D Replica Part Built Birdseed Only
Amiga A4000D Replica Part Built Birdseed Only

Amiga A4000D Replica Motherboard Part Built (birdseed only)

 £ 99.99 Excl. VAT

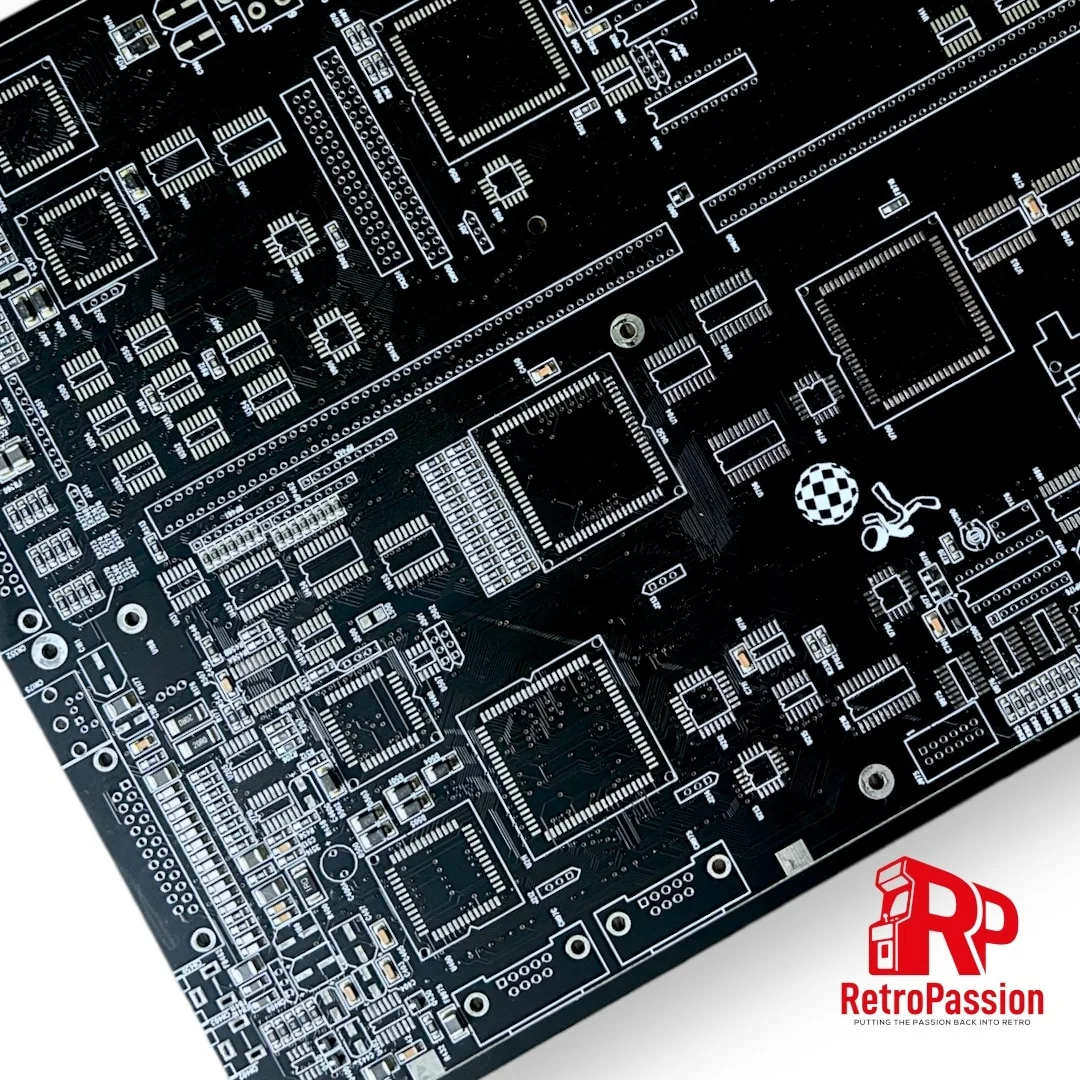

Amiga A4000D replica motherboard which has been part built with all the ‘birdseed’ components soldered in place which are SMD ceramic resistors and capacitors ONLY. These boards are based on the A4000 Rev B motherboard and organized by Paul Rezendes (ACILL) and the and was directly funded by the contributions of the Amiga Community.

What’s included:

  • Amiga A4000D Replica PCB in Black

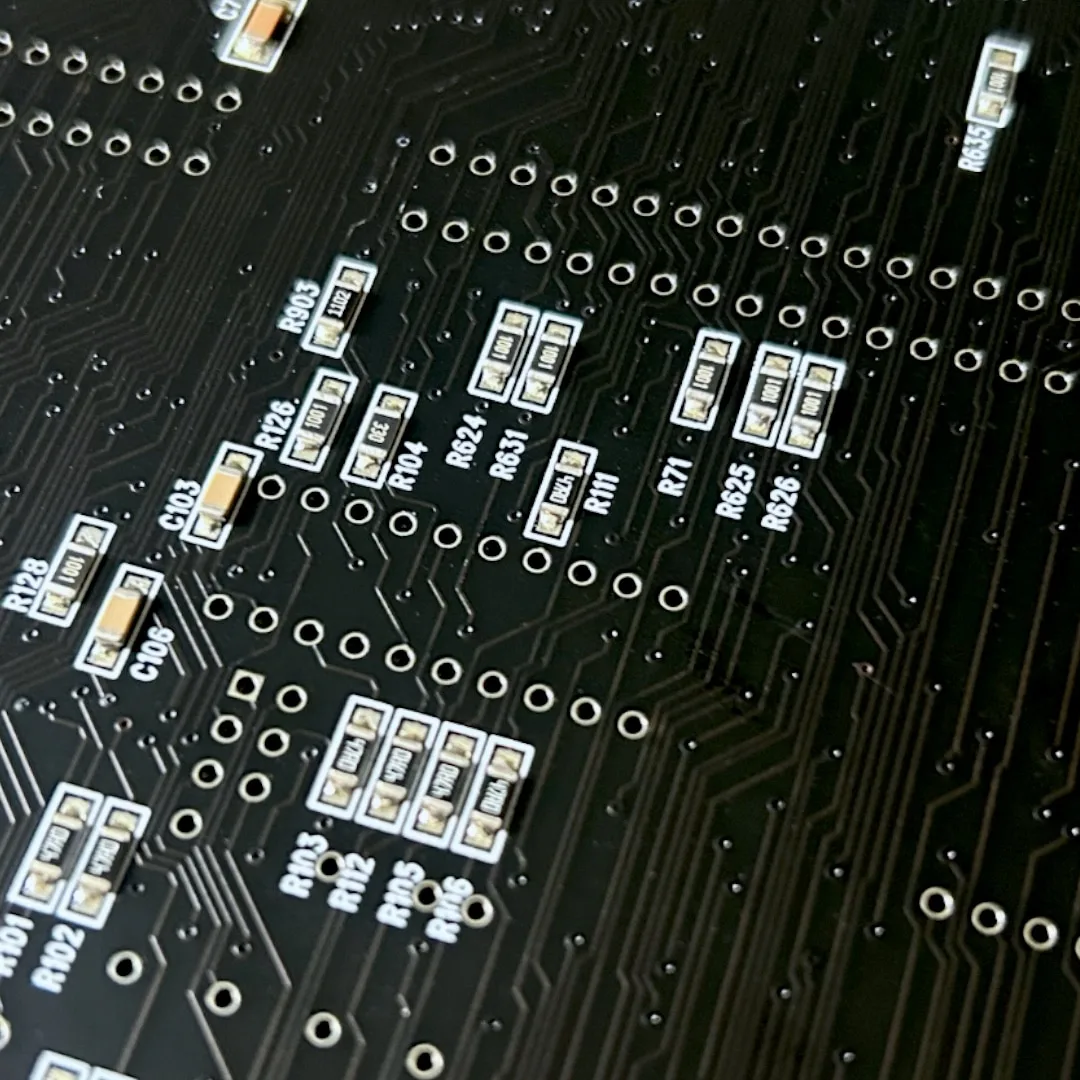

  • All SMD ceramic capacitors and resistors soldered



You will need to source further parts to make this a functional motherboard.



We also offer a fully built A4000D Motherboard here

SKU: A4000-birdseed Category: Tags: ,
