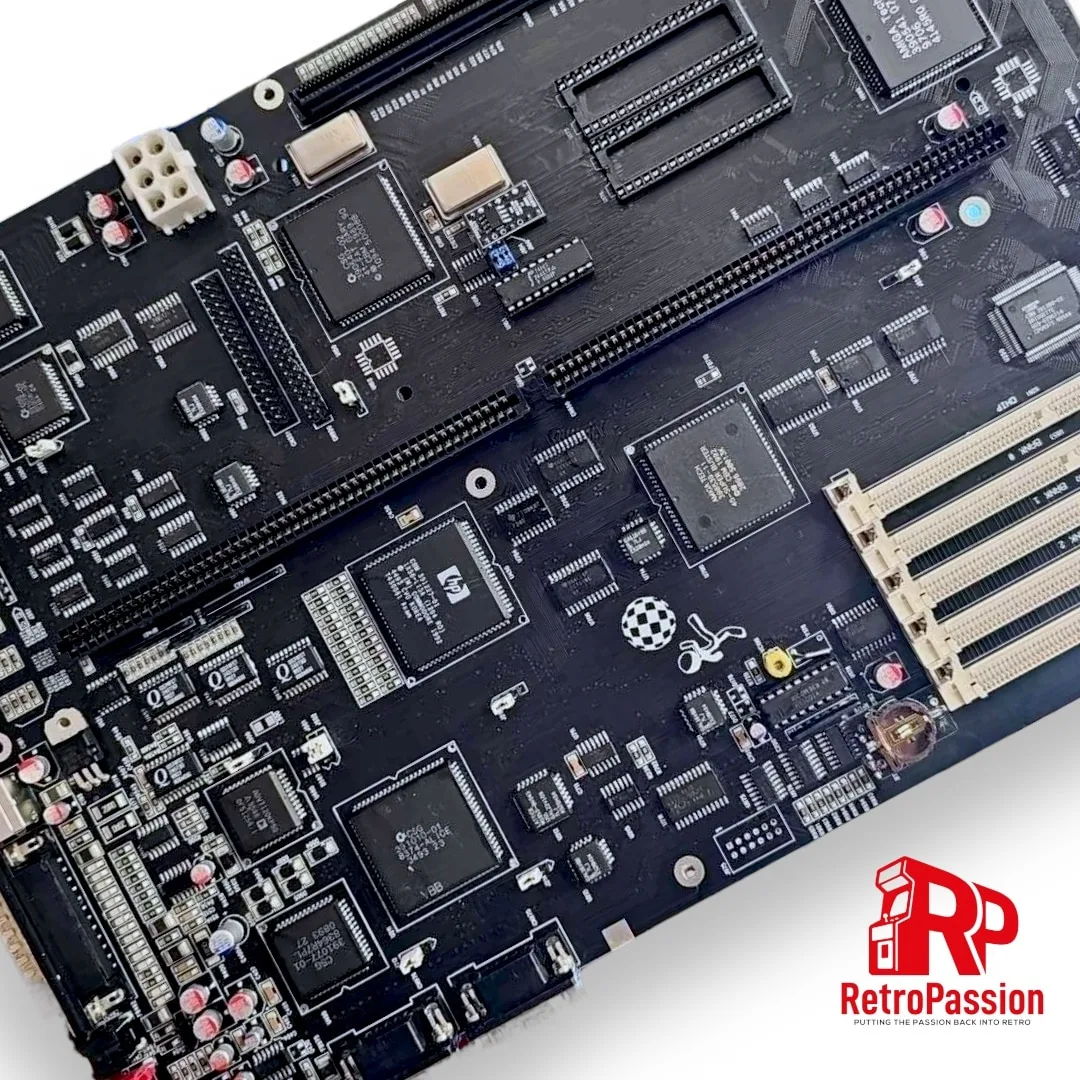

Amiga A4000D replica motherboard FULLY BUILT using 90% new* parts. these boards are based on the A4000 Rev B motherboard and organized by Paul Rezendes (ACILL).
Amiga A4000D replica motherboard FULLY BUILT using 90% new* parts. these boards are based on the A4000 Rev B motherboard and organized by Paul Rezendes (ACILL) and the and was directly funded by the contributions of the Amiga Community.
What’s included:
Amiga A4000D Replica PCB in Black.
90% new* components (DB23 port is a recycled component and some custom chips).
Includes all custom chips
Fully tested, just add your own A4000D daughter board, Kickstart Roms, CPU card, fast and chip ram.
These are built to order and can take between 6/8 weeks, a 10% non refundable deposit is required. We can offer daughter boards, kickstart ROMS, 72 Pin Simm ram or CPU cards if required.
Additional information
Weight
2 kg
Dimensions
30 × 20 × 3 cm
1 review for Amiga A4000D Replica Motherboard FULLY BUILT
