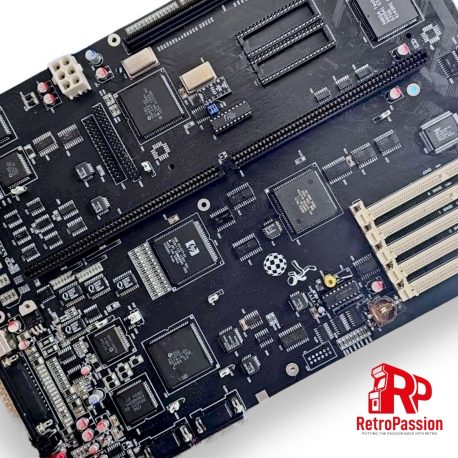

Amiga A4000D Replica Motherboard Fully Built

Amiga A4000D Replica Motherboard FULLY BUILT

 £ 1,399.99 Excl. VAT

Amiga 4000D replica motherboard FULLY BUILT using 99.9% new* parts. these boards are based on the A4000 Rev B motherboard and organized by Paul Rezendes (ACILL) and the and was directly funded by the contributions of the Amiga Community.



What’s included:

  • Amiga A4000D Replica PCB in Black.
  • 99.9% new* components (DB23 port is a recycled component).
  • Includes all custom chips (new old stock).
  • Fully tested, just add daughter board, CPU card, fast ram and chip ram.



These are built to order and can take between 6/8 weeks, a 25% non refundable deposit is required. We can offer daughter boards, kickstart roms, 72 Pin Simm ram or CPU cards if required.



*Custom chips are new old stock and have not been removed from working original boards, all other parts a brand new except for DB23 video port





Available on backorder

SKU: A4000-REPLICA-BUILT Category: Tags: ,
