ScanPlus AGA – Amiga 1200 and Amiga 4000D Scandoubler
£0.00 Ex. VAT
ScanPlus AGA is a internal Scandoubler for the Amiga 1200 and Amiga 4000D (not Amiga 4000T or Amiga CD32). The advantage of the internal ScanPlus AGA is that it will allow you to connect to a standard VGA monitor whether that be a traditional (best) CRT experience or a flat screen monitor or TV with VGA connector.

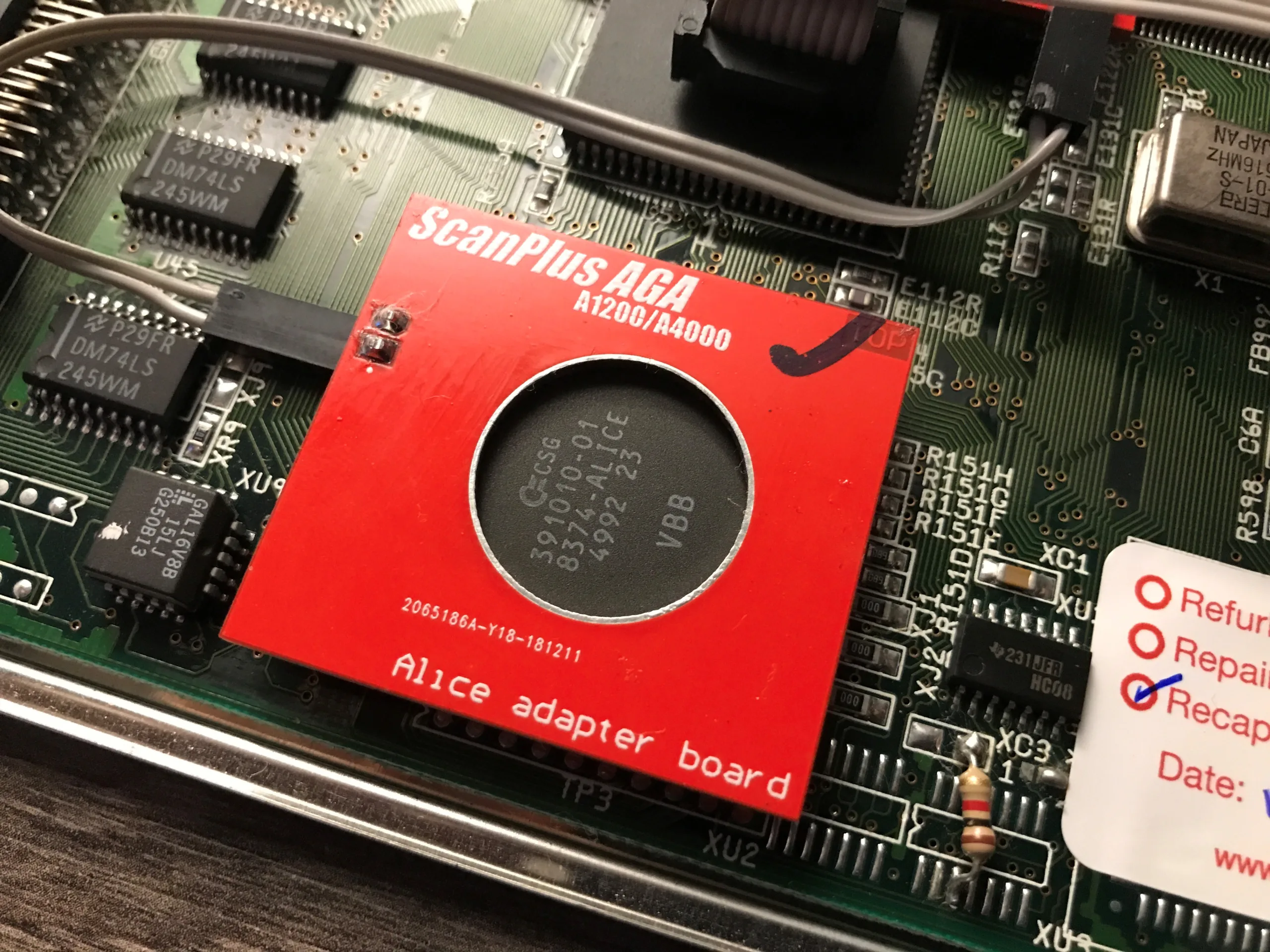

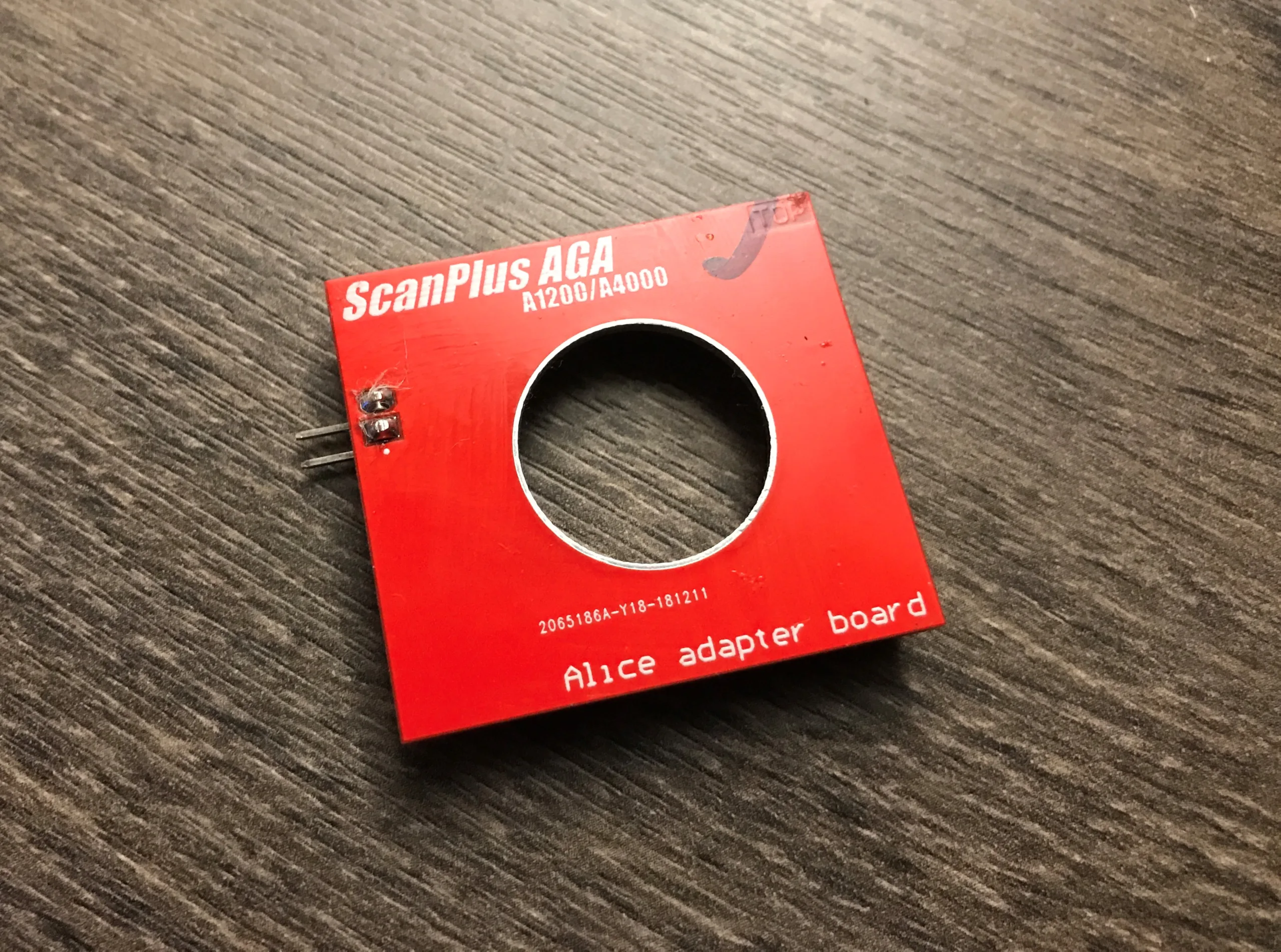

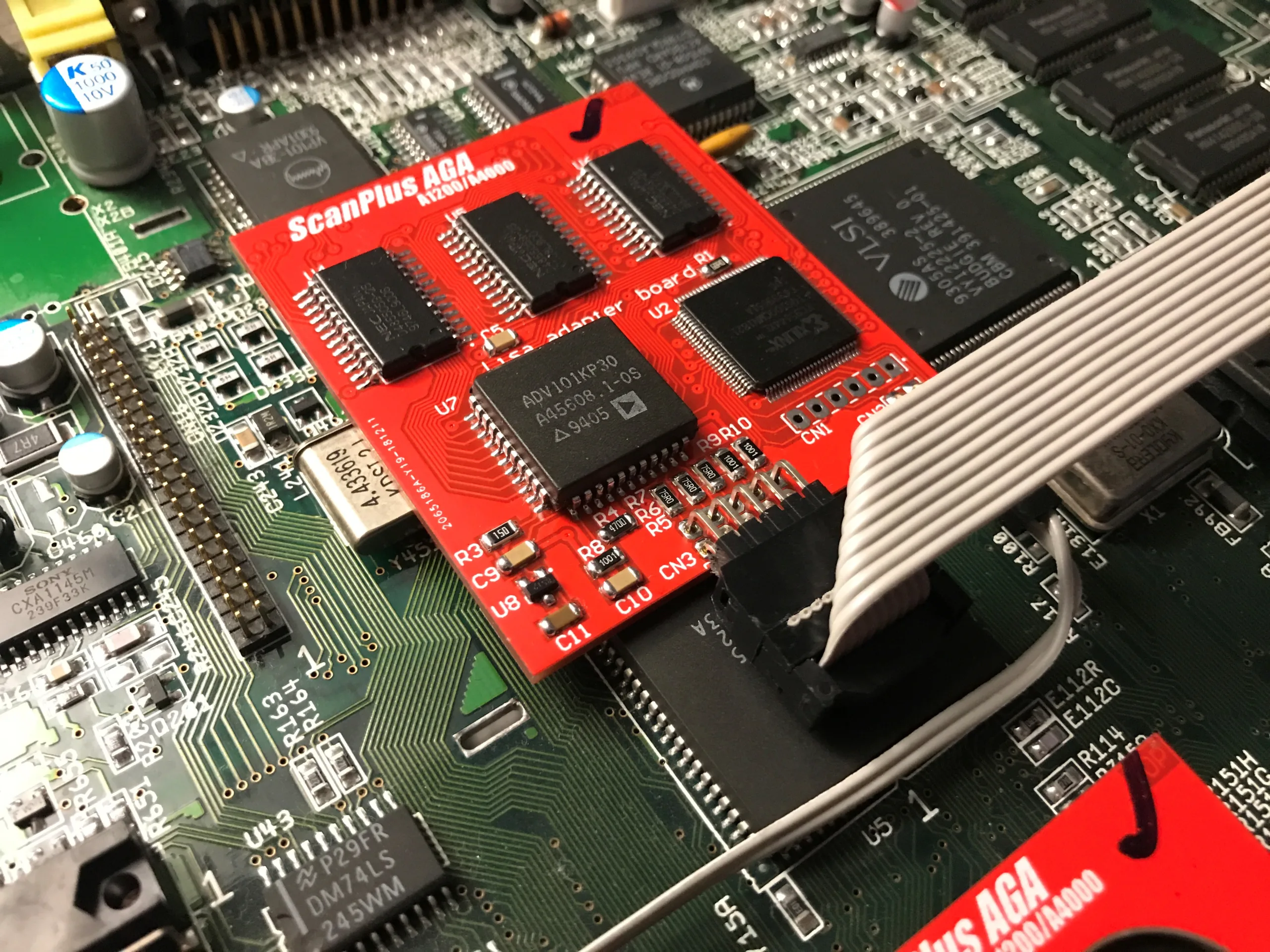

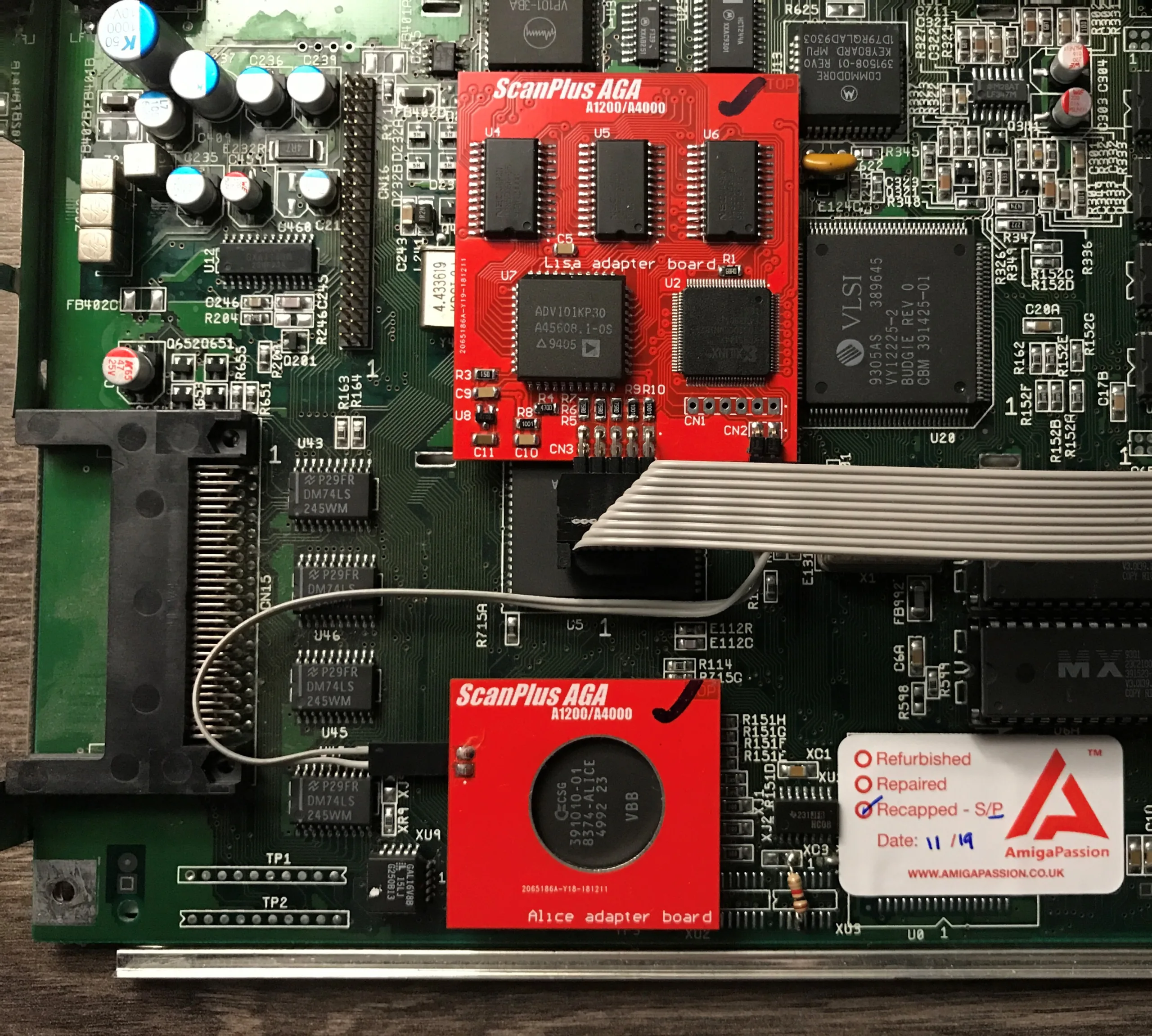

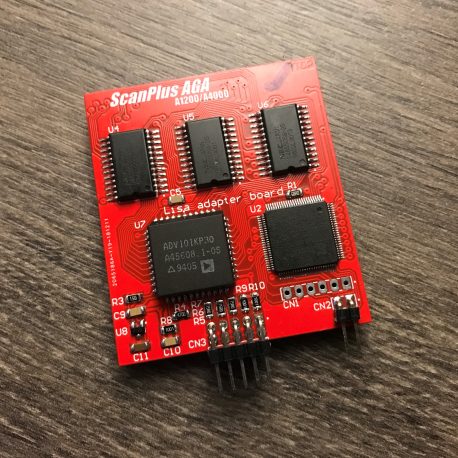

The primary PCB sits over the Lisa chip and the smaller PCB sits over the Alice chip. Output connector connects to a VGA socket which sits in a 3D printed backplate which is included (available in white or black, please note white will be sent if no note is made asking for black).

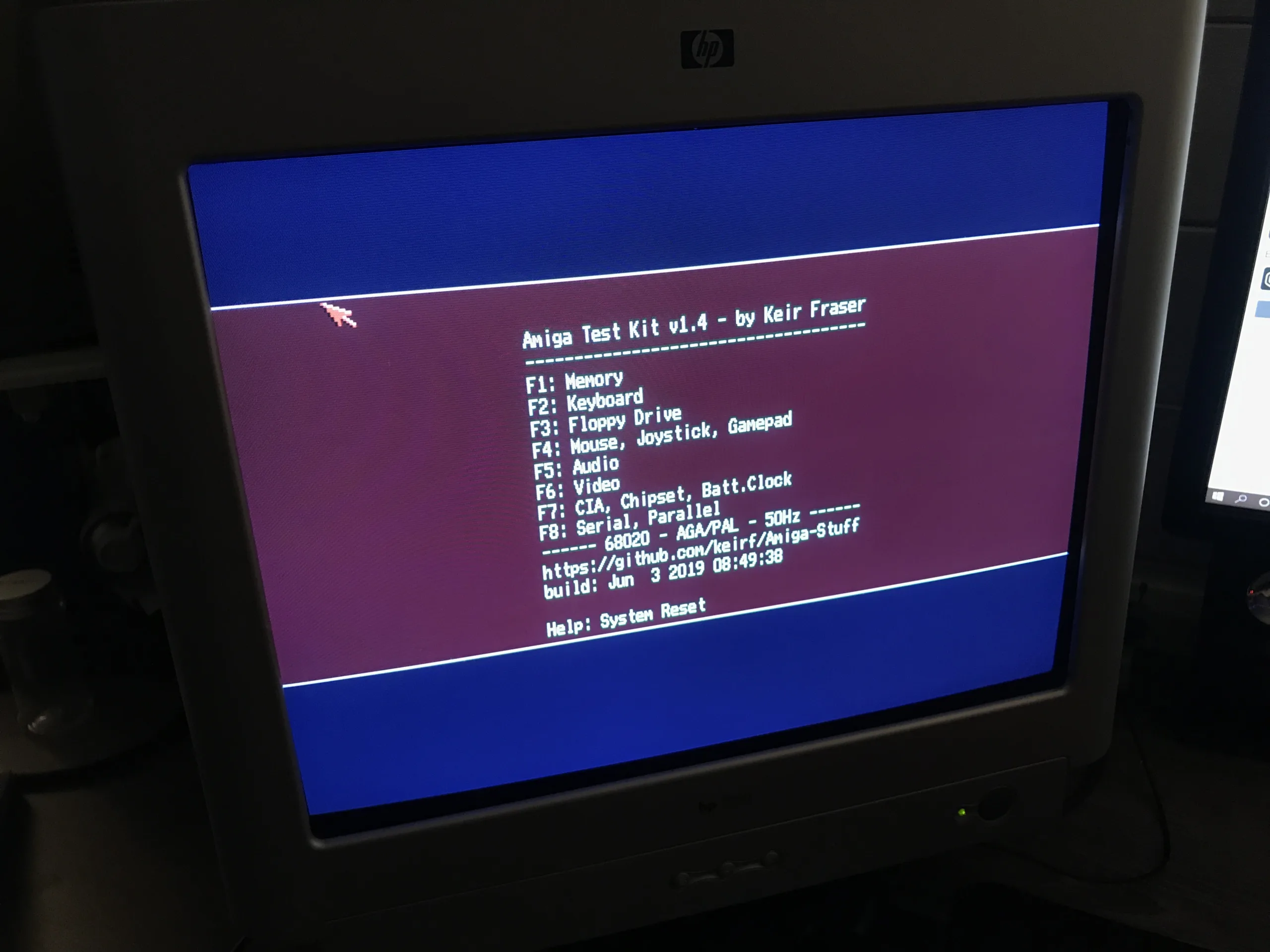

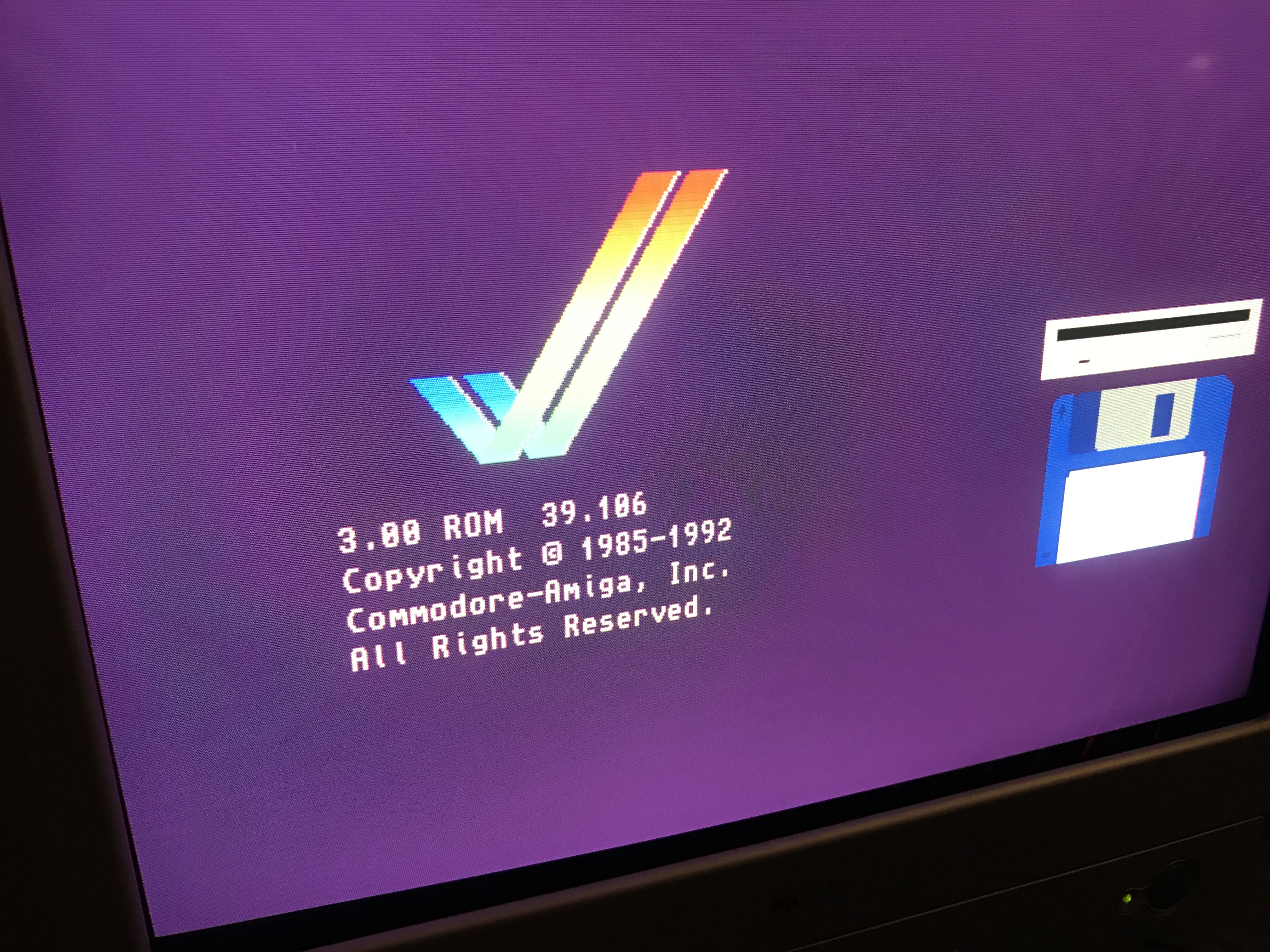

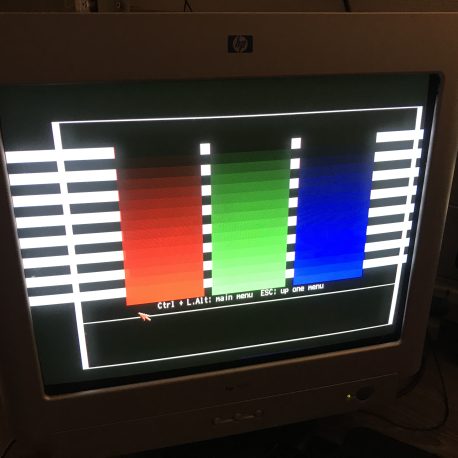

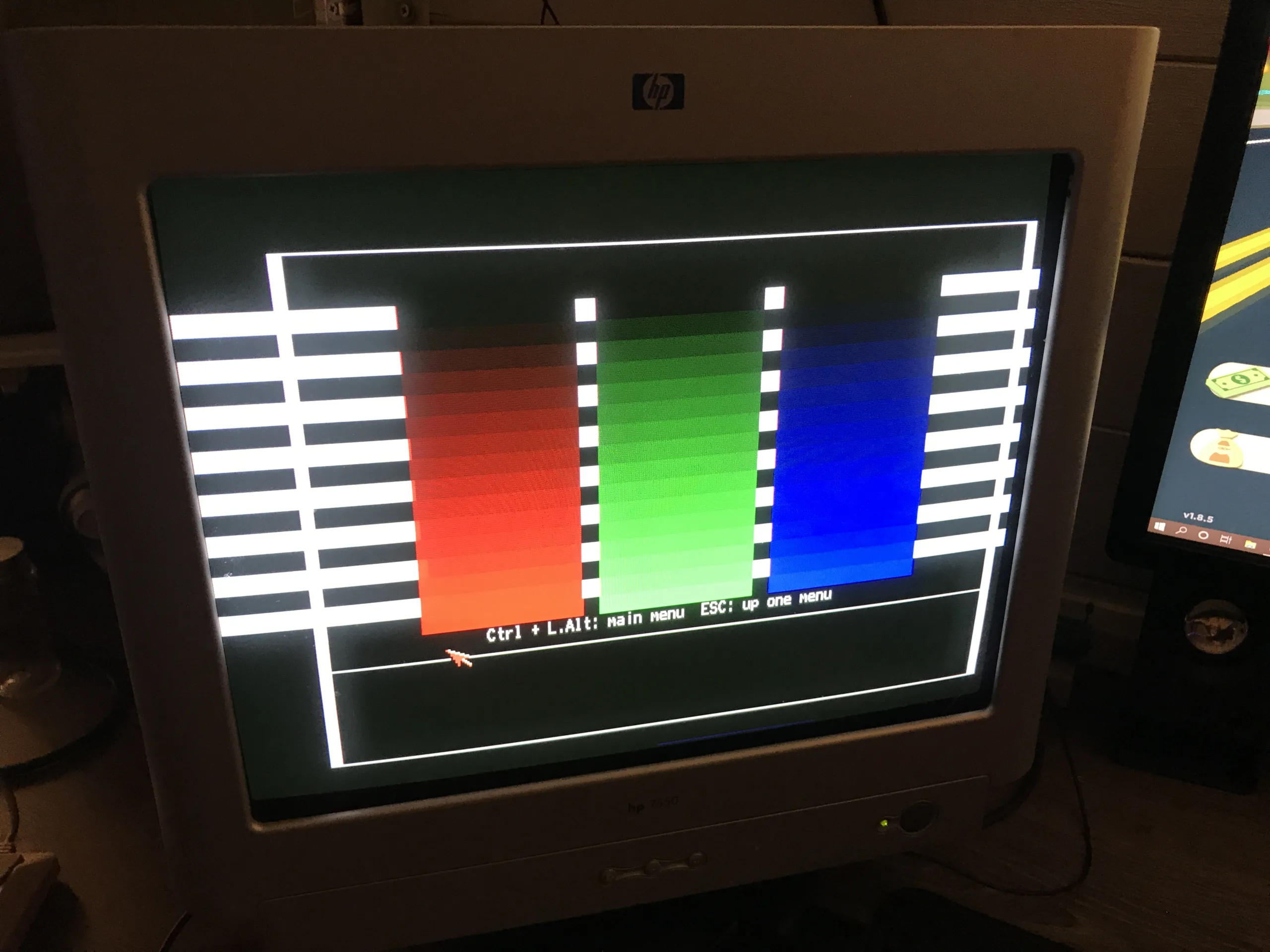

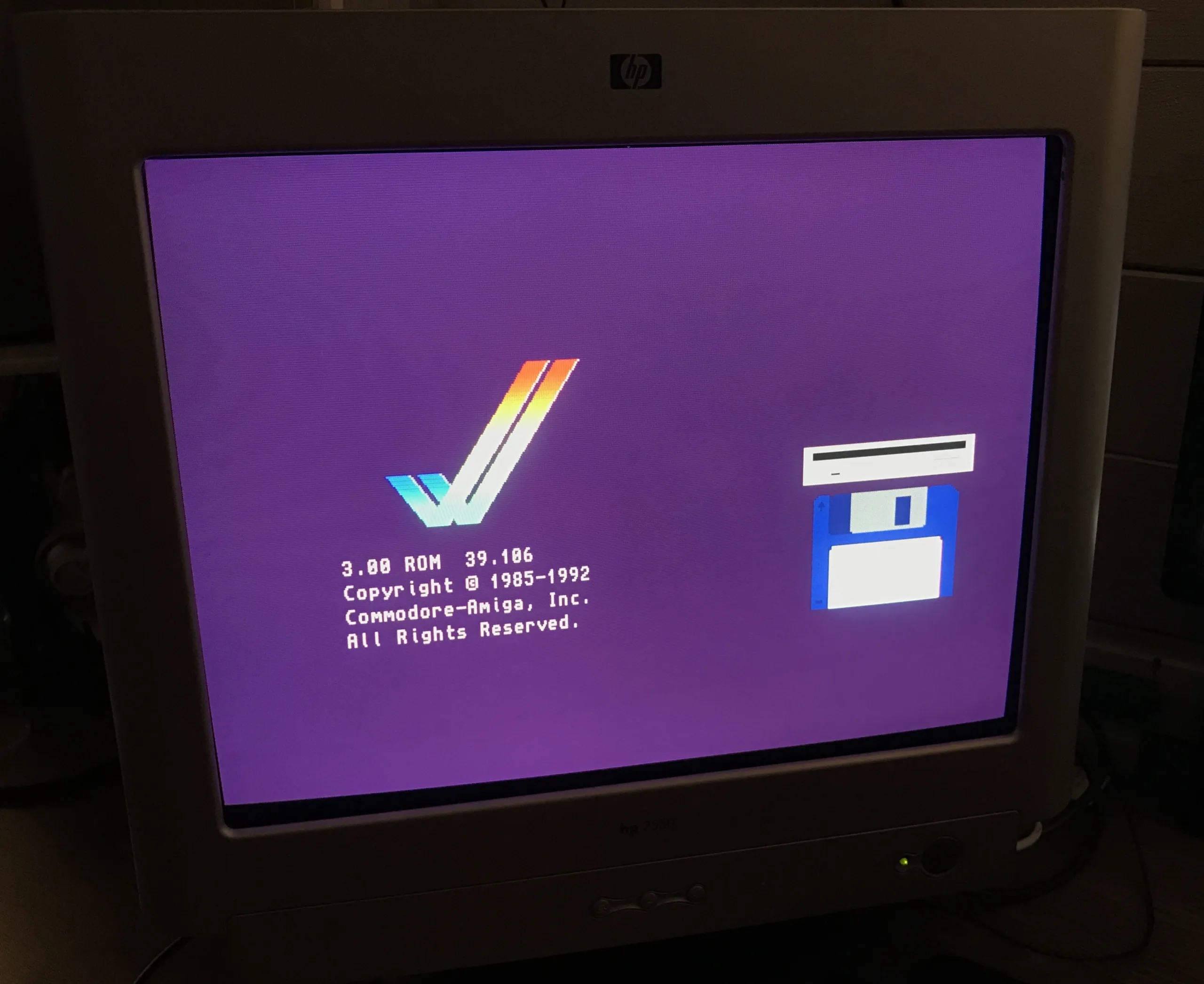

ScanPlus is plug and play, no drivers or setting up required, it will work straight out of the box, all Amiga screen modes are available via the VGA connector, these include Multiscan, PAL, NTSC, DoublePAL DoubleNTSC, Euro36, Euro72, Super72. It provides smooth 50-60 Hz and up to 24 bit colour depth.

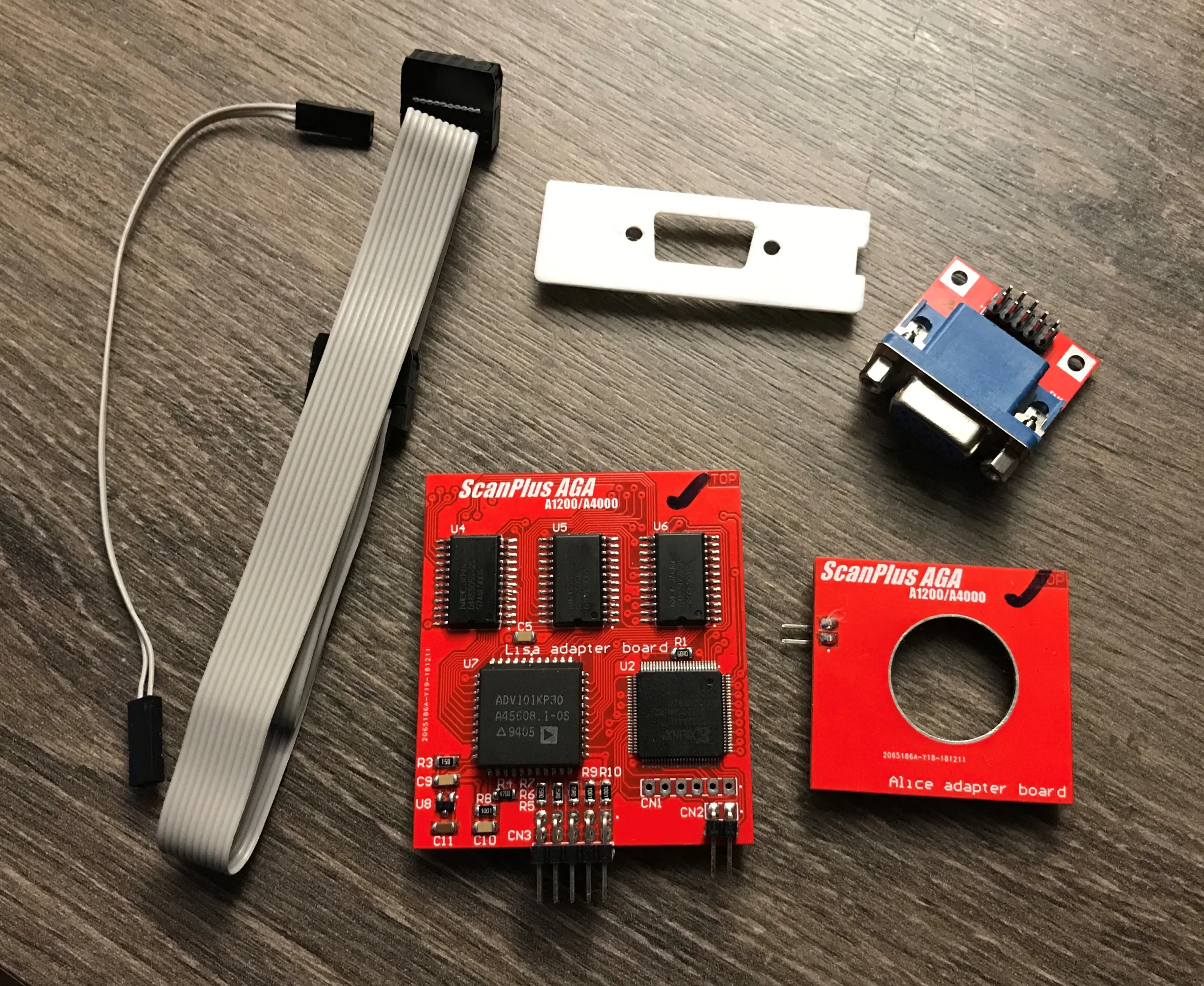

What’s included:
- ScanPlus AGA (Lisa and Alice PCB’s).

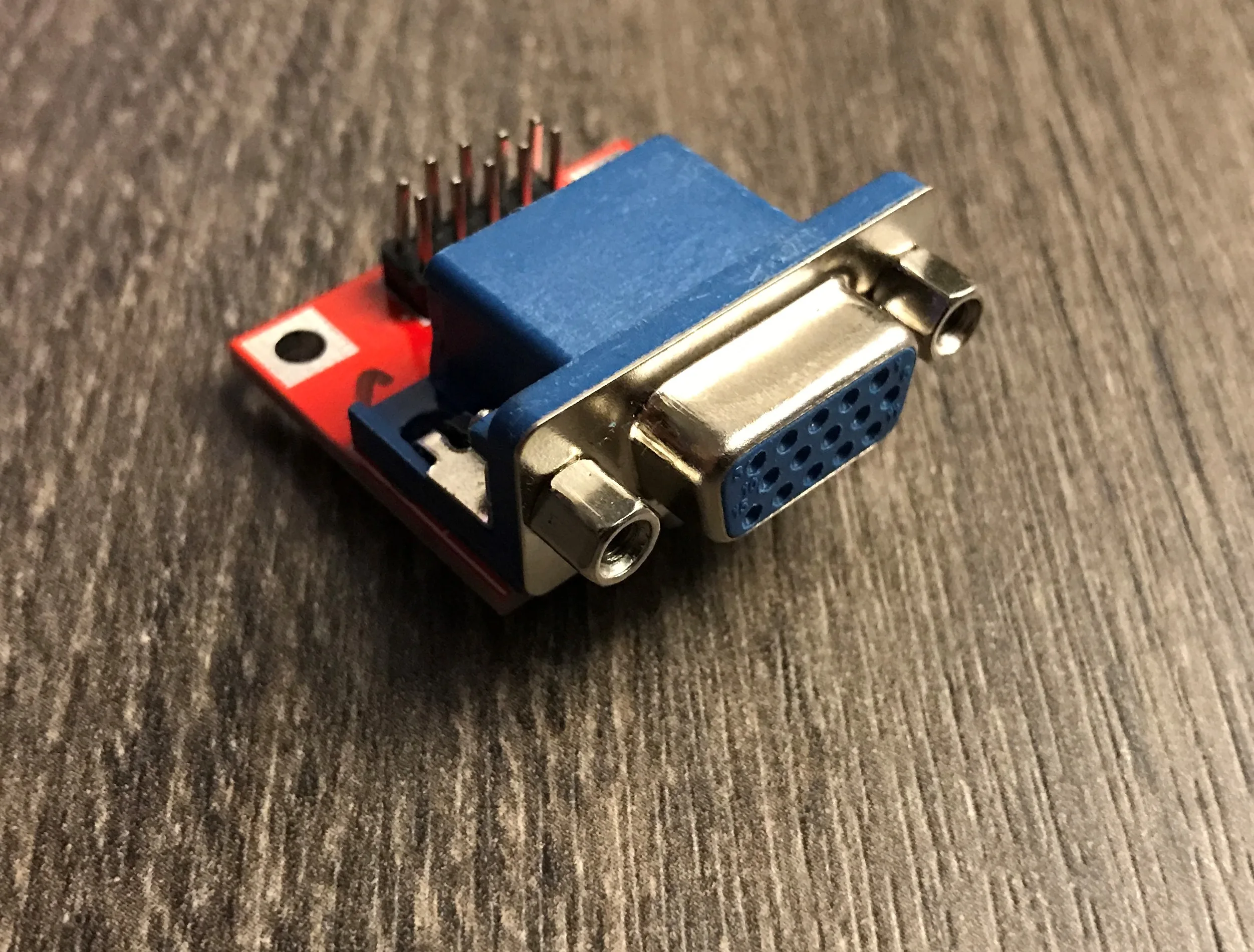

- VGA breakout socket.
- White Backplate for VGA socket (please but a note on the order to ask for Black if required instead).
- Ribbon cable to connect to VGA socket.
- Link cable to Alice PCB.
- DPMS screensaver utility included – Download here
- Item is brand new.
- Installation guide is here
Note:
- Not retail boxed.
- Requires some knowledge of Amiga hardware when installing, fitting service available if required, ask for details.
OUT OF STOCK
You may also like…

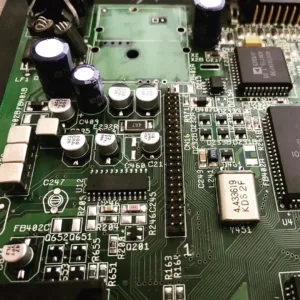

Amiga 1200 Recapping, Modulator, Timing Fix (Standard)
Amiga 1200 capacitor replacement service, all board revisions (1A,1B,1D1,1D4,2B). NOTE this is NOT a repair service.
- Check of the board before recapping is begun (any faults found before recapping will be reported back)
- Removal of existing capacitors (both SMD and radial capacitors).
- Cleanup and preparation of area.
- Replace using quality Panasonic/Wurth/KEMET capacitors.
- Retest (Video, Audio, Floppy Boot, CF Card boot)
- FREE return postage of your recapped board.
Amiga 1200 Recapping Service (Standard)
Amiga 1200 recapping service, all board revisions (1A,1B,1D1,1D4,2B). NOTE this is NOT a repair service.
- Check the board before recapping is begun (any faults found before recapping will be reported back).
- Removal of existing electrolytic capacitors both SMD and through hole.
- Cleanup and preparation of areas.
- Replace using quality electrolytic capacitors.
- Retest (Video via RGB and Composite, Audio, Floppy Boot, CF Card boot).
- Bad audio, missing channels, low volume
- Slow boot up
- Guru errors or random crashing
[space_20]
When you receive your freshly recapped motherboard back [space_20] Once your board has been returned we strongly suggest testing the board before adding any accessories or putting it back in any shielding (if it was sent without its metal shielding) or case. Many issues arise when the board is then subjected to add-ons being added or put back together without first knowing the board was working in its bare minimum state (PSU, Video/Audio only). We offer 14 days from delivery to notify us of any issues with your recapped board of which we will send you a returns label so we can recheck our work. We do randomly take videos and photos of recapped boards to showcase our work to share on social media and other outlets. Return shipping is calculated at the checkout including £100 cover for loss or damage and we only use tracked services. [space_20] A little bit more about our Amiga recapping service and us! [space_20] We have been recapping Commodore Amiga computers since 2016 and have recapped over 400+ customer boards and 200+ of our own refurbished Amiga units, so you can rest assured that your board is in very safe hands. We use the correct tools and methods for removing old SMD and through-hole capacitors avoiding unnecessary stress being applied to the motherboard or the copper pads themselves. We offer ultrasonic PCB cleaning service where by the motherboard is bathed in a 60 °C deionised water bath combined with a PCB cleaner for 3 mins and then naturally dried for 24 hours. Results will vary depending on the condition of the board. When you receive your board back, you can rest assured your board will be in the best condition to allow you to install any upgrades you have in mind, weather that be a new TF1230, TF1260, PiStorm32-Lite or a simple 8Mb Ram card. And lastly, each board will have a sticker put on with the month/year it was recapped, what type of service was used and if it has been refurbished (ultrasonic clean) or repaired. [space_40]
Amiga 600/1200/4000 IDE Header Replacement
Amiga 600/1200/4000 IDE Header (Socket) Replacement
This service replaces the 44pin IDE header on an Amiga 1200 with a brand new socket. Price includes FREE UK return shipping.

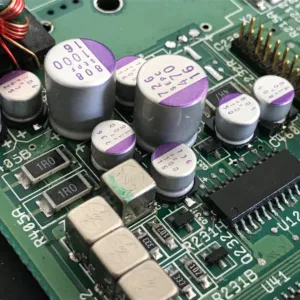

Amiga A1200 Recapping Service (PREMIUM)
