Amiga 500 Composite S-Video Modification
Amiga 500 Composite S-Video Modification
Amiga 500 Composite S-Video Modification
Amiga 500 Composite S-Video Modification

Amiga A500 Composite/S-Video Output Module

£41.66 Ex. VAT

Amiga A500 Composite/S-Video output module provides both Composite and and S-Video output via a extra PCB. This service provides the Composite/S-Video module and installation to your Amiga A500.

Installation does require the whole bottom half of the Amiga so the Composite/S-Video module can be installed.

What are the benefits of the Composite/S-Video module?

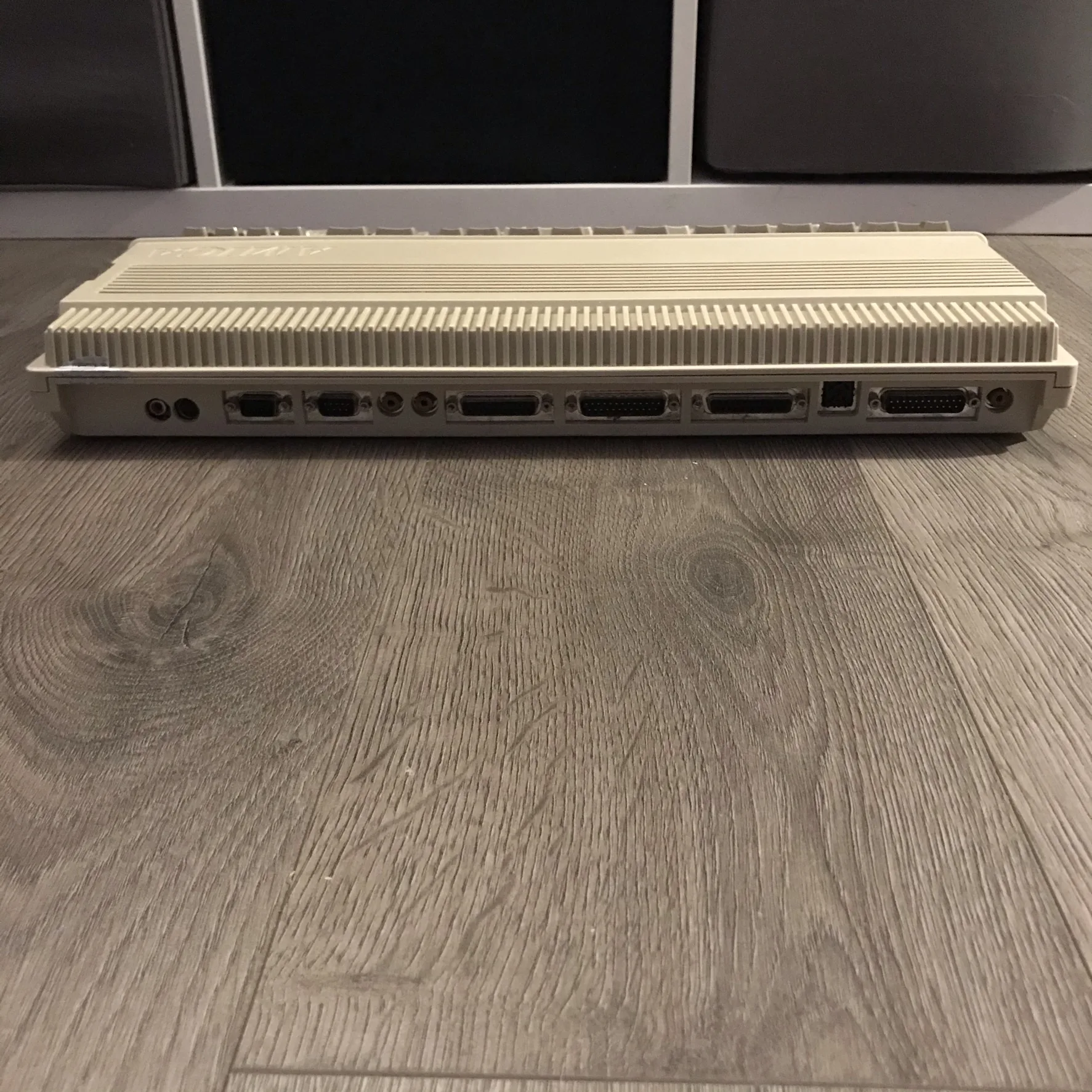

  • No need for the large modulator sticking out of the back of the Amiga A500.
  • Provides true composite video signal as the signal is directly from the RGB outputs.
  • Provides true S-Video video signal as again is directly from the RGB outputs.

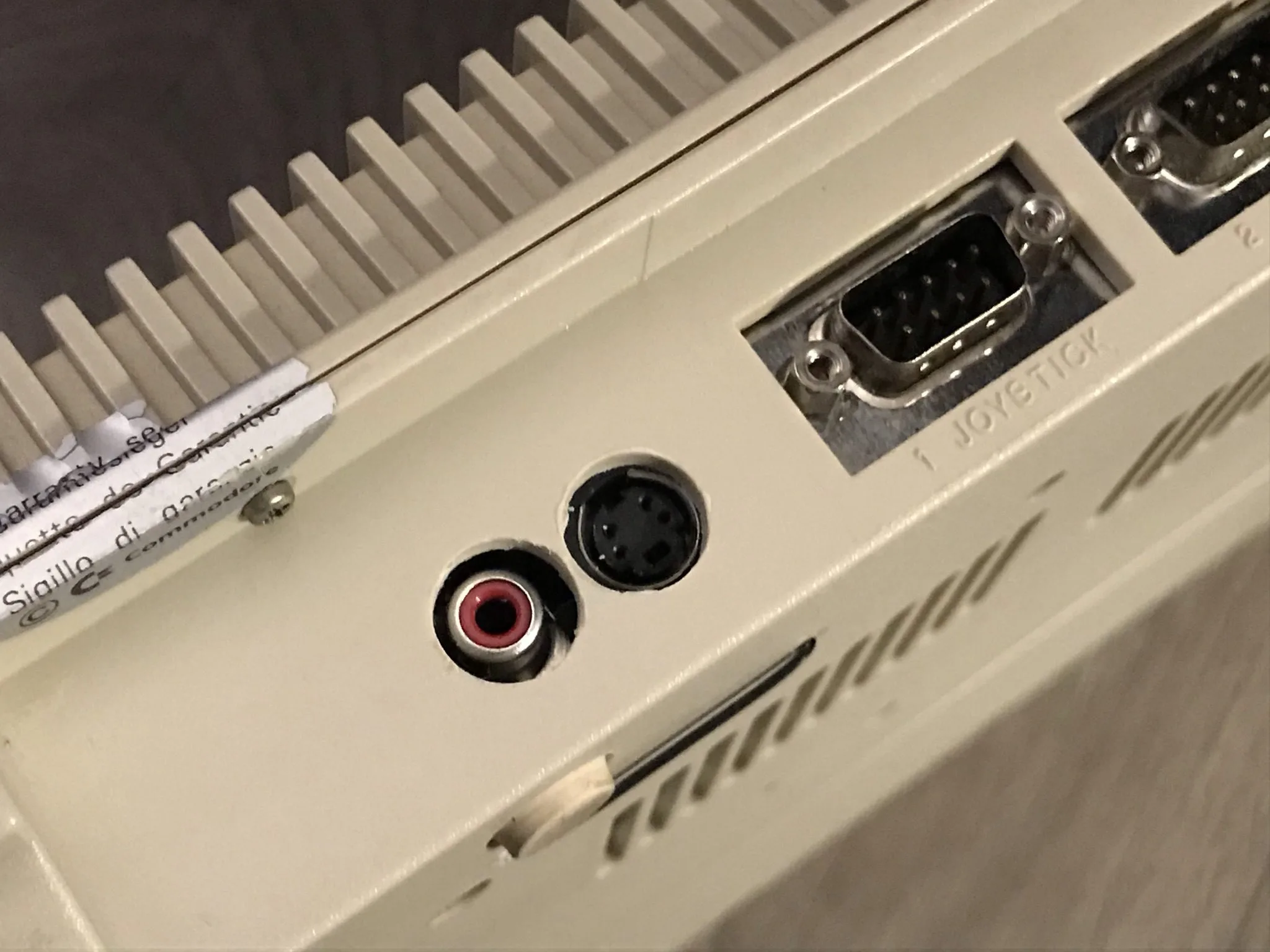

  • Neat internal solution that provides both composite phono port and S-Video port (case modification is required and included in the service).

This service takes into account the whole bottom half of the Amiga A500 Plus will be sent. Return UK shipping will be via Parcel Force and calculated at the checkout. £100 shipping insurance is included in the base price. Extra insurance can be added via the options below.

OUT OF STOCK

SKU: 1001111111111 Category: Tags: , ,
