Amiga A500 Recapping Service
£29.16 Excl. VAT

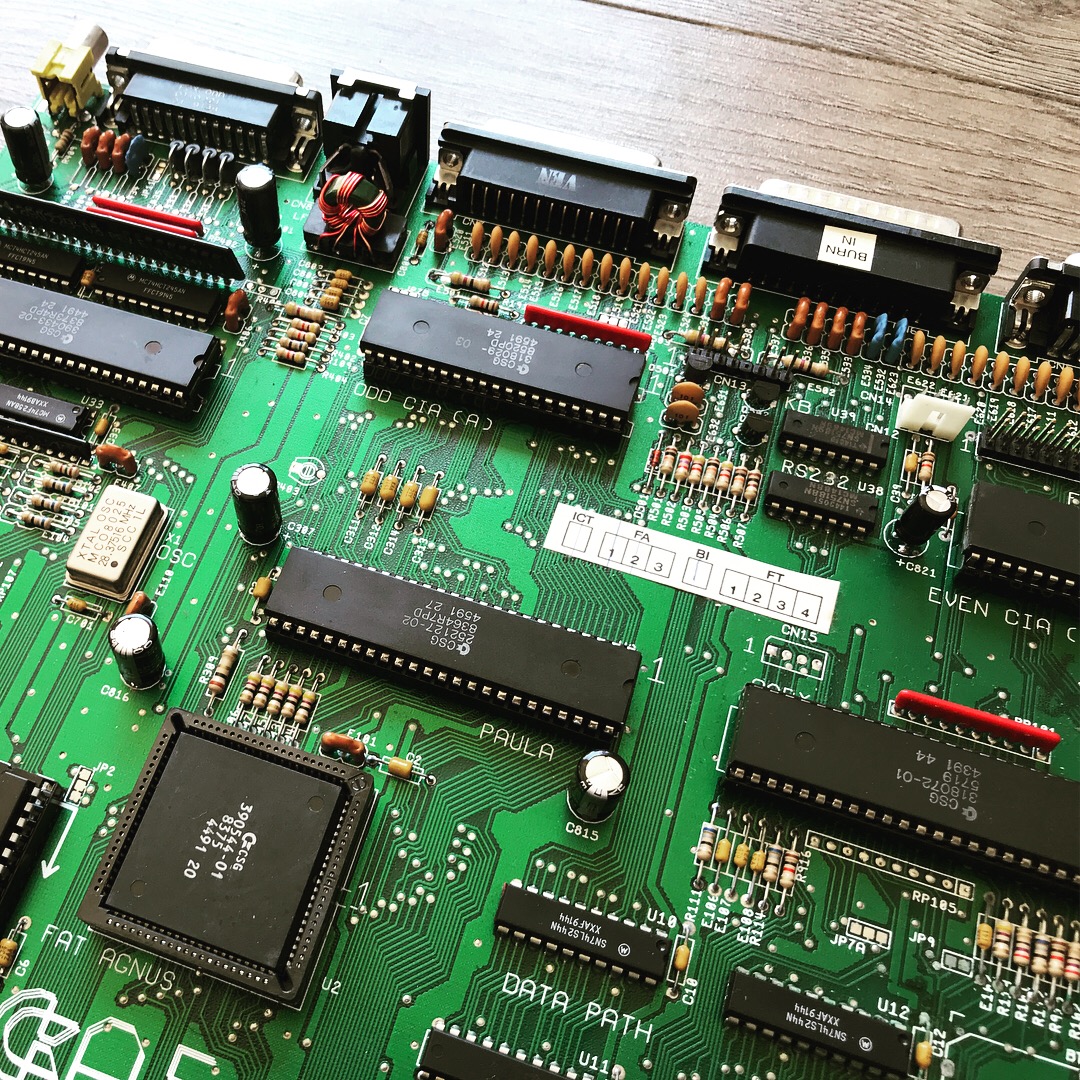

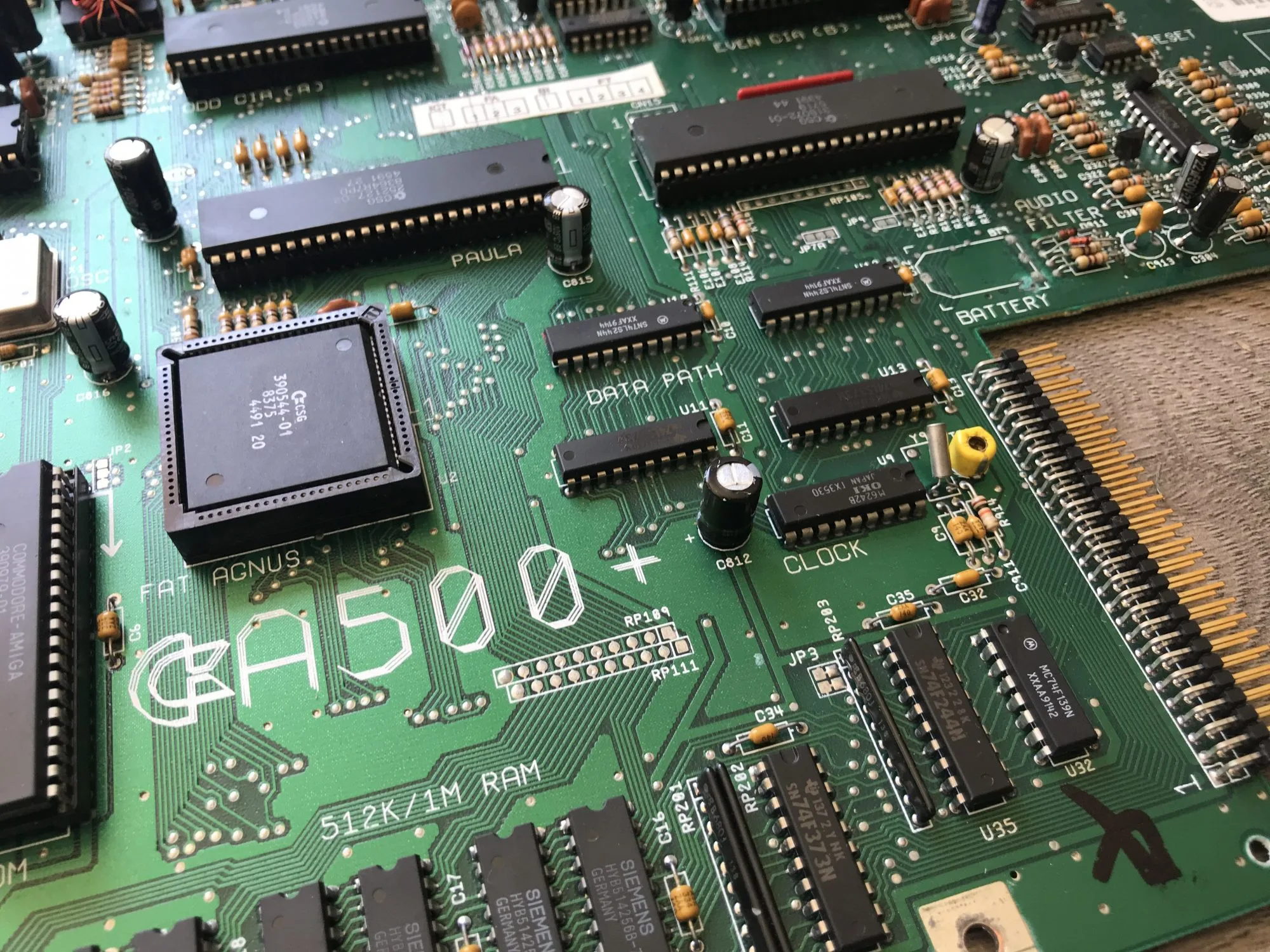

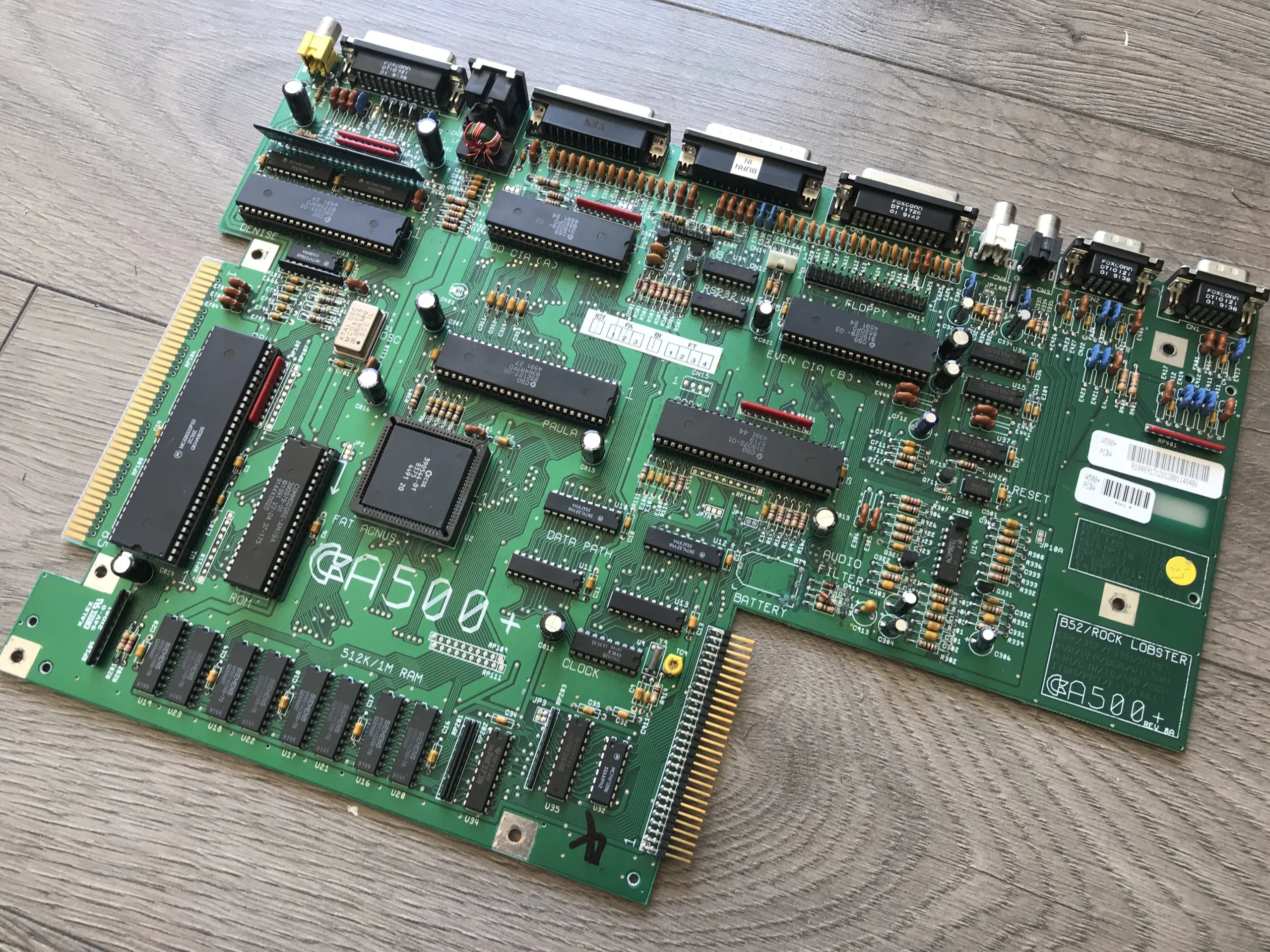

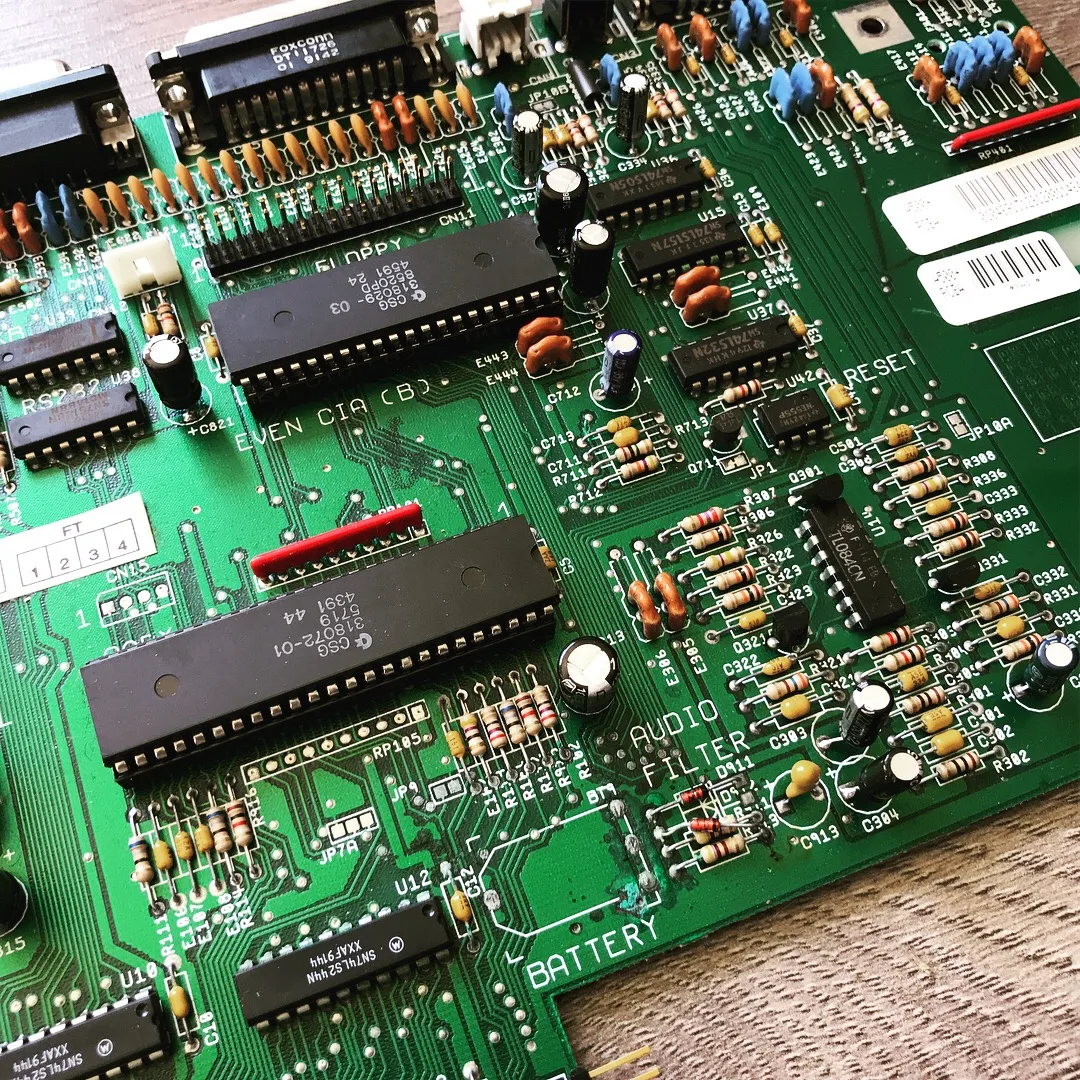

Amiga A500 recapping service, all board revisions, NOTE this is NOT a repair service.
- Check of the board before recapping is begun.
- Removal of existing capacitors.
- Clean-up and preparation of area.
- Replace using Panasonic/Wurth/KEMET capacitors.
- Retest (Video, Audio, Floppy Boot.
We also provide a recapping service for the Amiga A500 Plus which came with a 2.04 kickstart rom.
