ACA1221LC 16Mb 68EC020 26.67Mhz Accelerator Amiga A1200
ACA1221LC accelerator Amiga A1200 and ACA500Plus comes with the 68EC020 processor (guaranteed to run at 26.67MHz) and 16MBytes physical memory. 11.2MBytes of this physical memory can be used as fastmem, and 1 MByte is reserved for a fast copy of the Kickstart ROM. The CPU speed can be switched in four steps between 14MHz and 40MHz. Overclocking the card beyond 26.67MHz will require active cooling and a very good power supply like the A1200 Boost PSU or the highly specced CA-PSU ; operation at this high speed is not guaranteed.
The ACA1221lc features iComps IDE speeder technology that accelerates reading from the internal IDE port, this IDE speeder does not require opening the computer or even removing chips from their socket. The IDE speedup to PIO mode 3 is activated with a software setting and reaches a raw data transfer rate of 10.2 MBytes per second, which results in every-day performance of 3.6MBytes/s with fast CF cards. Fast hard drives with cache may exceed 7MBytes/s performance. The IDE speeder feature is not available if connected to an ACA500 or ACA500plus.
The ACA1221lc is prepared for use with our forthcoming ACA2000, where it will provide up to 11.9MBytes of fastmem. More memory configurations allow for using Zorro cards without conflicts.
ACATool is required to unlock some of the features like:
- MapROM – Load up other kickstart roms like AmigaOS 3.2 without the need of physical ROMS
- Loading of the onboard Kickstart ROM file without losing valuable RAM
- Control the IDE speeder,
And much more!

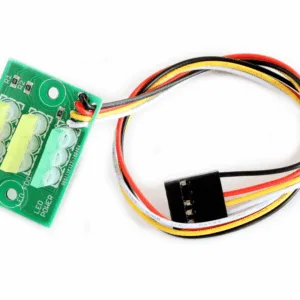

A1200 Case LED Board
A1200 Case LED board with power LED (green), floppy LED (yellow) and HDD LED (yellow). A simple replacement for your current Amiga 1200 LED board if its faulty or a great addition for the new A1200.net cases.

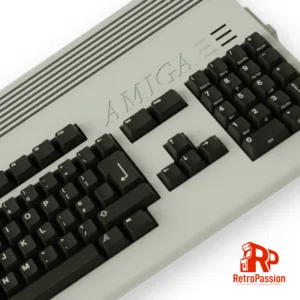

Amiga A1200 White Case and Mechanical Keyboard Bundle
Amiga A1200 white case and A1200.net mechanical keyboard bundle:
What’s included?
- Top case including enhancements
- Bottom case including enhancements
- Enhanced bottom trapdoor with extra vents.
- Enhanced rear trapdoor + extra plastic holder DVI / VGA shaped hole.
- Rubber feet
- NEW A1200.net Amiga Mechanical Keyboard
- New A1200.net black amiga keycaps
This bundle is perfect for:
- Original A1200 Motherboards (all revs)
- Re-Amiga A1200
- A1200NG Motherboard
- Raspberry Pi builds using the Keyrah V3
So what are the differences between the original Commodore case and the New A1200 case?
- All screws are secured with metal brass inserts. No more broken plastic clips.
- The bottom trapdoor has extra vents for a better case air flow.
- 2 new rear trapdoors are available to accommodate VGA and DVI. The third one is a Plain door.
- The case supports the following modern devices : Raspberry Pi©, MiST© FPGA, Keyrah© V3 keyboard adapter, RapidRoad© Double USB and Lotharek© HxC Floppy emulator, Flashfloppy
Image for illustrative purposes only
A1200 FPU Upgrade (Onboard)
A1200 FPU upgrade (onboard) which includes socket, FPU and installation.
What does the modification do?
This FPU modification adds a real FPU to the A1200 motherboard, there has always been a place (U0) for an onboard FPU but it was never added. This is a perfect compliment for a stock A1200 or one with an accelerator without an FPU option, for example The TF1230 or any standard ram upgrade like the 11Mb Fast Ram upgrade. However there are a couple of limitations of adding an onboard FPU.
- The FPU will be using the CPU clock which is at 14Mhz, which means the FPU will be running at 14Mhz
- The FPU will be disabled if you use a 040 or 060 accelerator, for example TF1260. This is because both the 040 and 060 processors do not acknowledge external FPUs as you can get those processors with built in FPUs.
This modification is available as an option on our A1200 recapping service, ReAmiga 1200 and Refurbished units.
Checkout this Youtube video by Chris Edwards
Process of ordering:
Like our recapping service, you would need to send us your A1200 motherboard only. Once you have ordered you will receive an automated email with where to send the board and how to pack it.

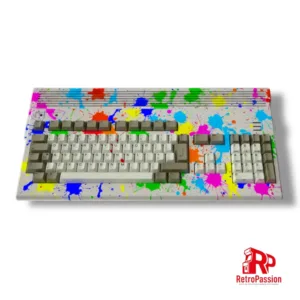

Amiga A1200 Custom Colour Case Service Professionally Resprayed
Amiga A1200 custom colour case service, put you own mark and spin on your Amiga A1200 case with a wide range of colours and finishes. Professionally resprayed by hand, this is a very unique service.
Alicia 1200 Amiga ITX Motherboard Fully Built
Alicia 1200 is the Amiga A1200 motherboard reimagined using the ITX form factor or is also known as Mini-ITX. This form factor is direct from the PC world which means there are many case options available. This is a fully built Alicia 1200 motherboard.
