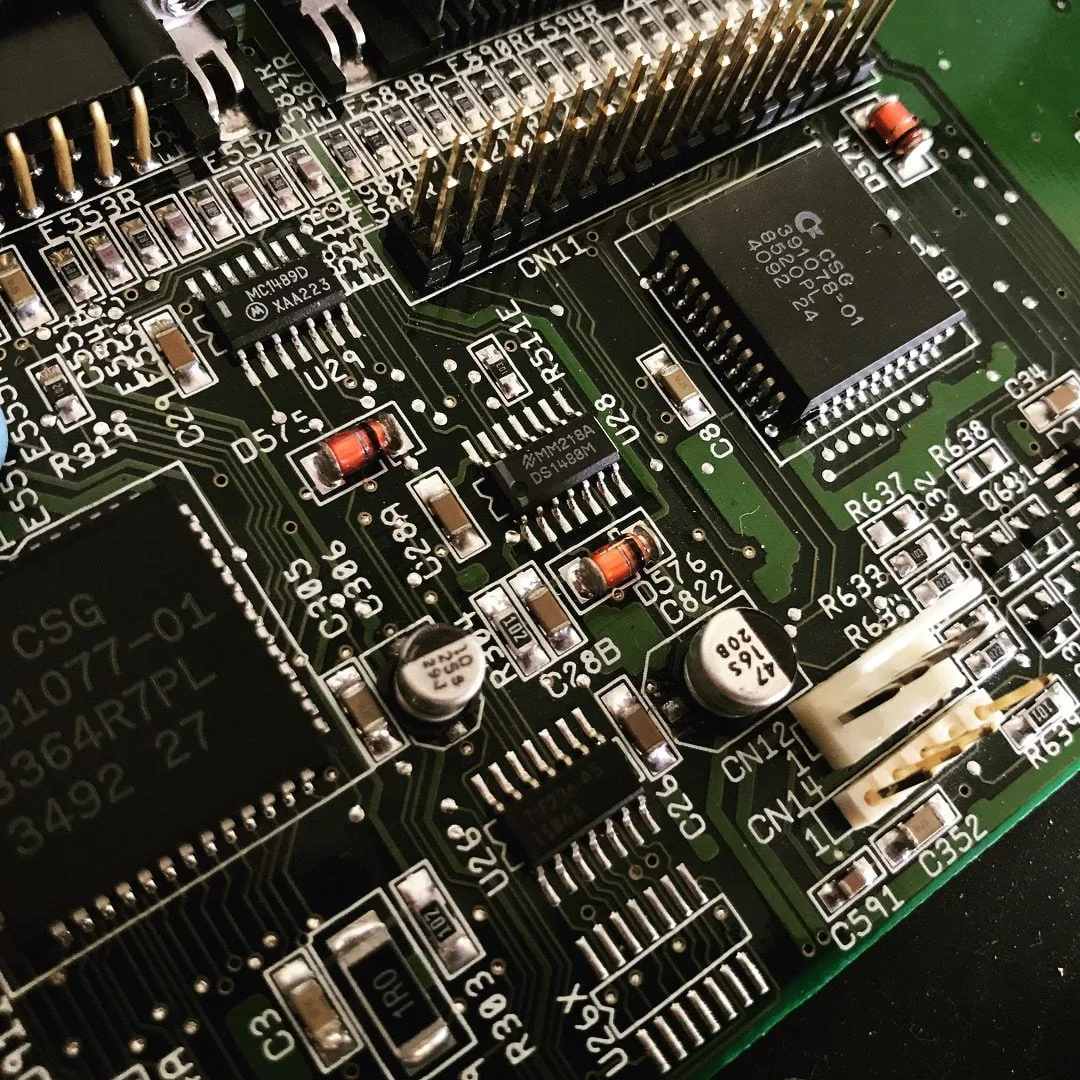

Amiga 1200 Mainboard recapped

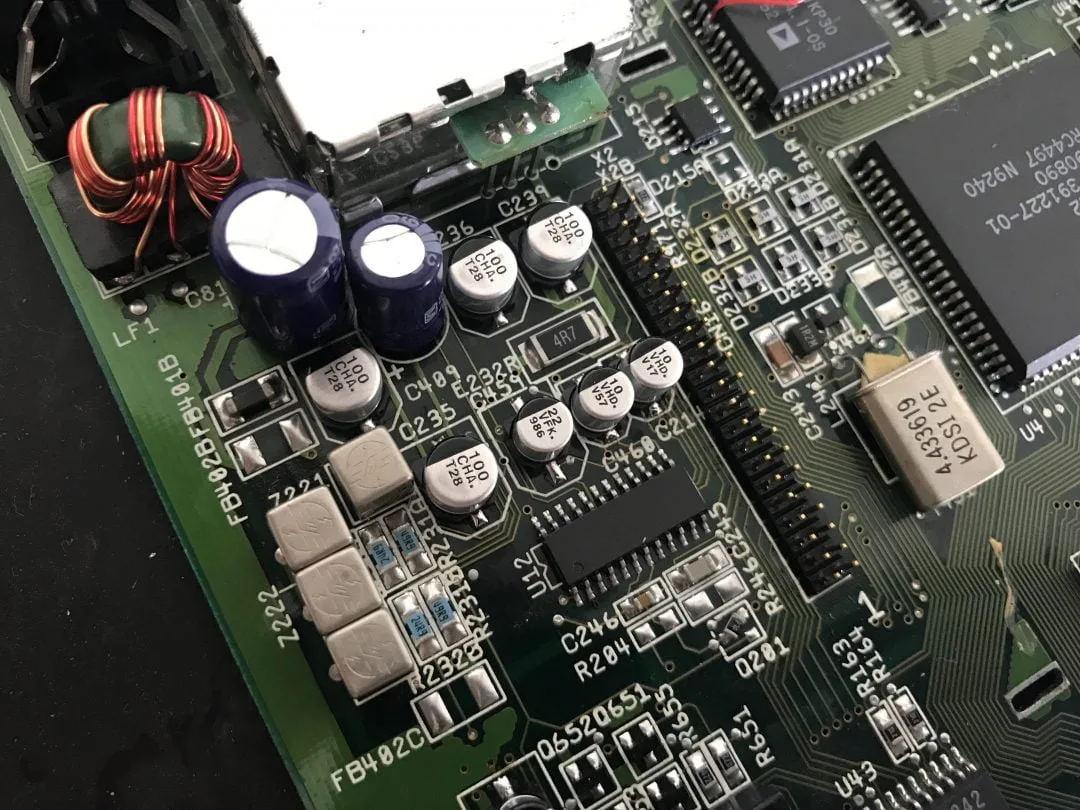

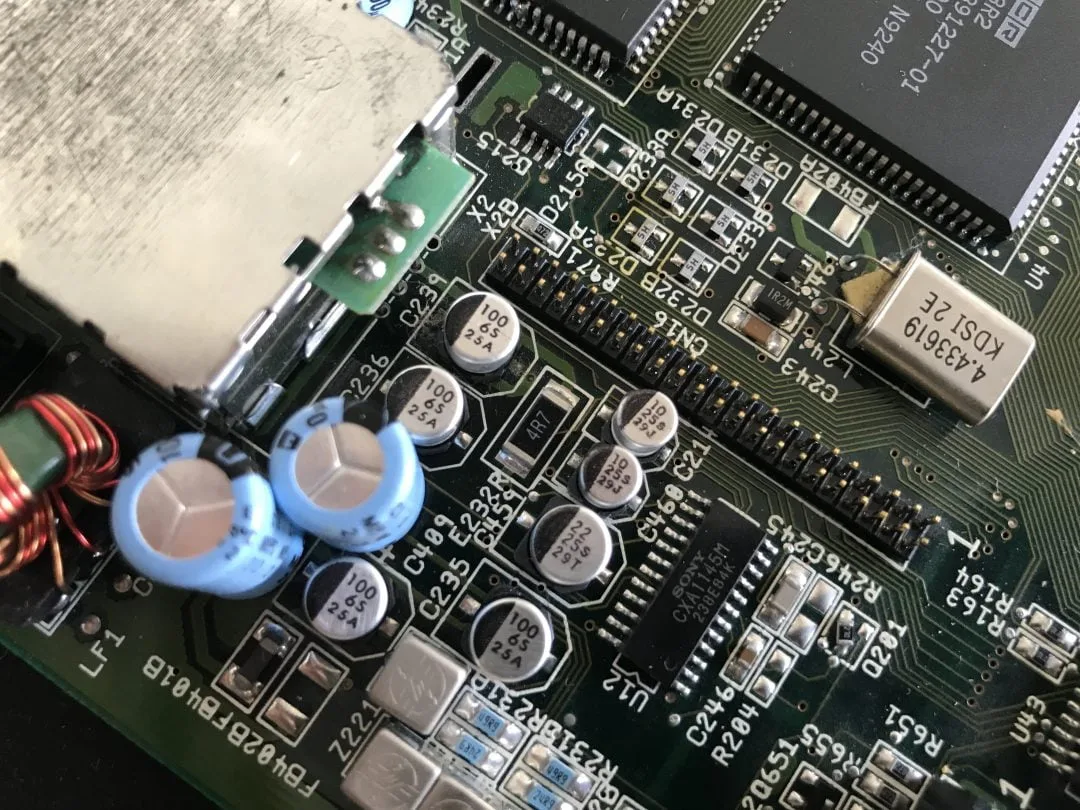

Amiga 1200 Mainboard before recapping

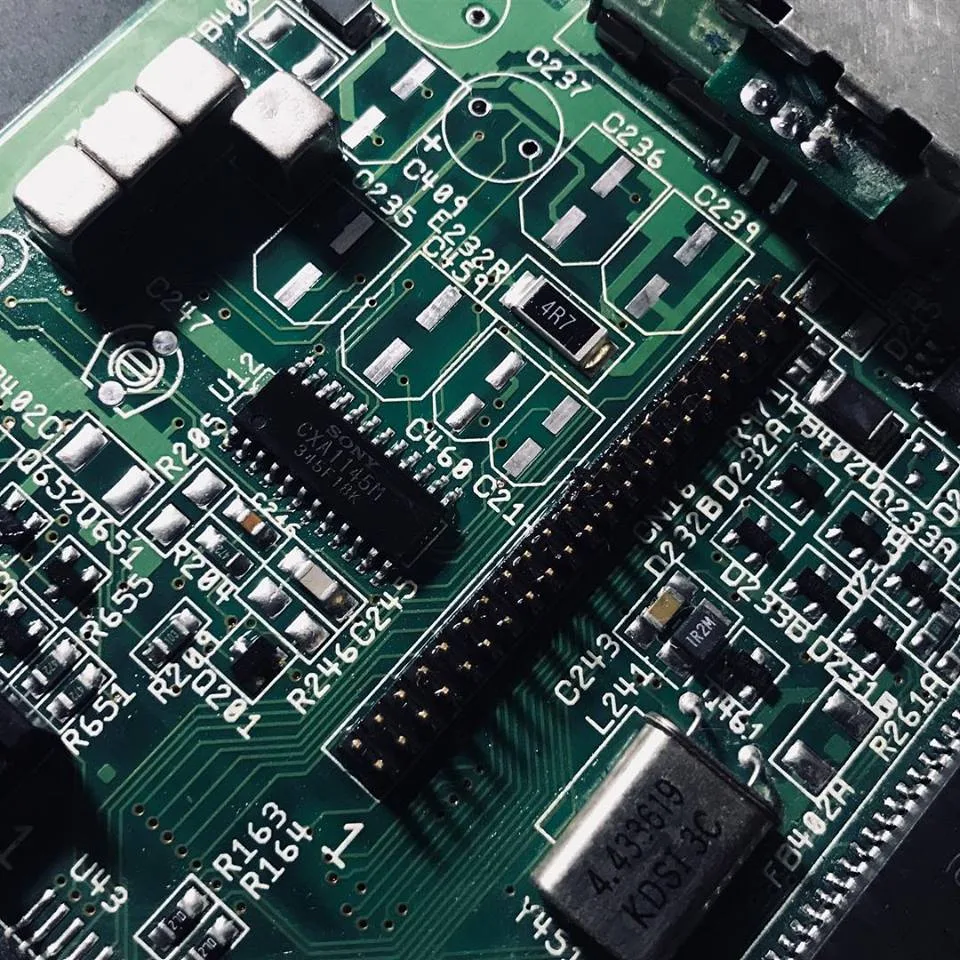

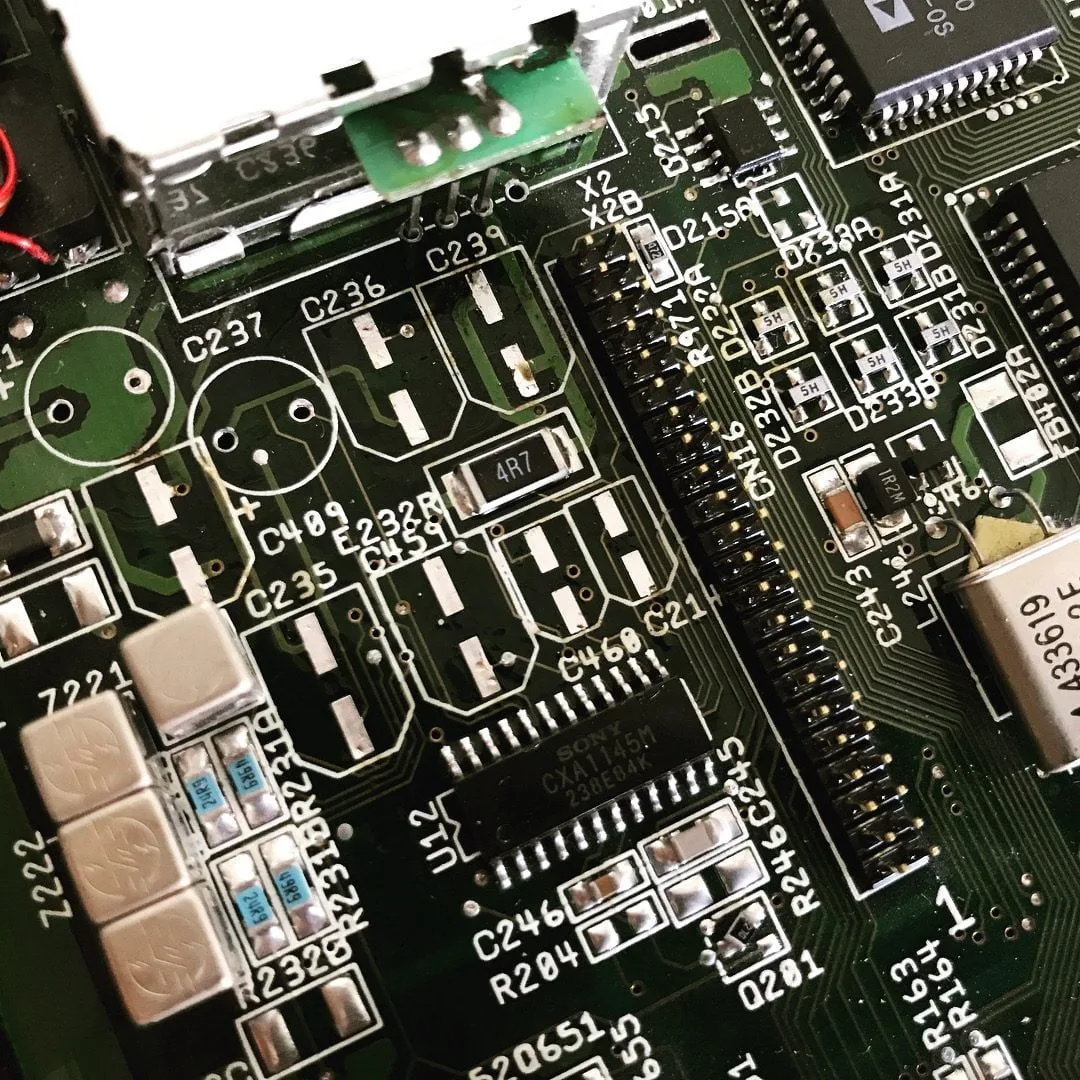

Amiga 1200 mainboard caps removed and pads cleaned up
Amiga 1200 Mainboard recapped
Amiga 1200 Mainboard
IMG_5407

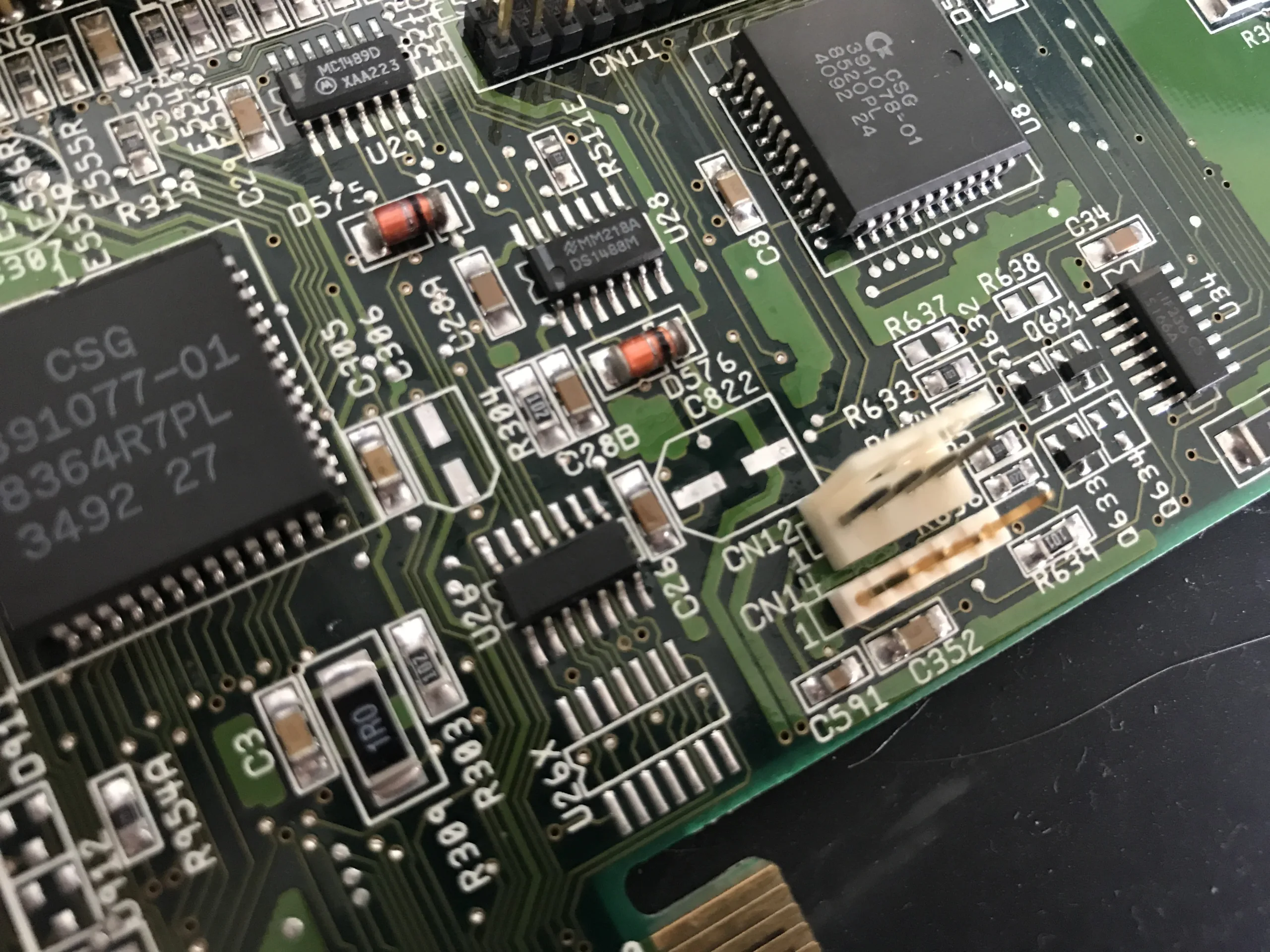

Amiga 1200 motherboard with old caps removed and then cleaned up.

Amiga A1200 Recapping Service (Standard)

£29.16 Ex. VAT

Amiga A1200 recapping service, all board revisions (1A,1B,1D1,1D4,2B). NOTE this is NOT a repair service.

  • Check the board before recapping is begun (any faults found before recapping will be reported back).
  • Removal of existing electrolytic capacitors both SMD and through hole.
  • Cleanup and preparation of areas.
  • Replace using quality electrolytic capacitors.
  • Retest (Video via RGB and Composite, Audio, Floppy Boot, CF Card boot).

Common issues recapping may solve:

  • Bad audio, missing channels, low volume
  • Slow boot up
  • Guru errors or random crashing

When you receive your freshly recapped motherboard back

Once your board has been returned we strongly suggest testing the board before adding any accessories or putting it back in any shielding (if it was sent without its metal shielding) or case. Many issues arise when the board is then subjected to add-ons being added or put back together without first knowing the board was working in its bare minimum state (PSU, Video/Audio only).

We offer 14 days from delivery to notify us of any issues with your recapped board of which we will send you a returns label so we can recheck our work. We do randomly take videos and photos of recapped boards to showcase our work to share on social media and other outlets. Return shipping is calculated at the checkout including £100 cover for loss or damage and we only use tracked services.

A little bit more about our Amiga recapping service and us!

We have been recapping Commodore Amiga computers since 2016 and have recapped over 400+ customer boards and 200+ of our own refurbished Amiga units, so you can rest assured that your board is in very safe hands.

We use the correct tools and methods for removing old SMD and through-hole capacitors avoiding unnecessary stress being applied to the motherboard or the copper pads themselves.

We offer ultrasonic PCB cleaning service where by the motherboard is bathed in a 60 °C deionised water bath combined with a PCB cleaner for 3 mins and then naturally dried for 24 hours. Results will vary depending on the condition of the board.

When you receive your board back, you can rest assured your board will be in the best condition to allow you to install any upgrades you have in mind, weather that be a new TF1230, TF1260, PiStorm32-Lite or a simple 8Mb Ram card.

And lastly, each board will have a sticker put on with the month/year it was recapped, what type of service was used and if it has been refurbished (ultrasonic clean) or repaired.







Work is on a 3-4 week turnaround from delivery.

SKU: A1200-RC-STD Category: Tags: , ,

You may also like…

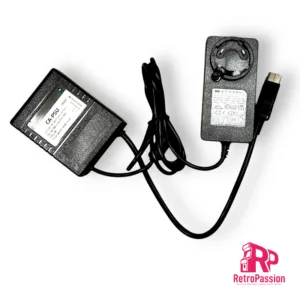

CA-PSU Commodore Amiga Individual Computers
CA-PSU Amiga A500, A500 Plus, A600, A1200

CA-PSU Amiga A500, A500 Plus, A600, A1200 (CA-PSU stands for Compact Amiga Power Supply Unit), where “compact” designates the three target computers A500, A600 and A1200. It is the first power supply on the market that fully complies with the original Commodore specifications, introducing cable drop compensation for best regulation that even settles the voltage drop in the input filter of the target computers. This means that the voltage on the main 5V rail will never deviate more then 0.9%, measured inside the computer – no matter if the computer is in vanilla configuration or heavily expanded. Conventional power supplies will either supply too-high voltage to a vanilla machine, or too-low voltage to an expanded machine, causing malfunction or even defects. This cannot happen with our cable drop compensation technology.

Technical data in short:

  • 5V, 5A, ripple/noise 50mV max. (typically 30mV)
  • Overload on 5V tolerated up to 8A for 30 seconds
  • 5V load regulation <0.6% typical, max. 0.9% under overload condition
  • 12V up to 4A
  • -12V, 0.1A
  • Modern, high-efficiency DC-DC converter technology
  • Total output power up to 60W
  • Fanless, silent, extremely low heat

CA-PSU is a two-brick solution: One mains-connected power brick and the CA-PSU converter box with the switch and square 5-pin DIN connector to the computer. This moves the power switch a lot closer to the computer, reducing the probability of inadvertent switching, for example if the power supply is under the table near your feet.

CA-PSU has the best overall efficiency on the market, with a worst-case efficiency of 80.1% (best case >82.5%). The best competing product peaks at just over 70%, and some original Commodore power supplies have an efficiency of only 55%. This means that with our CA-PSU, there’s less total heat, less power consumption and a longer life expectancy because there is less stress on the components.

Naturally, CA-PSU features over-voltage protection – every modern power supply does. We wouldn’t consider it worth mentioning, but this protection is part of a more complex block to protect your valuable classic gear: There are two critical moments that need to be taken care of: Switching on and off. CA-PSU has a controlled 5V ramp-up when switching on, ensuring safe power-up of heavily-expanded machines. Traditional power supplies without such a controlled start-up ramp tend to “swing in” to the target voltage, which might cause malfunction or even defects. Further, switching off will start a short timer, ensuring that the next switch-on event can’t happen until a few seconds after switching off. This ensures that capacitors in the computer and expansion gear are sufficiently discharged, and switching on won’t cause 3.3V regulators of modern expansions to oscillate, which may cause severe damage.

In the unlikely event that these elaborate precautions fail, CA-PSU is covered by a German product liability insurance.

This new production run of CA-PSU includes an international power brick that directly plugs into the socket (no mains cable). International adapters included are:

  • Central Europe
  • United Kingdom
  • Australia
  • USA

CA-PSU is compatible with worldwide grid voltages and frequencies (110-240V AC and 50 or 60Hz).



£70.83 Ex. VAT Add to basket

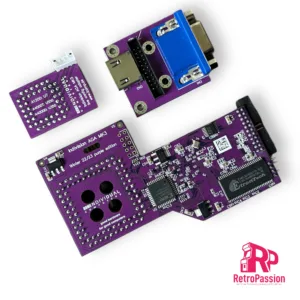

Indivision MK3 AGA for Amiga A1200 and A4000T
Indivision AGA MK3 Flickerfixer for A1200 and A4000T

Indivision AGA MK3 for the A1200 and A4000T* (Not A4000D Desktop) providing both a VGA connection or HDMI so you have the flexibility of using a CRT/LCD PC monitor with VGA or a large TV with HDMI in.

All Amiga screen modes are supported and can be sent to a digital or analogue monitor at almost any frame rate (with the exception of A2024 monitor modes). Either using standard VESA modes or using custom output frequencies and size at the user’s choice. Even custom screen modes like HighGFX can be used. Workbench resolutions of 1280×1024 pixels are possible without buying a dedicated graphics card.

Indivision AGA Mk3 is plugged over the Lisa chip and a second connection over the CIA chip to route keyboard signals to the flicker fixer. You can now make small adjustments to the output picture format including positioning and resizing of the output picture without the need to load the configuration tool. You can simply open the on screen menu using a hot-key combination make adjustments with the keyboard or mouse and then exit this live configuration menu, all this without leaving the game or demo that’s currently running.

Output screen modes can be saved “per input screen mode”, so you can adjust your favourite Workbench resolution perfectly, while not affecting the settings you’ve chosen for PAL and NTSC games. Settings are saved in the flash of the flicker fixer, so they survive a reboot and/or power-cycle of the computer this allows you to “zap” through pre-sets that are ideal for a specific game or demo. With this you can adjust on the fly different settings for the built-in scanline effect, or you can compare the scaling capabilities of your monitor with the new built-in scaler of Indivision AGA MK3.

The Indivision also has automatic monitor recognition, the configuration tool can detect what size of monitor is connected and make suggestions for ideal output frequencies that are within the specifications of the monitor. This reduces the “first setup” to a matter of minutes, maybe even seconds if you’re using one of the pre-sets for popular display panel sizes that we provide.



What’s included:

  1. Indivision AGA Mk3 for A1200/A4000T(*)
  2. Adapter board for high-definition digital (HDMI) and VGA output
  3. Adapter board for CIA chip
  4. Connection cables between all boards
  5. Short instructions

In addition, you will require:

  1. Screwdriver to open your computer
  2. A way to transfer the configuration tool (free download from our wiki)
  3. HighGFX software package from Aminet (free download for higher Workbench resolutions)





(*)This flickerfixer will not fit into an A4000T out-of-the-box. Component CE164C gets in the way of the output cable connector and must be replaced with a lower-profile version prior to installing the flickerfixer. We recommend to do this before you order the product.



Note:

** We don’t support or advise the use of the Meanwell PSU or its variants unless its an original Amiga PSU l that has been recapped (better), AT PSU or the CA-PSU. The primary reason is the PSU is the heart of the Amiga and reading the Individual Computers forum, the PSU is the 2nd item to question if there are issues. The number one issue is the socket on the Indivision is not pushed down enough as it does require a lot of pressure. Full explanation regarding the PSU is here



If you have any questions just contact us



Pictures vary, PCB colour is purple.

£191.66 Ex. VAT Select options

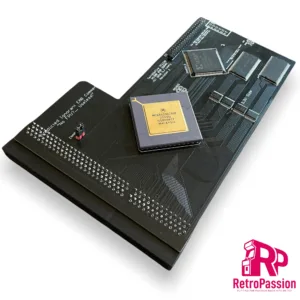

TF1230 Accelerator Amiga 1200 - Terriblefire
TF1232 Amiga Accelerator 128Mb

TF1232 Amiga Accelerator – Terriblefire for the Amiga 1200 which hosts a 68030 processor running at 50Mhz coupled with 128mb of fast ram. This card is a perfect add-on for the Amiga A1200 and is the sweet spot between cost and speed.This card is a perfect add-on for the Amiga A1200 and is the sweet spot between cost and speed. And is the next step up after the 11Mb Ex1T Fast Ram or if your budget does not quite stretch to the Terriblefire TF1260, the TF1230 A1200 card is the perfect add-on and you will notice a huge speed difference.

  • 68030 ‘Gold’ CPU running at 50MHZ (NOT OVERCLOCKED) with MMU
  • 64Mb Fast Ram
  • IDE Interface – Driver required – ehide.device or purchase our AmigaOS 3.2 Rom with ehide.device built in (uploading of AmigaOS purchase evidence required)
  • Fits in your old/new stock A1200 case!!!



Prerequisites
  • Timing fix is strongly recommended on your A1200 motherboard. We can do this free of charge if you send your board to us (return shipping does need to be covered).
  • Kickstart ROM 3.1, 3.1.4, 3.2, 3.x or 3.9 (not compatible with 3.0).
  • Some boards do not have a chamfered edge on the connector (1A and 1B boards) which may bend the connector pins, if your unsure please ask.



What is TerribleFire?

Well it’s not what it’s who, and that person is Stephen Leary who has designed a whole host of accelerators and ram cards for the Amiga A500, A1200 and Amiga CD32. These include many but the most common ones are:





£158.33 Ex. VAT Select options
Amiga A1200 Recapping Service (PREMIUM)
Amiga A1200 Recapping Service (PREMIUM)

Amiga A1200 recapping service (Premium) using hybrid polymer capacitors (never leak again!), all board revisions (1A,1B,1D1,1D4,2B). NOTE this is NOT a repair service.

  • Check of the board before recapping is begun (any faults found before recapping will be reported back)
  • Removal of existing capacitors (both SMD and radial capacitors).
  • Cleanup and preparation of area.
  • Replace using either polymer Panasonic/Wurth/KEMET capacitors.
  • Retest (Video, Audio, Floppy Boot, CF Card boot).

Want to know more about recapping, check out our FAQ’s



Overseas recapping orders

Overseas orders are very welcome and we are able to provide you return shipping costs at the checkout.

To do this add any of our recapping services to your shopping basket and then at the checkout simply fill in the billing and shipping form including your telephone and email address (important) and click the ‘Request a quote‘ link.

You will receive an email within 24hrs with the shipping cost and you can then proceed with the order by clicking on the ‘Complete your order‘ within the email. There is no need to leave the checkout page open your web browser.



£45.83 Ex. VAT Select options

Related Products

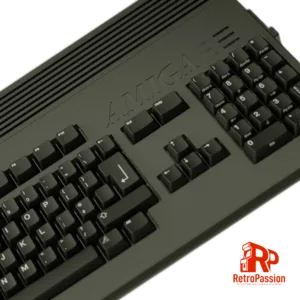

Amiga A1200 Black Case RetroPassion
Amiga A1200 Black Case and Mechanical Keyboard Bundle

Amiga A1200 black case and A1200.net mechanical keyboard bundle:



What’s included?

  • Top case including enhancements
  • Bottom case including enhancements
  • Enhanced bottom trapdoor with extra vents.
  • Enhanced rear trapdoor + extra plastic holder DVI / VGA shaped hole.
  • Rubber feet
  • NEW A1200.net Amiga Mechanical Keyboard
  • New A1200.net black amiga keycaps



This bundle is perfect for:



So what are the differences between the original Commodore case and the New A1200 case?

  • All screws are secured with metal brass inserts. No more broken plastic clips.
  • The bottom trapdoor has extra vents for a better case air flow.
  • 2 new rear trapdoors are available to accommodate VGA and DVI. The third one is a Plain door.
  • The case supports the following modern devices : Raspberry Pi©, MiST© FPGA, Keyrah© V3 keyboard adapter, RapidRoad© Double USB and Lotharek© HxC Floppy emulator, Flashfloppy



Checkout this review of the prototype unit:





Image for illustrative purposes only



£208.33 Ex. VAT Select options
Amiga A1200 Keyboard Refurbished
A1200 (Original) Keyboard with Black Keycaps

A1200 (Original) keyboard fully working with brand new black keycaps, multiple keyboard layouts available! These are perfect to give a new lease of life to any Amiga A1200 and us fully compatible with:

Professionally refurbished Amiga A1200 keyboards stripped down, cleaned and then replacement keycaps fitted and fully tested. Note the metal back plate and plastic layer will show signs of age.

We also sell the Amiga keycaps themselves and are available in UK, US, FR and DE layouts and are compatible with the Amiga A500, A600 (green membrane version), A1200 and CDTV.

We also sell the A1200.NET A1200 Mechanical Keyboard

£141.66 Ex. VAT Select options
TF1260 TerribleFire A1200 Accelerator
TF1260 TerribleFire A1200 Accelerator – NO CPU

TF1260 TerribleFire Amiga 1200 Accelerator which hosts 64Mb Fast Ram, IDE connector (DOES NOT INCLUDE 68060 PROCESSOR). The TF1260 is one of the best 060 accelerators you can purchase for the Amiga 1200 And is the next step up after the TF1230 A1200 Accelerator add-on we sell for those that want that large speed jump.

Full specs:

  • 128MByte of fast-ram.
  • IDE Interface – Driver required – ehide.device
  • Compatible with any A1200 motherboard revision.
  • Fits in your old/new stock A1200 case!!!
  • Just add your choice of 68060 processor!



Processor support:

The TF1260 TerribleFire supports all genuine 68060 processors including:

  • MC68060RC50 or XC68060RC50 (Complete with MMU & FPU)
  • MC68LC060RC50 or XC68LC060RC50 (MMU No FPU)
  • MC68EC060RC50 or XC68EC060RC50 (No MMU or FPU)

Only purchase this card if you know you have a genuine 68060 processor, The low end versions that have no MMU or FPU are more often genuine.



Prerequisites

  • Timing fix is strongly recommended on your A1200 motherboard. We can do this free of charge if you send your board to us (return shipping does need to be covered).
  • Kickstart ROM 3.1, 3.1.4, 3.2, 3.x or 3.9 (not compatible with 3.0).



What is Terriblefire?

Well it’s not what it’s who, and that person is Stephen Leary who has designed a whole host of accelerators and ram cards for the Amiga A500, A1200 and Amiga CD32. These include many but the most common ones are:



NOTES:

  • For every TF1260 sold we donate a percentage of the sale to Stephen Leary to support further TF card developments and we also support our builders.
  • Timing fix is recommended on your A1200 motherboard. We can do this free of charge if you send your board to us (return shipping does need to be covered).
  • Cards sold as is, they are fully tested and a video will be shared of your card working before shipping.
  • We don’t provide any advice or support for overclocking these cards, these are sold as 50Mhz. if you wish to overclock that is your choice. Heatsink and or fan required for overclocking.



£191.66 Ex. VAT Select options

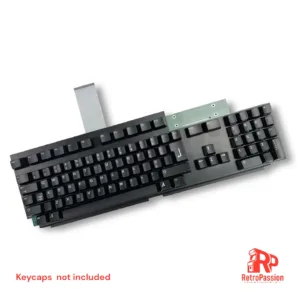

Amiga A1200 A500 mechanical Keyboard
Amiga A1200 Mechanical Keyboard A1200.NET

Amiga A1200 mechanical keyboard (also for Amiga A500) was developed by A1200.NET. The keyboard itself has been designed from the ground up and is fully compatible with the Amiga A1200, and Amiga A500 (with optional adaptor board) and is a direct plug-and-play replacement using the included ribbon cable for the A1200 and for Amiga 500 users the keyboard requires the optional Amiga 500 daughter-board, the controller mounts on the top right of the keyboard and connects via a custom U-shaped ribbon cable beneath the keyboard, then links to the A500 motherboard through a serial wire mirroring the original mounting location and ensuring perfect compatibility.

Designed into the new Amiga A1200 mechanical keyboard is a modular controller bay, different daughter boards can be added to adapt the same base keyboard to various Amiga models thus allowing DIY modules to be developed by individuals or hardware enthusiasts.

The keyboard is 100% compatible with the following:

Motherboards and adaptors:

Cases:

Keycaps:





Amiga A1200 Mechanical Keyboard Contents:

  • Metal Body Armor
  • ISO Layout
  • Space Bar Stabilizer and FPC Ribbon cable included
  • Keycaps NOT included (available as an option below)



Checkout this review of the prototype unit:









£99.99 Ex. VAT Select options
A1200 Case LEDs Amiga
A1200 Case LED Board

A1200 Case LED board with power LED (green), floppy LED (yellow) and HDD LED (yellow). A simple replacement for your current Amiga 1200 LED board if its faulty or a great addition for the new A1200.net cases.

£9.16 Ex. VAT Read more
Amiga 1200 Mainboard Recapped with modulator removed
Amiga 1200 Recapping, Modulator, Timing Fix (Standard)

Amiga 1200 capacitor replacement service, all board revisions (1A,1B,1D1,1D4,2B). NOTE this is NOT a repair service.

  • Check of the board before recapping is begun (any faults found before recapping will be reported back)
  • Removal of existing capacitors (both SMD and radial capacitors).
  • Cleanup and preparation of area.
  • Replace using quality Panasonic/Wurth/KEMET capacitors.
  • Retest (Video, Audio, Floppy Boot, CF Card boot)
  • FREE return postage of your recapped board.



£37.00 Ex. VAT Add to basket

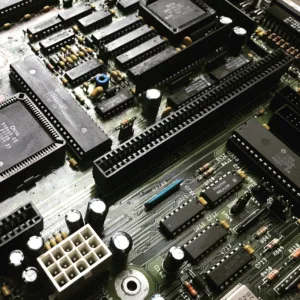

Amiga 3000 Recap
Amiga 3000 Recapping Service (Standard)

Amiga 3000 capacitor replacement service, all board revisions, NOTE this is NOT a repair service.

  • Check of the board before recapping is begun.
  • Removal of existing capacitors.
  • Clean-up and preparation of area.
  • Replace using quality capacitors.
  • Retest (Video, Audio, Floppy Boot, SCSI (if HDD is present)



Please send motherboard with daughter board.



£70.83 Ex. VAT Add to basket

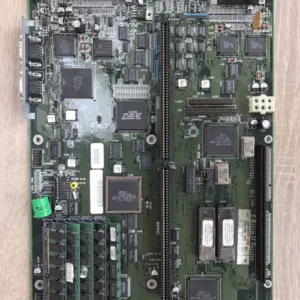

Amiga 4000 Recapped Board
