Amiga A4000TX ATX A4000D Build Service

Amiga A4000TX Build Service ATX Form Factor

£1,795.95 Ex. VAT

Amiga 4000TX build service, this is identical to the Amiga A4000D however this has been reimagined into the standard ATX form factor and uses a standard ATX PSU.

SKU: A4000TX-BUILD Category: Tags: , ,

Description

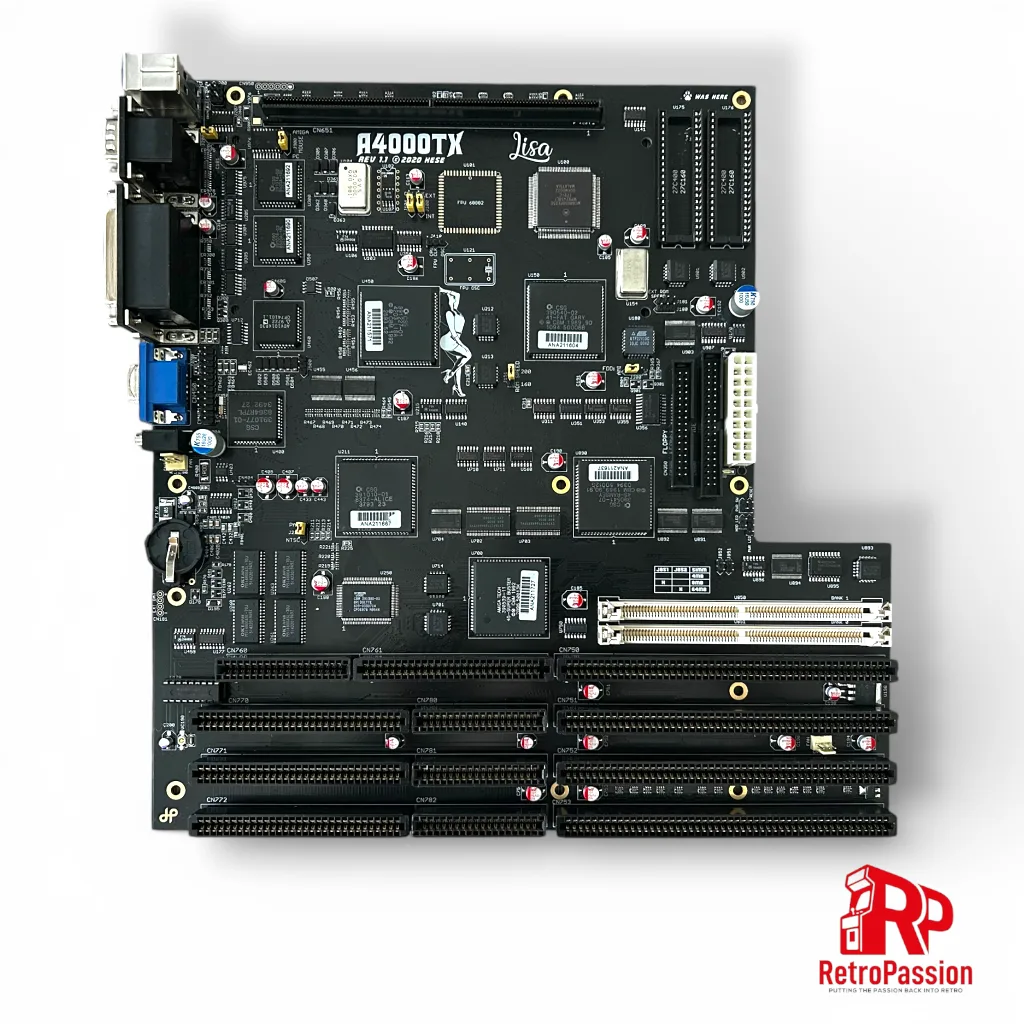

The Amiga A4000TX build service uses the new A4000TX motherboard which is based on the A4000cr motherboard and daughterboard which has been embedded together in to the hybrid ATX/EATX form factor, this means this will fit in any standard ATX case. Also during the development additional features have been added.



Main features:

  • Fits into (E)ATX cases
  • Utilises the standard ATX power supply
  • Amiga AGA custom chipset
  • CPU slot connector for accelerator cards like the BFG9060
  • Integrated 68030 CPU
  • Integrated 68882 FPU
  • 2 MB Chip RAM onboard
  • Four full-length Zorro III slots
  • three ISA slots
  • Extended video slot
  • 3.5″ IDE socket
  • Internal floppy port
  • PS/2 keyboard port supporting Amiga and PC keyboards (PC work in progress)
  • PS/2 mouse port (work in progress)
  • Amiga mouse and joystick ports
  • Both serial and parallel ports
  • 15-pin VGA port with 15kHz (ONLY) RGB output
  • 24-pin breakout header with full RGB port support (for external scandoublers, genlocks, SCART cables, etc..)
  • 3.5mm stereo jack
  • On-board RTC with battery



A 10% non refundable deposit is required to start the build process, if sending a donor board then no deposit is required.



*Custom chips are new old stock and have not been removed from working original boards.





Additional information

Weight 2 kg
Dimensions 30 × 20 × 3 cm
