PiStorm32-Lite Rear Panel HDMI – USB – SD
£33.33 Ex. VAT
- White
- Black
- Gray
When purchasing, leave a note of the colour required.
Whats included:
- Rear Panel
- Micro HDMI Extension Cable
- MicroSD Extension Cable
- USB Extension Cable
- M3 Screw and nut
This is for the Pistorm32-Lite with Raspberry Pi3A+
Checkout the other great work the developer has created here
OUT OF STOCK
You may also like…
PiStorm32-Lite CM4, Expansion Breakout & 64Gb SD Card Bundle
PiStorm32-Lite CM4 bundle with Raspberry Pi CM4 module, expansion breakout with HDMI, Ethernet, USB and 64Gb SD Card. This is fully assembled, just installed Workbench.
What’s included:
- Pistorm32-Lite adapter
- CM4 Adapter (Allows connection of Expansion Breakout and Compute Module 4)
- Raspberry Pi CM4 module with Wifi (Supports AmiKit also)
- Passive Cooler
- Expansion Breakout that provides HDMI, USB and Ethernet Ports
- SD Card 64GB Sandisk Ultra (pre installed EMU68 on 200MB partition) Optional upgrade to AmiKit Pistorm edition*
- Flex wire 40 Pin 20cm
- Printed IO cover (3D printed)
Now with an added option of AmiKit and AmigaOS 3.2.2 plug and play options*. Now with WiFI**!
NOTE: The PiStorm32-Lite CM4 product is a open source project and will require some knowledge of the Amiga.
*AmiKit Pistorm Edition requires AmigaOS 3.2 installation disks (ADF) and an internet connection, full details here.
** Wifi (wifipi.device) is still in alpha, which means that it can (and will) contain bugs. For this version you need to set up an unencrypted 2.4GHz wireless network (without a password). However, you can hide it in your router settings so that no one else can see it and connect to it. Future versions will bring WPA/WPA2 encryption.
Amiga A1200 Recapping Service (PREMIUM)
Amiga A1200 recapping service (Premium) using hybrid polymer capacitors (never leak again!), all board revisions (1A,1B,1D1,1D4,2B). NOTE this is NOT a repair service.
- Check of the board before recapping is begun (any faults found before recapping will be reported back)
- Removal of existing capacitors (both SMD and radial capacitors).
- Cleanup and preparation of area.
- Replace using either polymer Panasonic/Wurth/KEMET capacitors.
- Retest (Video, Audio, Floppy Boot, CF Card boot).
Want to know more about recapping, check out our FAQ’s
Overseas recapping orders
Overseas orders are very welcome and we are able to provide you return shipping costs at the checkout.
To do this add any of our recapping services to your shopping basket and then at the checkout simply fill in the billing and shipping form including your telephone and email address (important) and click the ‘Request a quote‘ link.
You will receive an email within 24hrs with the shipping cost and you can then proceed with the order by clicking on the ‘Complete your order‘ within the email. There is no need to leave the checkout page open your web browser.
PiStorm32 Lite for Amiga A1200 Adaptor Only
PiStorm32 Lite Adaptor for the Amiga A1200 is designed to connect one of the Raspberry Pi’s listed below (not included)
NOTE: We do sell a plug and play package here which includes PiStorm32-Lite, Raspberry Pi 3A & SD Card.
Once you add your own Raspberry Pi, setup an SD card and plug it in the trapdoor of the A1200 like all A1200 accelerators (TF1230 or TF1260) you will have an accelerated Amiga 1200!
Compatible Rasperry Pi’s:
- Raspberry Pi 3A
- Raspbery Pi 3B
- Raspberry Pi 4B
Want to know more about the PiStorm check out the following link: https://github.com/PiStorm/pistorm32-lite-hardware
Compatible Rasperry Pi’s:
- Raspberry Pi 3A
- Raspbery Pi 3B
- Raspberry Pi 4B
With the Pistorm32-lite the A1200 can go up to a 68040 and using a Pi4 you could see 2000 Plus Mips!
Want to know more about the PiStorm check out the following link: https://github.com/PiStorm/pistorm32-lite-hardware
The PiStorm adaptors are professionally manufactured. and a contribution to the developer is made to support this project.
PiStorm32 Lite A1200 with RPi 3A+, 64Gb SD Card
PiStorm32-Lite A1200 is the full package which includes:
- PiStorm32-Lite A1200 Adaptor
- Raspberry Pi 3A+ Module
- 64Gb SD Card (Pre-installed kernel with EMU68) You will need a copy of Workbench 3.0 or above and a kickstart rom again 3.1 or above or send us an SD image and we will install and setup FOC.
- 3D printed RPi header protector
Once installed and setup you will have an implementation of MC68020/030/040 with FPU support, coupled with a fast implementation of the Emu68 CPU unit (Emu68 is a JIT emulator) written by Michal Schulz, thanks to it the system boots in a few seconds. Extra functionality is added (thanks to an additional RPi 3A+ module) with an HDMI port, so you can have Full HD video and around 340MB of Fast Ram.
Check out this video by Capt. LeChuck, Pistorm32-Lite with EMU68K
We also just sell the Pistorm32-Lite adaptor here, just add you own Raspberry Pi and SD Card.
NOTE: This is a open source project and will require some knowledge of the Amiga. The PiStorm adaptors are professionally manufactured, and a contribution to the developer is made.
Related Products
Amiga A1200 Mechanical Keyboard A1200.NET
Amiga A1200 mechanical keyboard (also for Amiga A500) was developed by A1200.NET. The keyboard itself has been designed from the ground up and is fully compatible with the Amiga A1200, and Amiga A500 (with optional adaptor board) and is a direct plug-and-play replacement using the included ribbon cable for the A1200 and for Amiga 500 users the keyboard requires the optional Amiga 500 daughter-board, the controller mounts on the top right of the keyboard and connects via a custom U-shaped ribbon cable beneath the keyboard, then links to the A500 motherboard through a serial wire mirroring the original mounting location and ensuring perfect compatibility.
Designed into the new Amiga A1200 mechanical keyboard is a modular controller bay, different daughter boards can be added to adapt the same base keyboard to various Amiga models thus allowing DIY modules to be developed by individuals or hardware enthusiasts.
The keyboard is 100% compatible with the following:
Motherboards and adaptors:
- Original Amiga A1200 Motherboard (all revs)
- A1200 ReAmiga Motherboard
- Keyrah V3
- A1200NG
- Amiga A500 and A500 Plus (all revs)
- Amiga A500 RAEMIXX
Cases:
- Original A1200 cases
- Asahi A1200 cases
- A1200.net A1200 cases
- A1200.net A500 cases
Keycaps:
- Original A1200 keycaps
- New A1200.net Keycaps
Amiga A1200 Mechanical Keyboard Contents:
- Metal Body Armor
- ISO Layout
- Space Bar Stabilizer and FPC Ribbon cable included
- Keycaps NOT included (available as an option below)
Checkout this review of the prototype unit:
ACE2b Amiga A500 A2000 2Mb Chipram Upgrade
ACE2b Amiga Chipram Extender 2MBytes. It is installed in the socket of the Fat Agnus chip of your OCS/ECS Amiga. It is compatible with these Amiga models:
- A500 up to board rev. 7
- A1500 and A2000, Rev. 4.1 and higher
- CDTV
- A2500 Rev. 4.1 and higher
The unit requires no soldering, but does require the removal of the existing AGNUS chip from the motherboard. The ACE2b then simply slots in to the existing AGNUS socket and the GARY adapter is socketed between the GARY socket and the GARY chip.
The ACE2b is jumpeless and does not rely on existing memory to be present so no ram is required in the trapdoor of the A500 as the ACE2b has the full 2Mb Chipram is located on the PCB itself, the chip ram on the main board of your Amiga will not be used any more.
ACE2b uses an ECS Agnus 8375 (included) that is switchable between PAL and NTSC video mode by software. It is compatible with Genlock interfaces. ACE2b starts up in NTSC mode. If you own an ACA500 or ACA500plus, you can fix the video mode to your preferred setting.
What’s included:
- ACE2b PCB with Gary Adaptor
- 8375 2Mb Agnus PLCC
We do offer an installation service, by all means contact us.
Amiga A1200 Black Case and Mechanical Keyboard Bundle
Amiga A1200 black case and A1200.net mechanical keyboard bundle:
What’s included?
- Top case including enhancements
- Bottom case including enhancements
- Enhanced bottom trapdoor with extra vents.
- Enhanced rear trapdoor + extra plastic holder DVI / VGA shaped hole.
- Rubber feet
- NEW A1200.net Amiga Mechanical Keyboard
- New A1200.net black amiga keycaps
This bundle is perfect for:
- Original A1200 Motherboards (all revs)
- Re-Amiga A1200
- A1200NG Motherboard
- Raspberry Pi builds using the Keyrah V3
So what are the differences between the original Commodore case and the New A1200 case?
- All screws are secured with metal brass inserts. No more broken plastic clips.
- The bottom trapdoor has extra vents for a better case air flow.
- 2 new rear trapdoors are available to accommodate VGA and DVI. The third one is a Plain door.
- The case supports the following modern devices : Raspberry Pi©, MiST© FPGA, Keyrah© V3 keyboard adapter, RapidRoad© Double USB and Lotharek© HxC Floppy emulator, Flashfloppy
Checkout this review of the prototype unit:
Image for illustrative purposes only

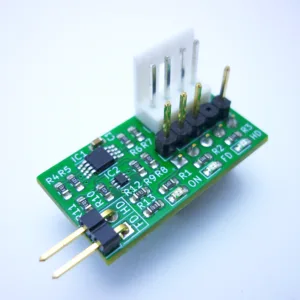

Amiga A1200 HDISK/FDISK LED Adapter
