Tsunami 1230 Amiga 1200 Accelerator

PRODUCT DISCONTINUED

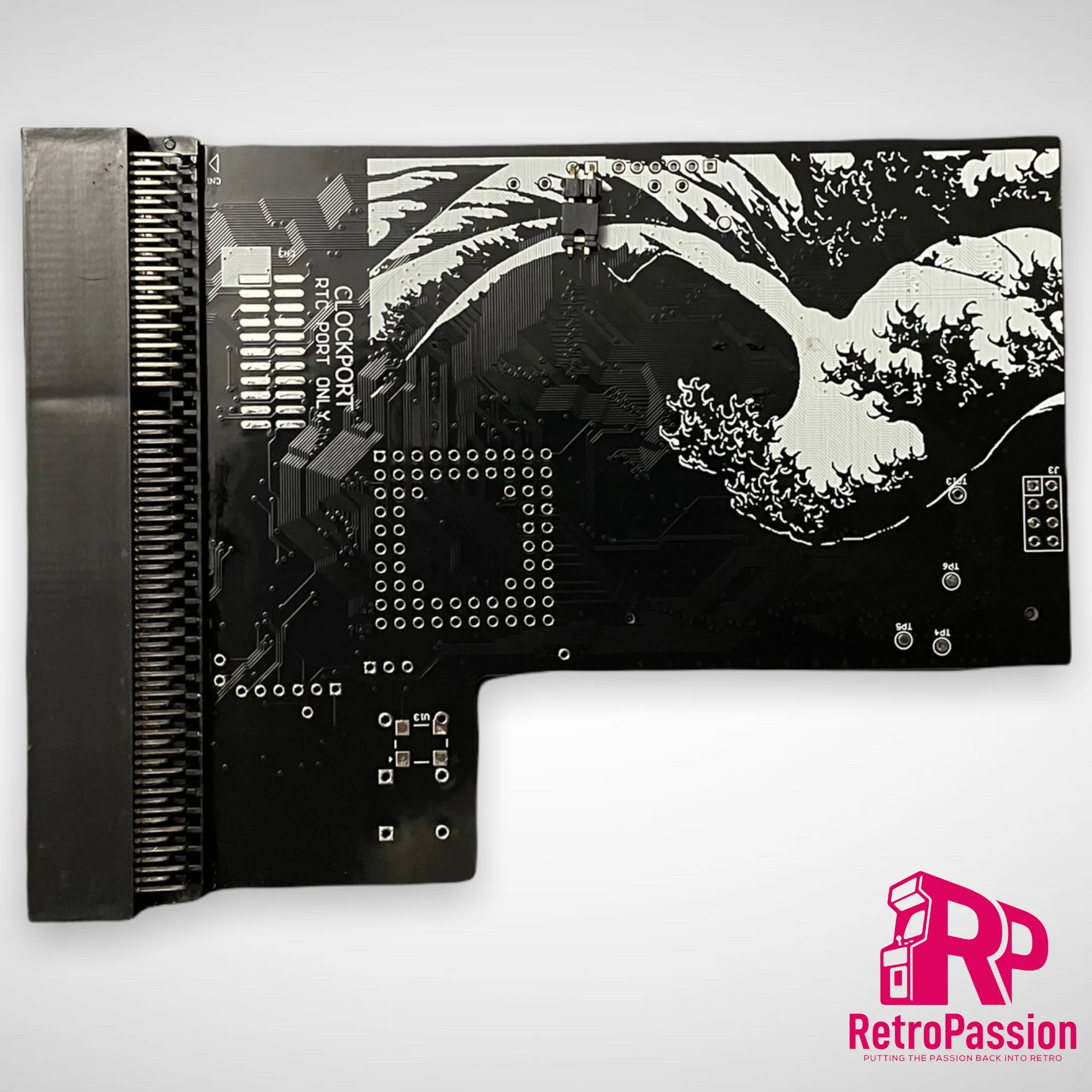

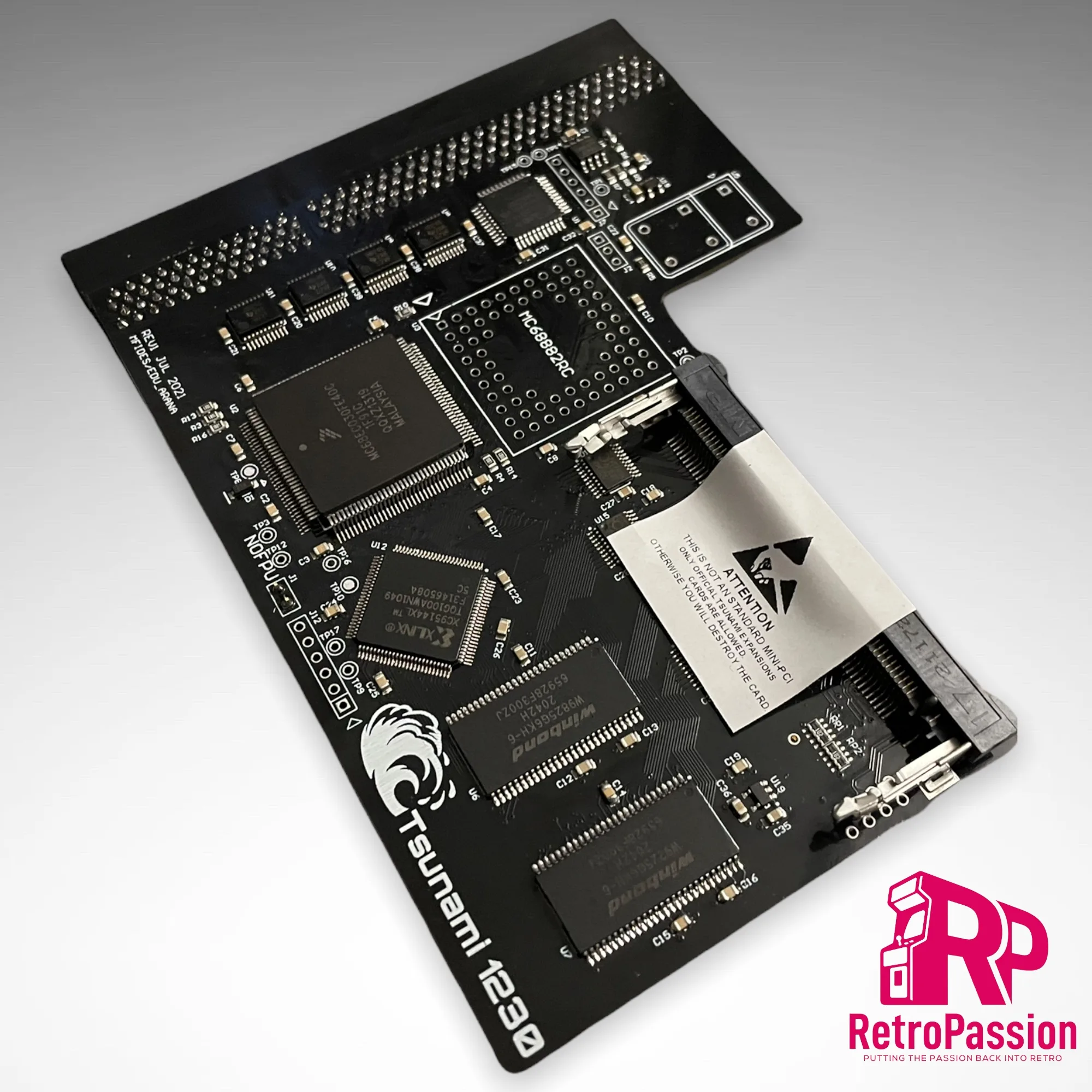

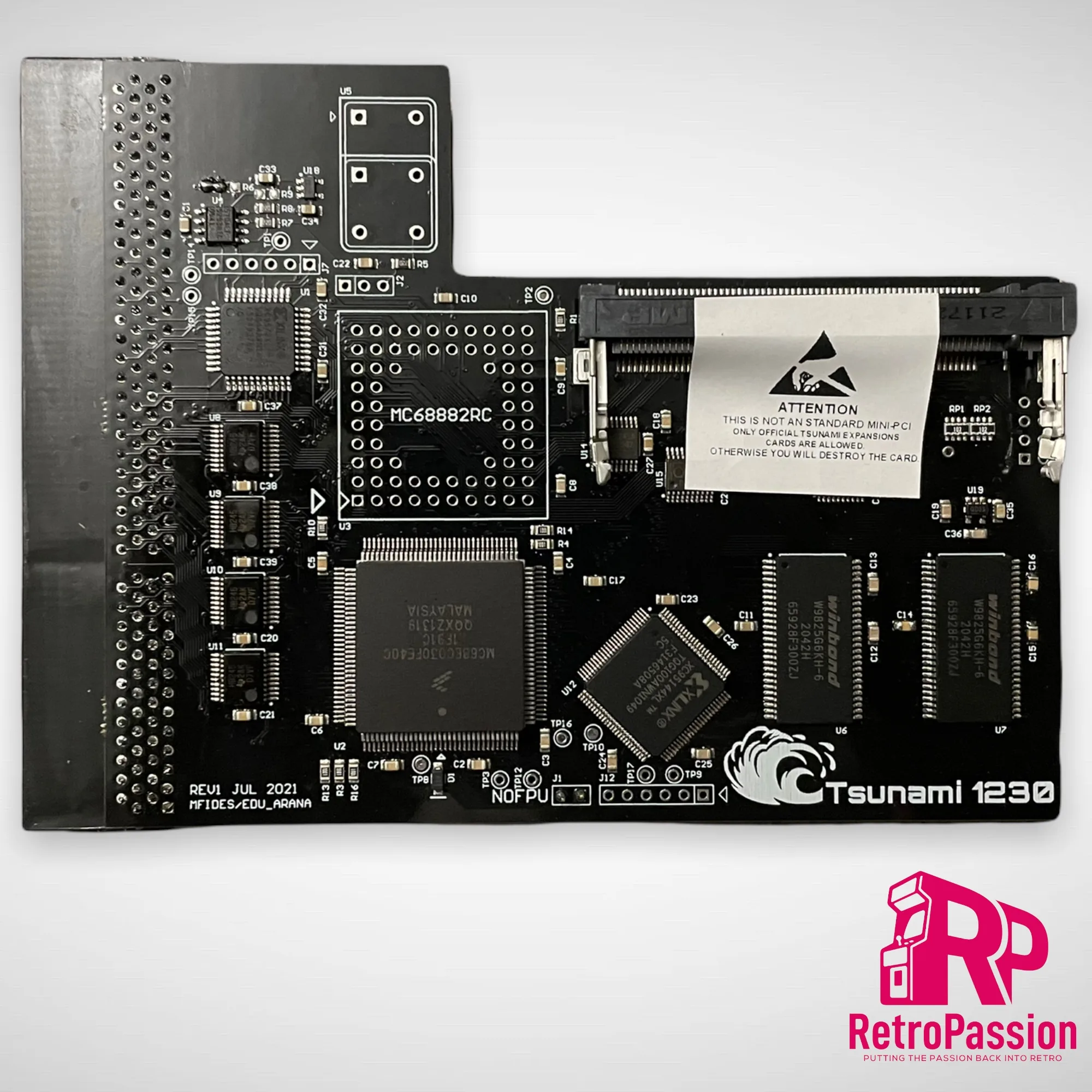

Tsunami 1230 Amiga 1200 Accelerator from Arananet which hosts a 68030 processor running at 42Mhz coupled with 64mb of fast ram, some say this is the spiritual successor to the classic Blizzard IV 68030 accelerator. The Tsunami 1230 Amiga 1200 is a brand new accelerator using modern 60EC030 CPU and modern ram.

The is a perfect add-on for the Amiga A1200 and is the sweet spot between cost and speed. And is the next step up after the 11Mb Ex1T Fast Ram add-on we sell for those that want that extra speed. 68882 PGA FPU can be added as an option below.



Full specs:

  • 68EC030 QFP CPU at 42MHZ.
  • 64MByte of fast-ram.
  • 68882 FPU footprint ready and also selectable clock for overclocking the FPU. (FPU/Oscillator/Sockets NOT INCLUDED – OPTIONS BELOW)
  • External expansion port for future upgrades (secret stuff, can’t tell)
  • Clockport port (RTC only).
  • Compatible with any A1200 motherboard revision.
  • Fits in your old/new stock A1200 case!!!
  • A1100 friendly of course!

Prerequisites

  • Timing fix is strongly recommended on your A1200 motherboard. We can do this free of charge if you send your board to us (return shipping does need to be covered).
  • Kickstart ROM 3.1, 3.1.4, 3.2, 3.x or 3.9 (not compatible with 3.0).



Here is a video comparing it to the Blizzard 1230 Mk4



Also available is the TF1230 with CPU the TF1230 (No CPU) or the TF1260 (No CPU)







This product has been discontinued.
