Amiga A1200 Keyboard Membrane (NEW)

Amiga A1200 Keyboard Membrane (New)

£29.16 Ex. VAT

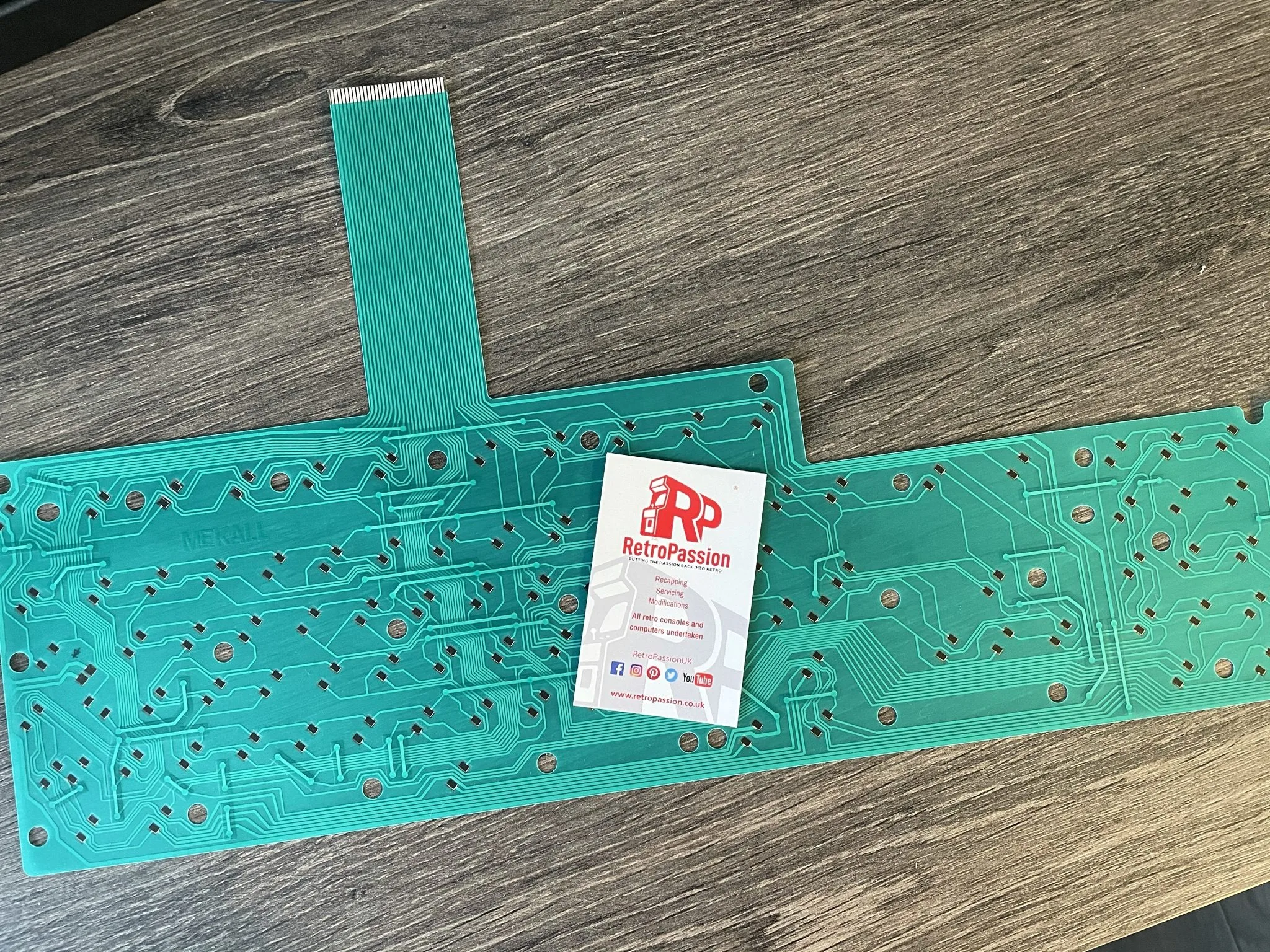

Amiga A1200 keyboard membrane brand new. These are for all original A1200 keyboards.





SKU: A1200-MEM Category: Tags: , ,

Description

Our Amiga A1200 keyboard membrane is a like for like replacement for your existing A1200 membrane. If your having issues with your A1200 keyboard with missing keys or missing rows of keys the chances are the membrane needs replacing. These Amiga A1200 membranes are based on the original Mitsumi keyboard membrane (also marked A1200-A) and original Mitsumi Model number 56C774A. These are not or required for the Amiga A1200 mechanical keyboard.

What if you have missing keys or rows of keys on the Keyboard? Try these possible fixes first:

  • Check the ribbon is inserted all the way in the connector on the Amiga A1200 mainboard.
  • If it’s only 1 or two keys the plunger may need a clean, strip down the keyboard and clean the plunger with some IPA.
  • If it’s a whole row of keys missing its a very strong possibility that the membrane on your needs replacing.
  • The final step is to trim off 1mm of the connector (the ribbon end that plugs into the A1200 mainboard).



Do let us know if any of the above fixes help you!





Additional information

Weight 0.200 kg
Dimensions 15 × 7 × 2 cm

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Product FAQ

This Product have no Question..!
