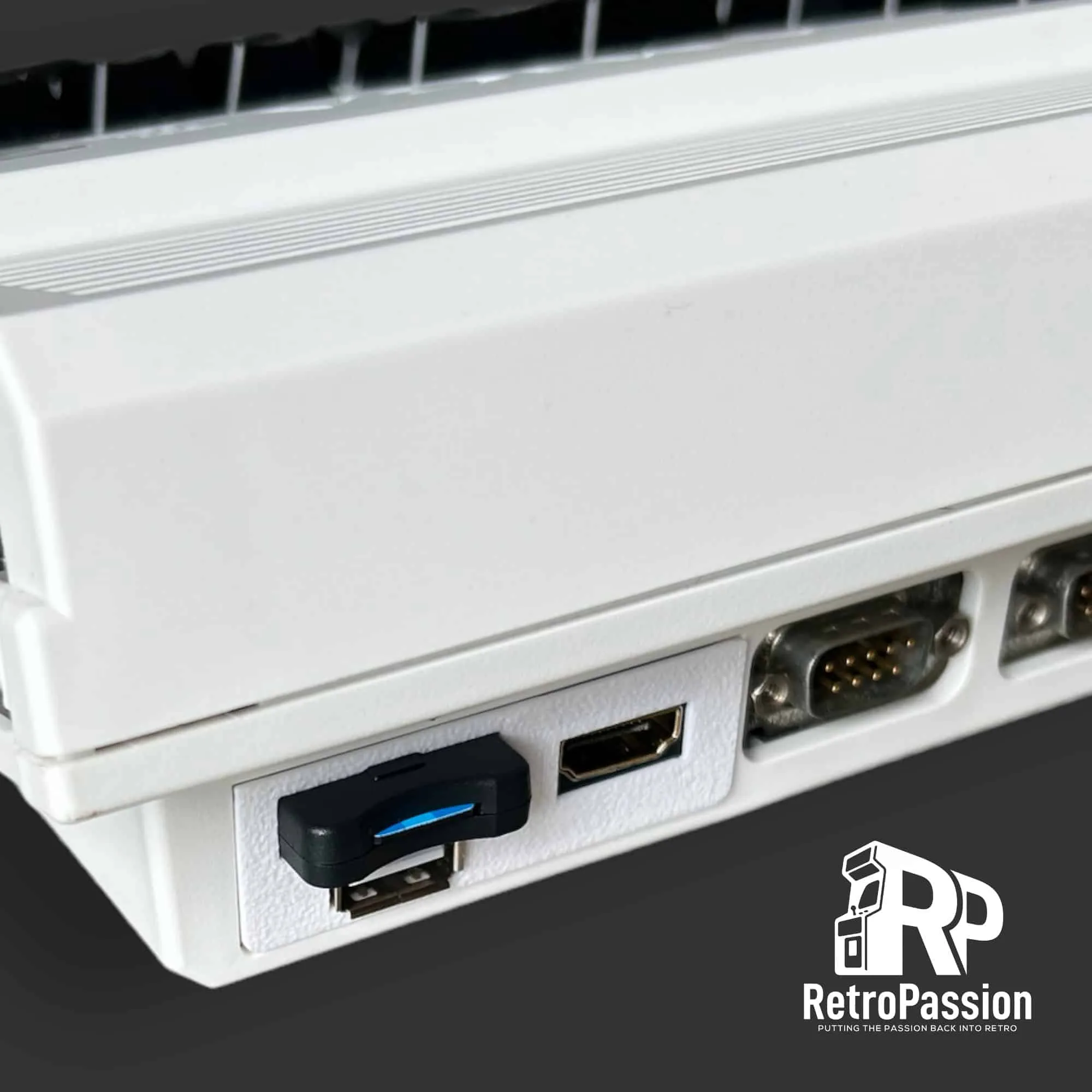

PiStorm32-Lite Rear Panel HDMI - USB & SD Card Slot

PiStorm32-Lite Rear Panel HDMI – USB – SD

£33.33 Ex. VAT

PiStorm32-Lite Rear Panel which provides easy access to the internal PiStorm32-Lite HDMI, USB and SD card slot, negates the need to open up the A1200 trapdoor and access the SD card when updates are released.
The panel is 3D printed and available in:
  • White
  • Black
  • Gray

When purchasing, leave a note of the colour required.



Whats included:

  • Rear Panel
  • Micro HDMI Extension Cable
  • MicroSD Extension Cable
  • USB Extension Cable
  • M3 Screw and nut



This is for the Pistorm32-Lite with Raspberry Pi3A+



Checkout the other great work the developer has created here



OUT OF STOCK

SKU: A1200-LED-ADAPTOR-1 Category: Tags: , ,

You may also like…

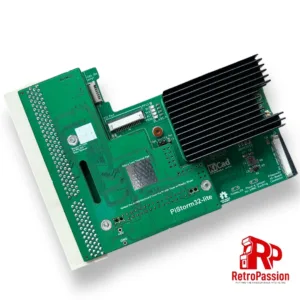

PiStorm32-Lite CM4 Module Bundle
PiStorm32-Lite CM4, Expansion Breakout & 64Gb SD Card Bundle

PiStorm32-Lite CM4 bundle with Raspberry Pi CM4 module, expansion breakout with HDMI, Ethernet, USB and 64Gb SD Card. This is fully assembled, just installed Workbench.

What’s included:

  • Pistorm32-Lite adapter
  • CM4 Adapter (Allows connection of Expansion Breakout and Compute Module 4)
  • Raspberry Pi CM4 module with Wifi (Supports AmiKit also)
  • Passive Cooler
  • Expansion Breakout that provides HDMI, USB and Ethernet Ports
  • SD Card 64GB Sandisk Ultra (pre installed EMU68 on 200MB partition) Optional upgrade to AmiKit Pistorm edition*
  • Flex wire 40 Pin 20cm
  • Printed IO cover (3D printed)





Now with an added option of AmiKit and AmigaOS 3.2.2 plug and play options*. Now with WiFI**!

AmiKit PiStorm32 SD Card



NOTE: The PiStorm32-Lite CM4 product is a open source project and will require some knowledge of the Amiga.

*AmiKit Pistorm Edition requires AmigaOS 3.2 installation disks (ADF) and an internet connection, full details here.

** Wifi (wifipi.device) is still in alpha, which means that it can (and will) contain bugs. For this version you need to set up an unencrypted 2.4GHz wireless network (without a password). However, you can hide it in your router settings so that no one else can see it and connect to it. Future versions will bring WPA/WPA2 encryption.



£183.33 Ex. VAT Read more

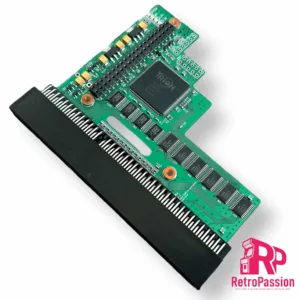

PiStorm32-Lite for Amiga A1200
PiStorm32 Lite A1200 with RPi 3A+, 64Gb SD Card

PiStorm32-Lite A1200 is the full package which includes:



  • PiStorm32-Lite A1200 Adaptor
  • Raspberry Pi 3A+ Module
  • 64Gb SD Card (Pre-installed kernel with EMU68) You will need a copy of Workbench 3.0 or above and a kickstart rom again 3.1 or above or send us an SD image and we will install and setup FOC.
  • 3D printed RPi header protector



Once installed and setup you will have an implementation of MC68020/030/040 with FPU support, coupled with a fast implementation of the Emu68 CPU unit (Emu68 is a JIT emulator) written by Michal Schulz, thanks to it the system boots in a few seconds. Extra functionality is added (thanks to an additional RPi 3A+ module) with an HDMI port, so you can have Full HD video and around 340MB of Fast Ram.



Check out this video by Capt. LeChuck, Pistorm32-Lite with EMU68K





We also just sell the Pistorm32-Lite adaptor here, just add you own Raspberry Pi and SD Card.





NOTE: This is a open source project and will require some knowledge of the Amiga. The PiStorm adaptors are professionally manufactured, and a contribution to the developer is made.





£124.99 Ex. VAT Read more
Amiga A1200 Recapping Service (PREMIUM)
Amiga A1200 Recapping Service (PREMIUM)

Amiga A1200 recapping service (Premium) using hybrid polymer capacitors (never leak again!), all board revisions (1A,1B,1D1,1D4,2B). NOTE this is NOT a repair service.

  • Check of the board before recapping is begun (any faults found before recapping will be reported back)
  • Removal of existing capacitors (both SMD and radial capacitors).
  • Cleanup and preparation of area.
  • Replace using either polymer Panasonic/Wurth/KEMET capacitors.
  • Retest (Video, Audio, Floppy Boot, CF Card boot).

Want to know more about recapping, check out our FAQ’s



Overseas recapping orders

Overseas orders are very welcome and we are able to provide you return shipping costs at the checkout.

To do this add any of our recapping services to your shopping basket and then at the checkout simply fill in the billing and shipping form including your telephone and email address (important) and click the ‘Request a quote‘ link.

You will receive an email within 24hrs with the shipping cost and you can then proceed with the order by clicking on the ‘Complete your order‘ within the email. There is no need to leave the checkout page open your web browser.



£45.83 Ex. VAT Select options

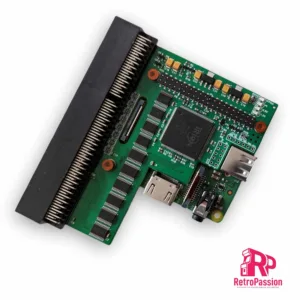

PiStorm32-Lite for Amiga A1200
