Back to Amiga A1200

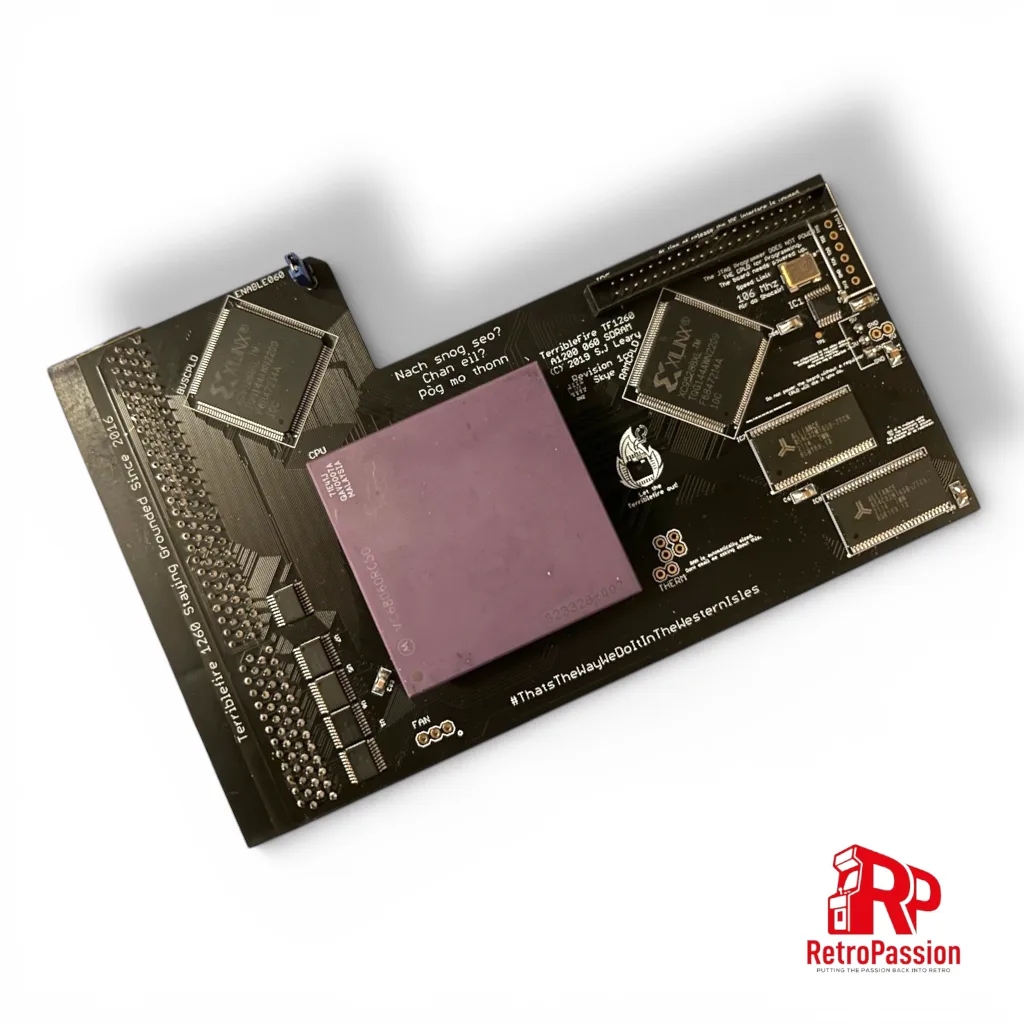

TF1260 TerribleFire A1200 Accelerator

TF1260 A1200 Accelerator 68060 50MHz CPU/FPU/MMU

£583.33 Ex. VAT

TF1260 Terriblefire A1200 Accelerator with XC68060RC50 50Mhz CPU which includes full FPU and MMU hosts 128Mb Fast Ram, IDE connector. The TF1260 is one of the best 060 accelerators you can purchase for the Amiga 1200 And is the next step up after the TF1230 A1200 Accelerator add-on we sell for those that want that large speed jump.

Full specs:

  • XC68060RC50A REV1 CPU (the CPU has the MMU and FPU).
  • 128 MByte of fast-ram.
  • IDE Interface – Driver required – ehide.device.



What is Terriblefire?

Well it’s not what it’s who, and that person is Stephen Leary who has designed a whole host of accelerators and ram cards for the Amiga A500, A1200 and Amiga CD32. These include many but the most common ones are:

  • TF328 – 8Mb Fast Ram board and IDE socket for the Amiga CD32
  • TF330 – 68030 Processor, 64Mb Fast Ram and IDE socket for the Amiga CD32
  • TF536 – 68030 Processor, 64Mb Ram and IDE interface for the Amiga A500 and A500 Plus
  • TF360 – 68060 Processor other specs TBC for the Amiga CD32
  • TF1260 – 68060 Processor, 128Mb Ram and IDE Interface for the Amiga 1200
  • TF1230 – 68030 Processor 64Mb Ram and IDE interface for the Amiga 1200
  • TF4060 – 68060 Processor 128Mb Ram for the Amiga 4000
  • TF1200 – Buffee Adaptor + 5.5Mb/8Mb (you will need the new Buffee Processor



NOTES:

  • Timing fix is recommended on your A1200 motherboard. We can do this free of charge if you send your board to us (return shipping does need to be covered).
  • At least Kickstart 3.1 is required – (Kickstart 3.0 is not supported)
  • PCB colour will vary.



OUT OF STOCK

SKU: TF1260-A1200-RC50 Categories: , Tags: , ,
