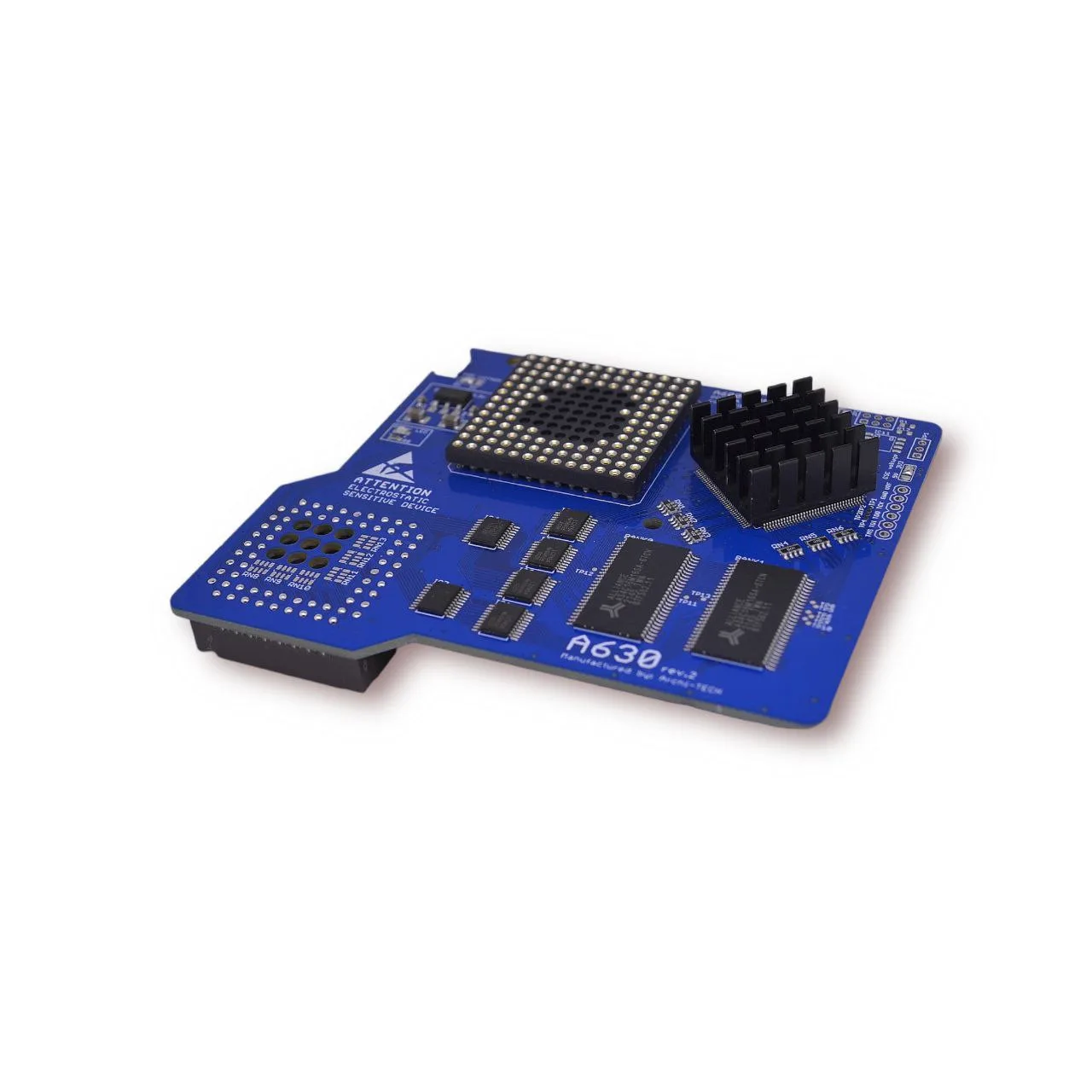

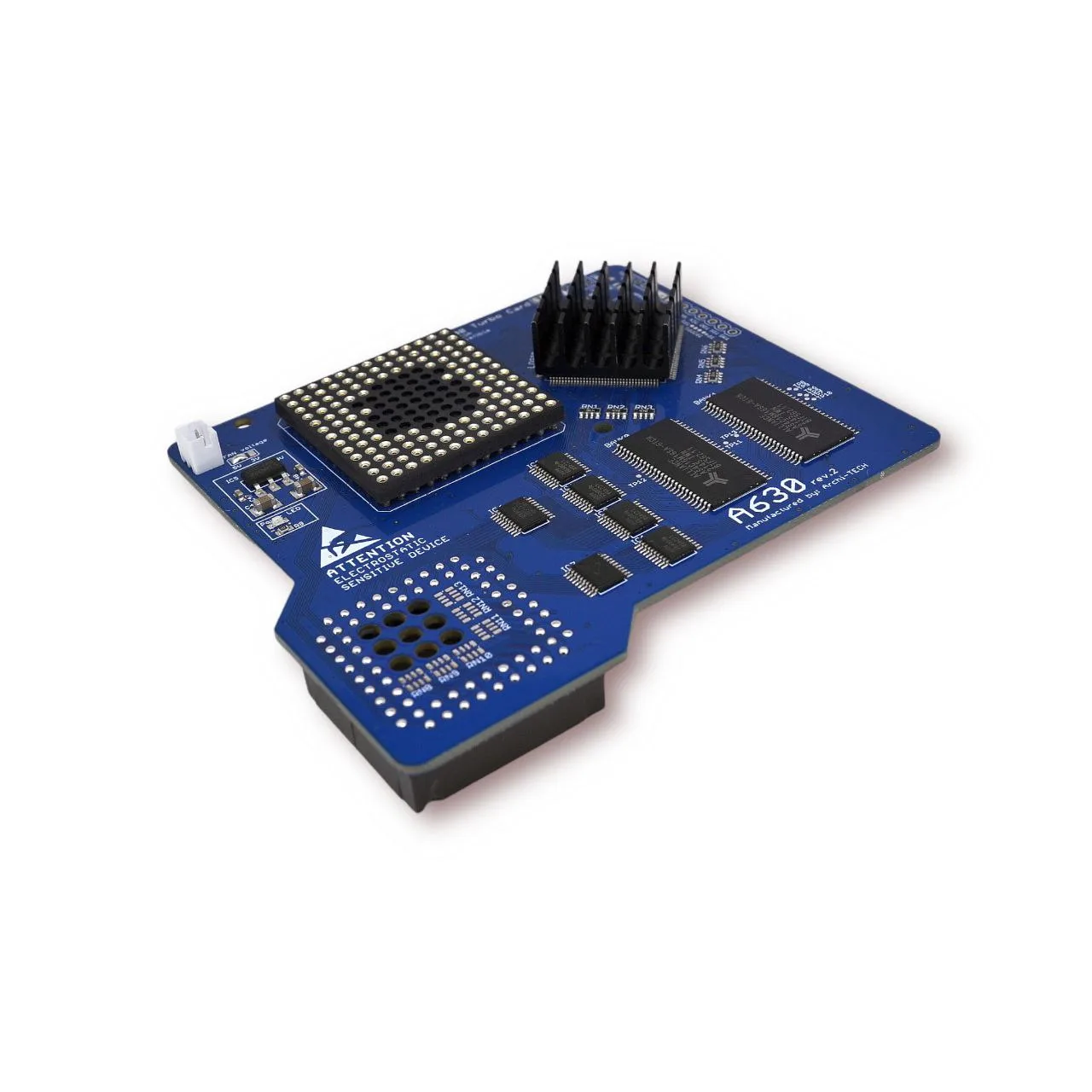

A630 REV 2 Accelerator Turbo Card A600 NO CPU
£83.33 Ex. VAT
A630 Rev 2 Accelerator Turbo Card (NO CPU VERSION) for the Amiga 600 is a modern turbo card allows you to add your own 68030 CPU. We have tested both the Gold top and ceramic versions, however we do recommend a CPU cooler and fan for the ceramic versions. The speed boost is the sweet spot for Demos, WHDLoad* gaming, internet and so on. This will give any A600 a great speedboost!
Full specs:

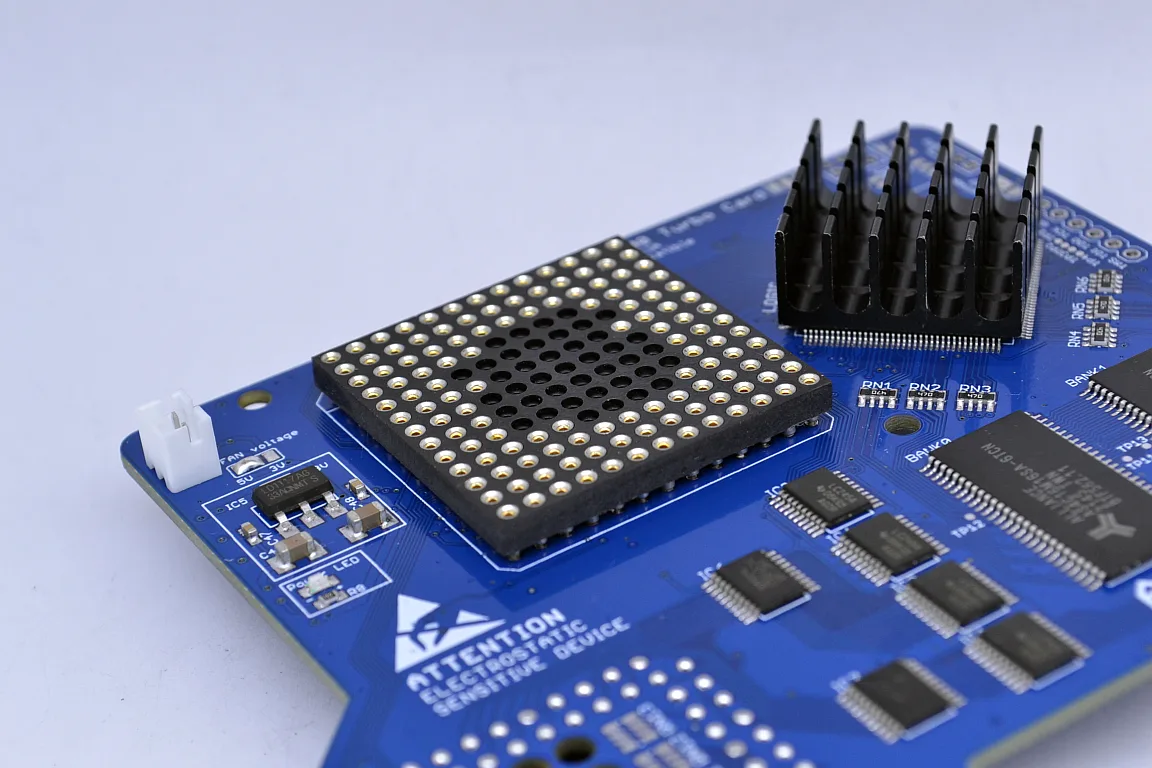

- 128 Pin PGA Socket for the Motorola 68030 PGA CPU (CPU NOT INCLUDED)
- 64MB SDRAM Fast Ram.
- Cooling: Passive or Active. No heatsink or fan is included, options are below.
- PCMCIA Friendly.
Important Information:
MMULib’s for the A630 Accelerator
The A630 Accelerator requires the installation of MMULib’s and it very important you use the right ones for the kickstart ROM you are using:
3.1 Kickstart:
http://main.aminet.net/util/libs/MMULib.lha
http://main.aminet.net/util/libs/MMULib.readme
3.2 or 3.2.1
Install the MMULib package that came with the installation CD ONLY and NOT the ones from Aminet.
Notes:
- Some demos or games may require disable “CPU CACHE” for better compatibility with the MC68000.
- The card is designed to work with 3.1 Roms and above including 3.2 and 3.2.1 of which can be purchased below.
*2Mb Chip ram is strongly recommended for WHDLoad which is available here
PCB colour will vary.
