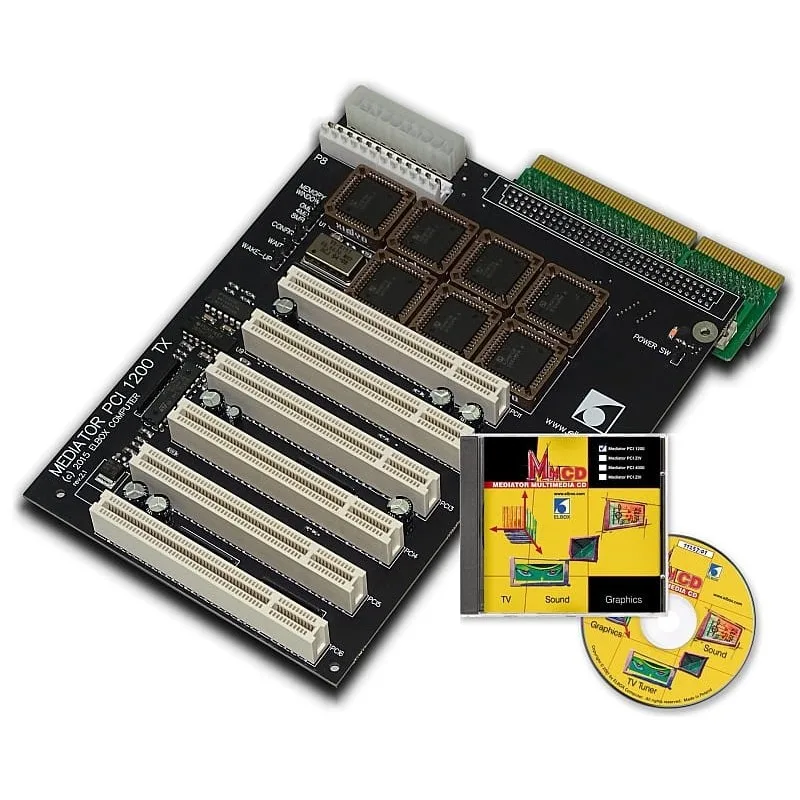

Elbox Mediator PCI 1200 TX+ BLACK

Elbox Mediator PCI 1200 TX+ busboard is designed to enable the expansion of towered Amiga 1200 with a wide range of high-performance, low-cost PCI cards.

New firmware embedded in CPLDs of MEDIATOR 1200 TX allows significant speed-up of graphic card operations when hardware 2D and 3D acceleration is used in single-processor systems (68k or PPC).

Features:
– 6 PCI slots (PCI 2.2 compatible)
– Power Management Interface
– 66/33MHz PCI clock (transfer rate up to 264MB/s)
– 32-bit PCI datapath
– 4GB PCI memory space
– Busmastering/DMA in all PCI slots
– SDRAM/SGRAM of PCI gfx card as a fast DMA buffer
– Interrupt controller (4 lines to each PCI card)
– AT and ATX PSU connectors
– Compatibility with 68030/040/060 and PPC turbo cards
– Fits in any A1200 in D-BOX, E/BOX (Power, Winner), EZ-Z4 and Infinitiv tower

Software:
– 2D graphic drivers for: Radeon 9200, Voodoo5, Voodoo4, Voodoo3, Voodoo Banshee,
– S3 Virge and S3 Virge DX PCI graphic cards
– Warp 3D drivers working with Voodoo5, Voodoo4 and Voodoo3 graphic cards
– TV tuner drivers for: most of available PCI TV tuners (over 100 models supported)
– AHI sound drivers for: Sound Blaster 4.1 Digital, Sound Blaster 128 and
– ForteMedia FM801-based sound cards (e.g. Terratec 512i Digital)
– USB drivers for the Poseidon stack for: Spider and Spider II USB 2.0 cards
– Network Sana-2 drivers for: Fast Ethernet 100Mbps PCI cards
– Network Sana-2 drivers for: Ethernet 10Mbps PCI cards

Current info about supported PCI cards is available in the Mediator Driver Guide.

Package contents:
– Mediator PCI 1200 TX black busboard
– Mediator Multimedia CD
– User’s Manual

We can also supply the Elbox BlackBOX 1200 Tower case
