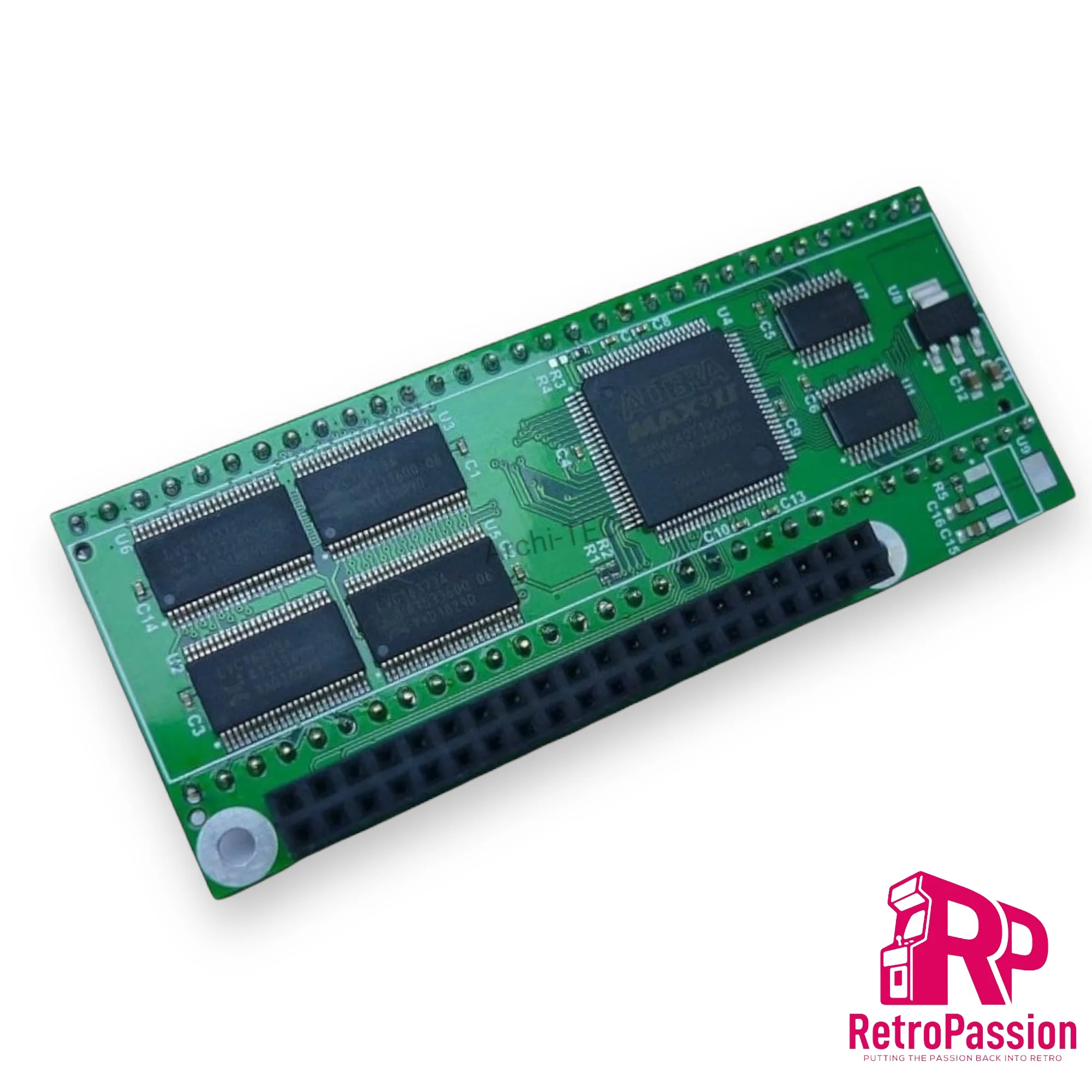

PiStorm Amiga A500 Adaptor

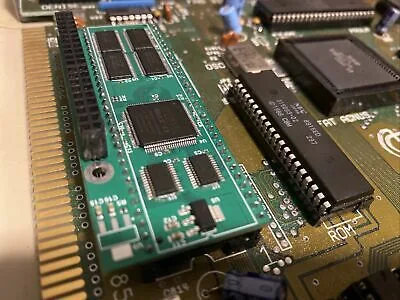

Amiga A500 PiStorm - WITHOUT RASPBERRY Pi 3A+ Installed

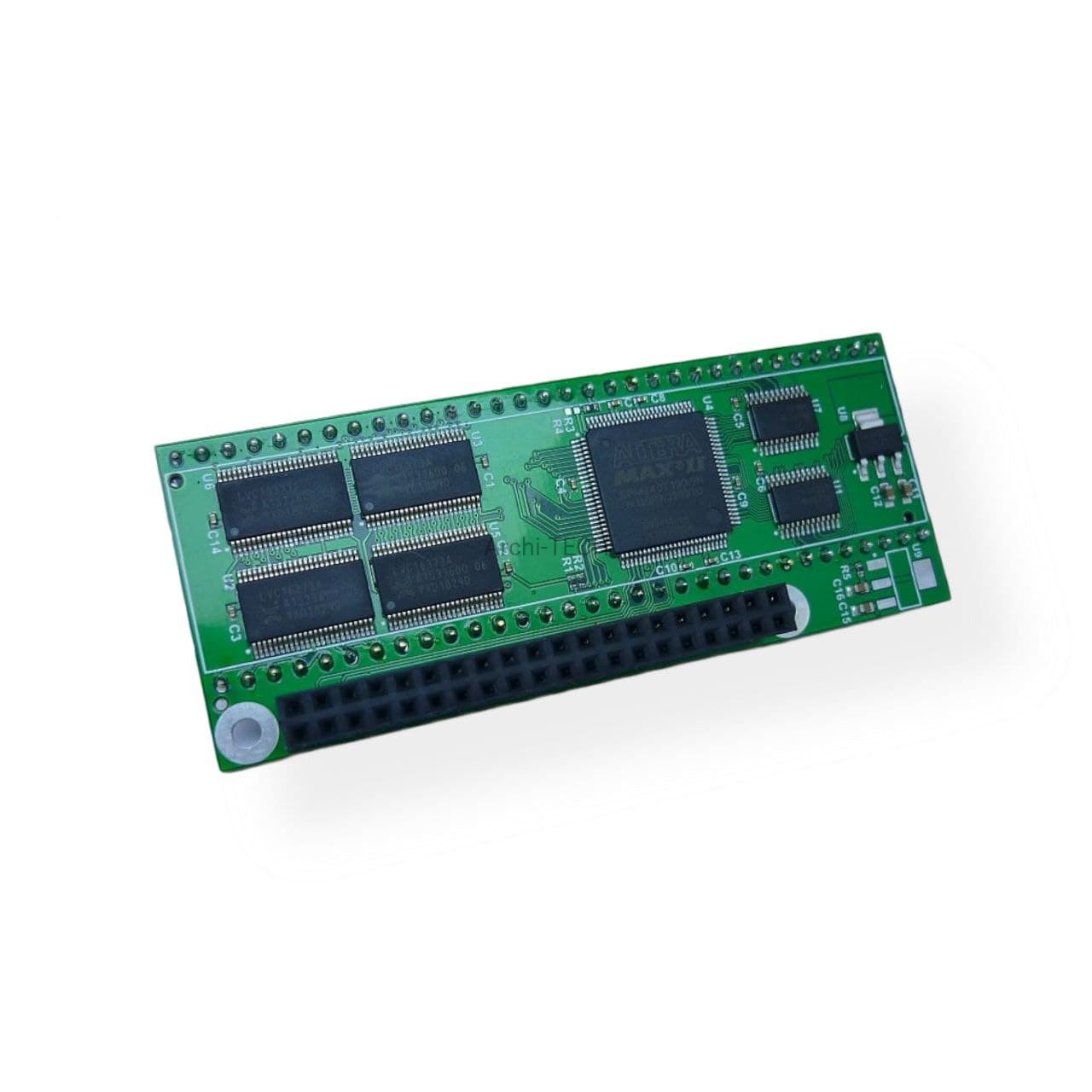

Pi-Storm for A500 A500 Plus- A2000

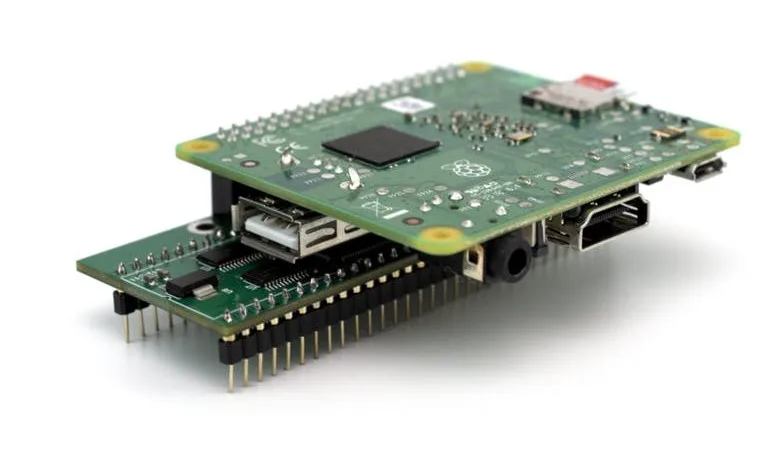

Amiga A500 PiStorm - with RASPBERRY Pi 3A+ Installed

PiStorm Adaptor Amiga A500 – A500 Plus

£41.66 Ex. VAT

PiStorm Adaptor is designed to connect to the Raspberry Pi 3A + (not included but available as an option below). Placed in the DIP64 (CPU) socket of your Amiga A500, A500 Plus or A2000 in conjunction with the Raspberry Pi, it can emulate the operation of the 68020/68030/68040 processor. The software running on PiOS greatly extends the functionality of the Amiga – adding FAST memory, RTG (graphics card) and a network card. PiStorm is designed for Amiga computers (A500 / A500 Plus / A1500 / A2000), but should work with any 16-bit computer equipped with a 68000 CPU socket (FC adapter lines are not currently used / supported by firmware and cannot be guaranteed to work properly on systems with use them). Overall performance with the current use of “Musashi” as a 68k processor emulator is around 70-80 MHz 68030.

This adapter requires:

  • Raspberry Pi model 3A
  • 32Gb SD Card configured to boot in to WB

All available as an option below

Want to know more about the PiStorm check out the following link: https://github.com/captain-amygdala/pistorm



NOTE: This is a community project and will require some knowledge Amiga. We DO NOT provide any support for getting this product running, but support is available via the following Discord channel https://discord.com/invite/j6rPtzxaNW Also this product is still in BETA and while compatibility is very high, updates are always being released to increase compatibility with software and games.

We do sell refurbished Amiga A500 and A500 Plus’s which can have a PiStorm installed tested and running. Also we can add a PiStorm installation as part of any Amiga A500 or A500 Plus Service.

We support developers and a percentage of the purchase price of the PiStorm adaptor is given to Claude Schwarz

The PiStorm adaptors are professionally manufacture and are RoHS compliant.
