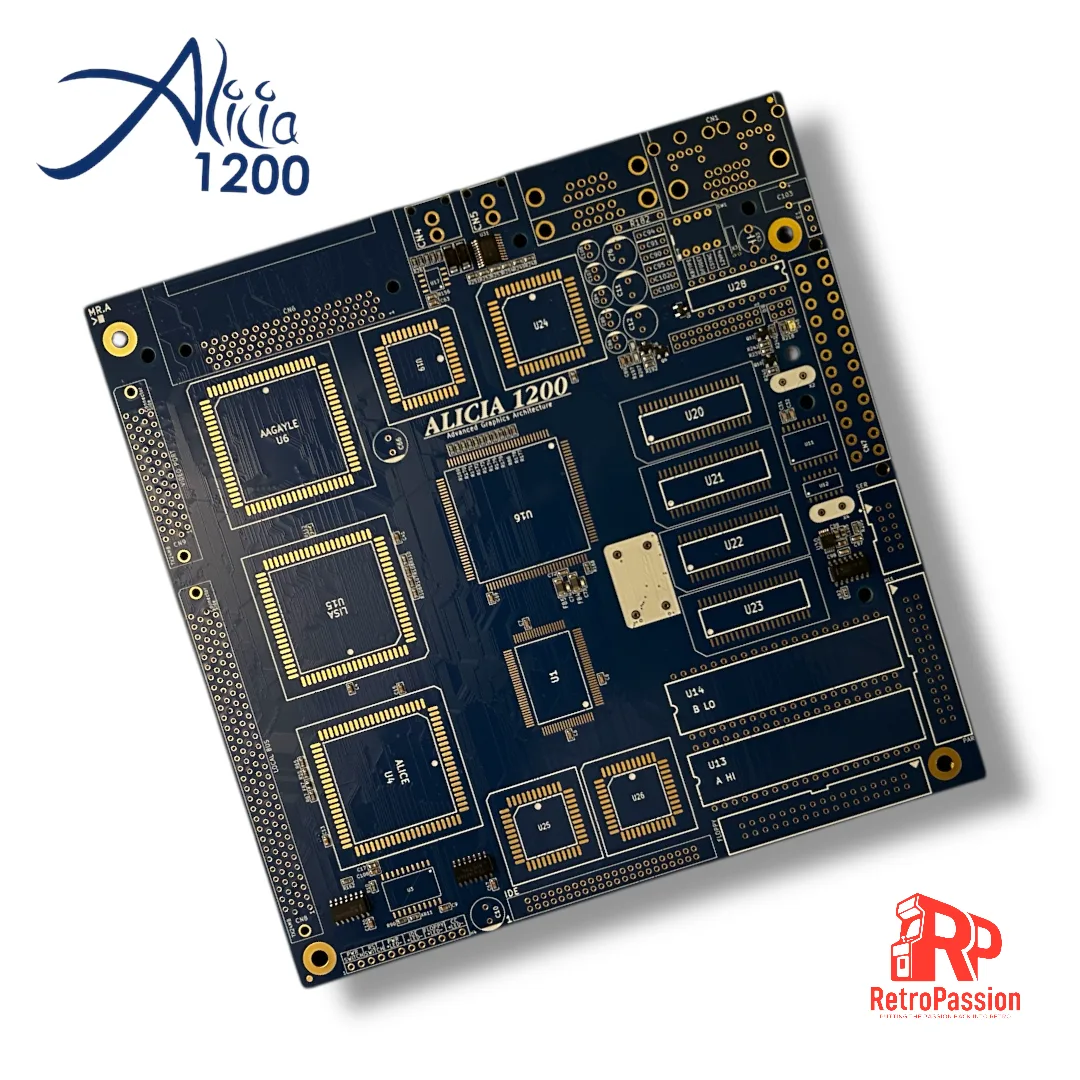

Alicia 1200 Amiga A1200 ITX Motherboard

Alicia 1200 Amiga ITX Motherboard Fully Built

Original price was: £599.99.Current price is: £499.99. Ex. VAT

Alicia 1200 is the Amiga A1200 motherboard reimagined using the ITX form factor or is also known as Mini-ITX. This form factor is direct from the PC world which means there are many case options available. This is a fully built Alicia 1200 motherboard.

The Alicia 1200 ITX motherboard provides direct access to the same ports available on the Amiga A1200 on the back of the board but also includes a DIN Keyboard and DIN Mouse ports: Below is a list of ports available on the Alicia 1200.

External Ports:

  • 1 x DB9 Joystick port
  • 1 x DB15 RGB Video port
  • 1 x VGA Port (15Khz only)
  • 2 x Phono for left and right audio
  • 1 x DB9 Serial Port
  • 1 x Parallel Port
  • 1 x Floppy Drive via internal header

Internal Ports:

  • Standard 44-pin IDE Socket
  • 22-pin Clock Port
  • A dedicated Digital/Analogue Video expansion Port (VP2) (provides for flexible future video upgrades)
  • Tornado V2 offers an 120-pin expansion bus for slim yet very powerful AGA systems.
  • PCMCIA with angled adaptor
  • Slim High Quality Adapter offering card edge support (for Amiga accelerators like PiStorm32, TF1232, ACA 1234)

Combine this with an ITX case and PSU, you will have an expandable Amiga A1200 within an ITX form factor.

What is the Tornado V2 port?

Tornado is an innovative 120-pin expansion bus containing all important signals needed to expand the system with everything from Powerful Processors with RAM and IDE, RTG Graphics adapters or Network cards

Build Service:

Like our ReAmiga A1200 build service, we will be offering fully build Alicia 1200’s where we provide all the custom chips or a donor board is supplied and we strip and recycle and install them on the Alicia 1200. More details coming soon!



This project was made possible by: Enterlogic









Build time 6-8 working weeks.

SKU: A600-Junior-Built-1 Categories: , Tags: ,
