Amiga A600 PiggyBackNot V3 RGB2HDMI
Amiga A600 PiggyBackNot V3 RGB2HDMI
Amiga A600 PiggyBackNot V3 RGB2HDMI

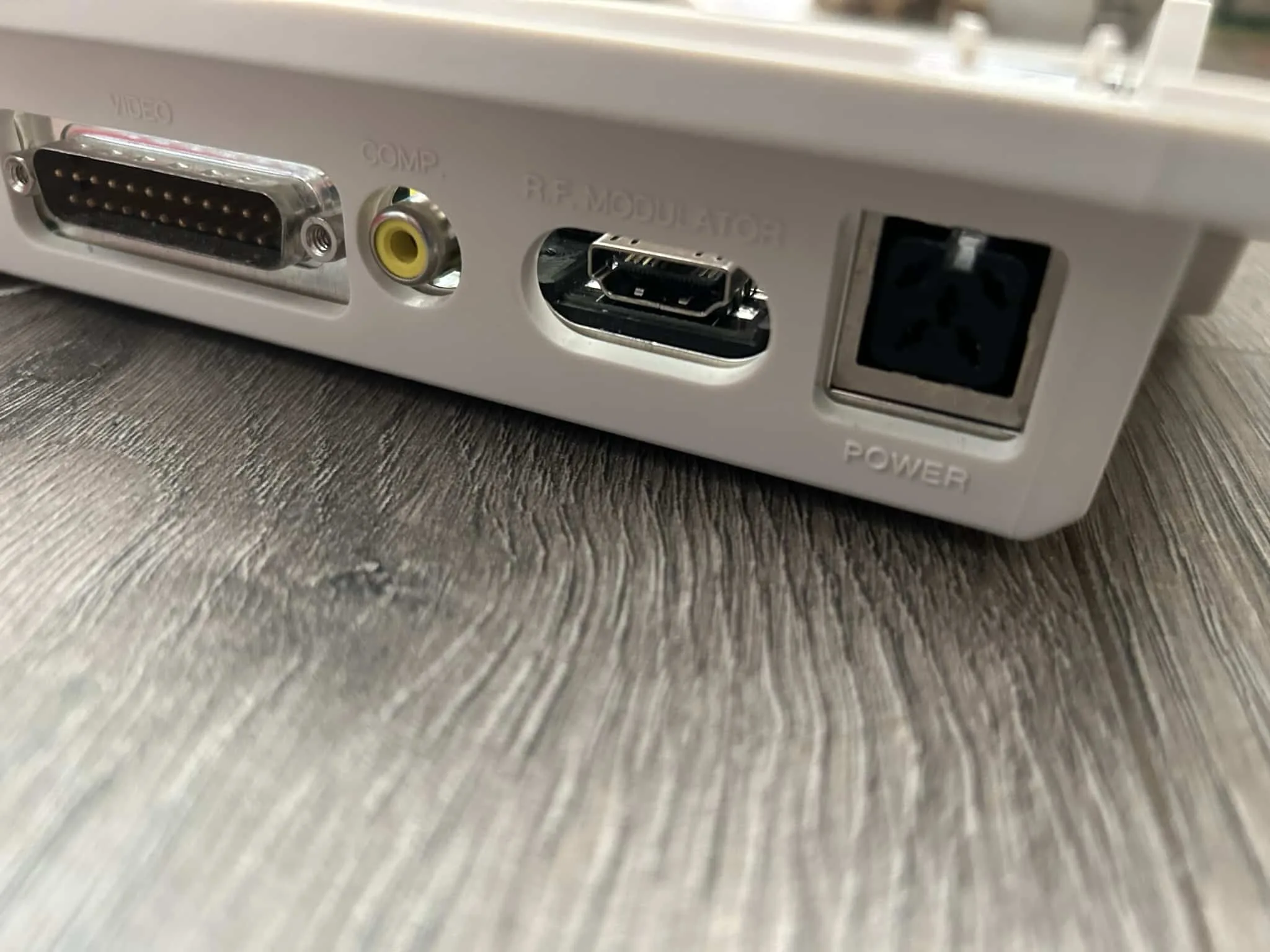

Amiga A600 PiggyBackNot V3 HDMI out

Amiga A600 PiggyBackNot RGB2HDMI 1Mb Expansion

£83.33 Ex. VAT

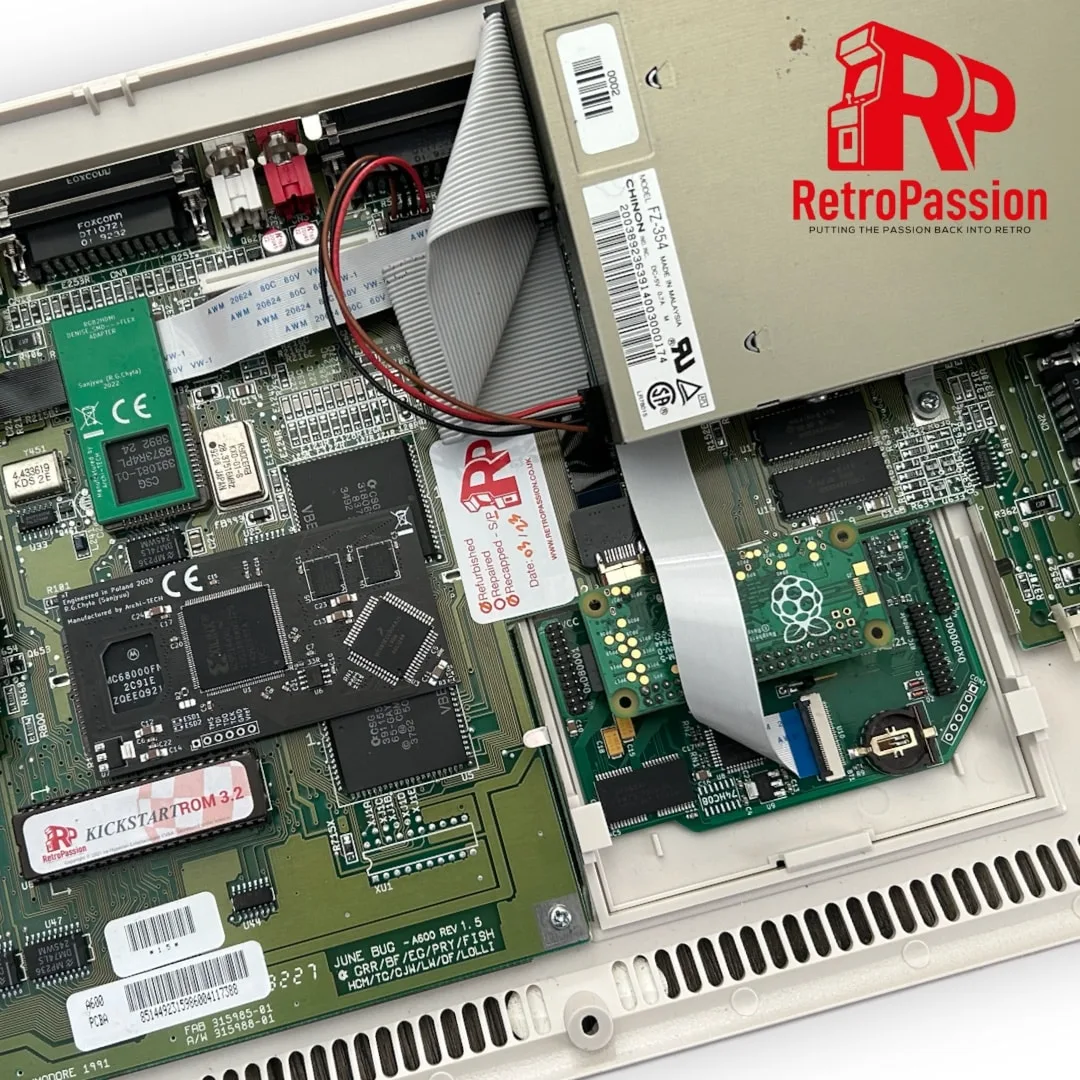

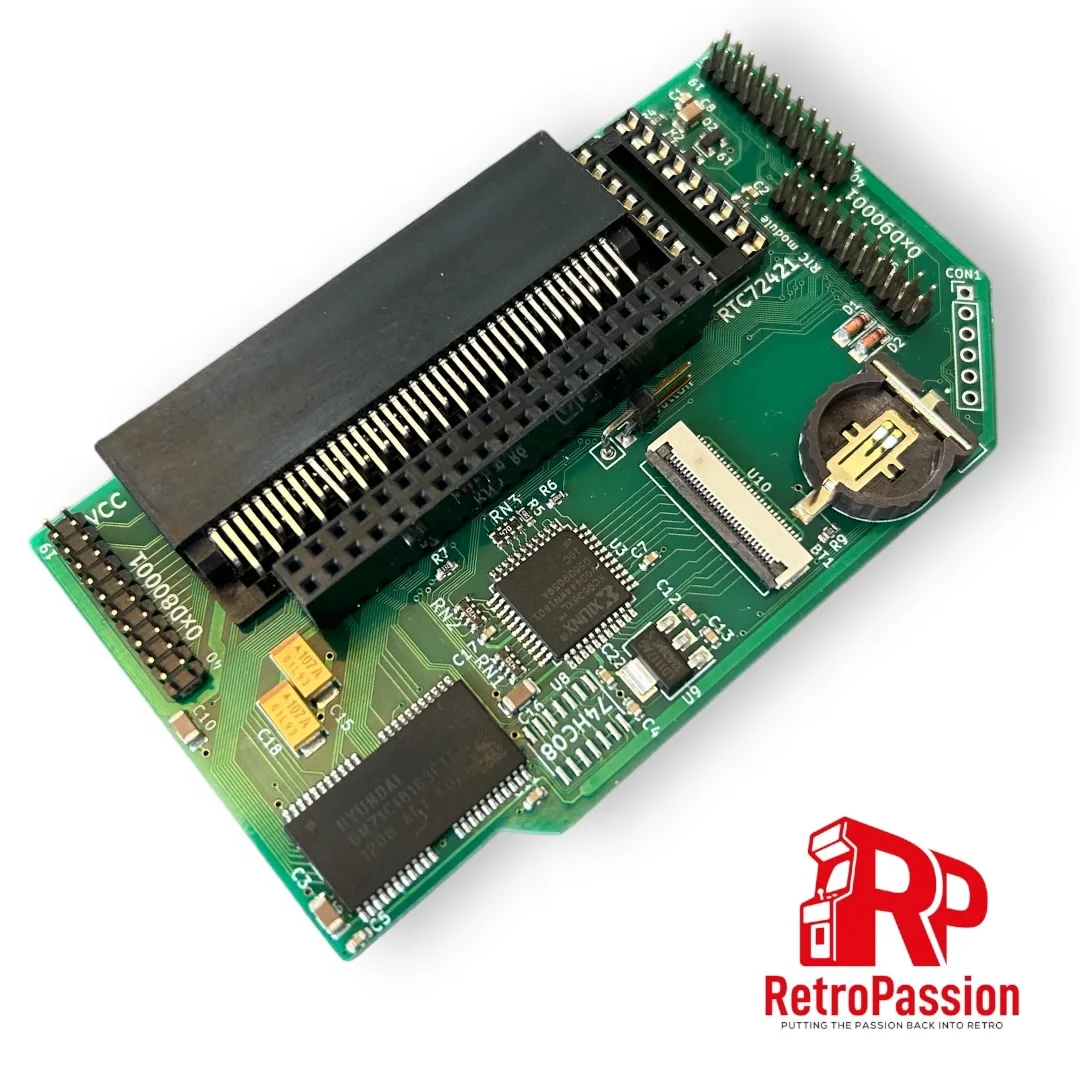

Amiga A600 PiggyBackNot V3 is an Amiga 600 trapdoor expansion that adds 1Mb Chip Ram and also integrates a RGB2HDMI circuit that then allows you to add a Raspberry Pi Zero (not included). The benefit of this upgrade is that it allows you to add a selection of upgrades that plug over the 68000 CPU, for example the 8Mb Mini Fast Ram card the xT 28Mhz, 11Mb Accelerator or the awesome A630 68030, 64Mb accelerator. So you can have HDMI output and the extra fast ram or accelerator in a very tidy package.

Specifications:

  • 1MB additional CHIP RAM
  • Implemented RGB2HDMI logics in small CPLD
  • RPI Zero connector
  • Integrated denise adapter on flex ffc cable.
  • RTC Socket (Add a Real Time Clock Chip
  • 3 x Clockports
  • Flexible mHDMI to HDMI FFC cable included!



Benefits:

  • Slim construction, No need to remove the trapdoor cover or replace with one that allows the expansion
  • Module does not interfere with fast ram cards or accelerator cards.

Not included:

  • Raspberry Pi
  • SD Card
  • 3D Printed HDMI Mount





1 Year RTB Warranty.



A600 PiggyBackNot PCB Colour will vary, Raspberry Pi Zero NOT included.



RGB2HDMI software can be downloaded from here





OUT OF STOCK

SKU: PiggyBackNotV3 Category: Tags: , , ,

Description

Amiga A600 PiggyBackNot V3 is an Amiga 600 trapdoor expansion that adds 1Mb Chip Ram and also integrates a RGB2HDMI circuit that then allows you to add a Raspberry Pi Zero (not included). The benefit of this upgrade is that it allows you to add a selection of upgrades that plug over the 68000 CPU, for example the 8Mb Mini Fast Ram card the xT 28Mhz, 11Mb Accelerator or the awesome A630 68030, 64Mb accelerator. So you can have HDMI output and the extra fast ram or accelerator in a very tidy package.

Specifications:

  • 1MB additional CHIP RAM
  • Implemented RGB2HDMI logics in small CPLD
  • RPI Zero connector
  • Integrated denise adapter on flex ffc cable.
  • RTC Socket (Add a Real Time Clock Chip
  • 3 x Clockports
  • Flexible mHDMI to HDMI FFC cable included!
  • 3D Printed HDMI mount included! (modulator removal required)
  • SD Card with RGB2HDMI software preloaded, simply plug it in to the RPi Zero SD card slot.



Benefits:

  • Slim construction, need to remove the trapdoor cover or replace with one that allows the expansion
  • Module does not interfere with fast ram cards or accelerator cards.







1 Year RTB Warranty.



A600 PiggyBackNot PCB Colour will vary, Raspberry Pi Zero NOT included.

Additional information

Weight 0.100 kg
Dimensions 6 × 5 × 1 cm
Extra shipping insurance

Insured up to £100

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Product FAQ

This Product have no Question..!
